Инструменты для сверления | CoroDrill® 860

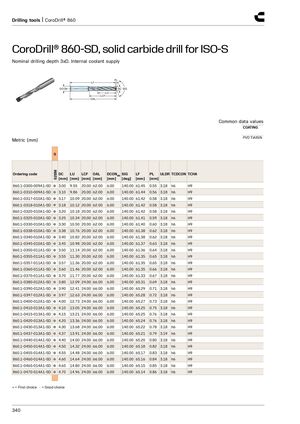

CoroDrill® 860-SD, сверло из цельного твердого сплава для ISO-S
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
| Общие значения данных | |
|---|---|
| Покрытие | PVD TiAlSiN |
| Код заказа | S | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0300-009A1-SD | ● | 3.00 | 9.55 | 20.00 | 62.00 | 6.00 | 140.00 | 61.45 | 0.55 | 3.18 | h6 | H9 |
| 860.1-0310-009A1-SD | ● | 3.10 | 9.86 | 20.00 | 62.00 | 6.00 | 140.00 | 61.44 | 0.56 | 3.18 | h6 | H9 |
| 860.1-0317-010A1-SD | ● | 3.17 | 10.09 | 20.00 | 62.00 | 6.00 | 140.00 | 61.42 | 0.58 | 3.18 | h6 | H9 |
| 860.1-0318-010A1-SD | ● | 3.18 | 10.12 | 20.00 | 62.00 | 6.00 | 140.00 | 61.42 | 0.58 | 3.18 | h6 | H9 |
| 860.1-0320-010A1-SD | ● | 3.20 | 10.18 | 20.00 | 62.00 | 6.00 | 140.00 | 61.42 | 0.58 | 3.18 | h6 | H9 |
| 860.1-0325-010A1-SD | ● | 3.25 | 10.34 | 20.00 | 62.00 | 6.00 | 140.00 | 61.41 | 0.59 | 3.18 | h6 | H9 |
| 860.1-0330-010A1-SD | ● | 3.30 | 10.50 | 20.00 | 62.00 | 6.00 | 140.00 | 61.40 | 0.60 | 3.18 | h6 | H9 |
| 860.1-0338-010A1-SD | ● | 3.38 | 10.76 | 20.00 | 62.00 | 6.00 | 140.00 | 61.38 | 0.62 | 3.18 | h6 | H9 |
| 860.1-0340-010A1-SD | ● | 3.40 | 10.82 | 20.00 | 62.00 | 6.00 | 140.00 | 61.38 | 0.62 | 3.18 | h6 | H9 |
| 860.1-0345-010A1-SD | ● | 3.45 | 10.98 | 20.00 | 62.00 | 6.00 | 140.00 | 61.37 | 0.63 | 3.18 | h6 | H9 |
| 860.1-0350-011A1-SD | ● | 3.50 | 11.14 | 20.00 | 62.00 | 6.00 | 140.00 | 61.36 | 0.64 | 3.18 | h6 | H9 |
| 860.1-0355-011A1-SD | ● | 3.55 | 11.30 | 20.00 | 62.00 | 6.00 | 140.00 | 61.35 | 0.65 | 3.18 | h6 | H9 |
| 860.1-0357-011A1-SD | ● | 3.57 | 11.36 | 20.00 | 62.00 | 6.00 | 140.00 | 61.35 | 0.65 | 3.18 | h6 | H9 |
| 860.1-0360-011A1-SD | ● | 3.60 | 11.46 | 20.00 | 62.00 | 6.00 | 140.00 | 61.35 | 0.66 | 3.18 | h6 | H9 |
| 860.1-0370-011A1-SD | ● | 3.70 | 11.77 | 20.00 | 62.00 | 6.00 | 140.00 | 61.33 | 0.67 | 3.18 | h6 | H9 |
| 860.1-0380-012A1-SD | ● | 3.80 | 12.09 | 24.00 | 66.00 | 6.00 | 140.00 | 65.31 | 0.69 | 3.18 | h6 | H9 |
| 860.1-0390-012A1-SD | ● | 3.90 | 12.41 | 24.00 | 66.00 | 6.00 | 140.00 | 65.29 | 0.71 | 3.18 | h6 | H9 |
| 860.1-0397-012A1-SD | ● | 3.97 | 12.63 | 24.00 | 66.00 | 6.00 | 140.00 | 65.28 | 0.72 | 3.18 | h6 | H9 |
| 860.1-0400-012A1-SD | ● | 4.00 | 12.73 | 24.00 | 66.00 | 6.00 | 140.00 | 65.27 | 0.73 | 3.18 | h6 | H9 |
| 860.1-0410-013A1-SD | ● | 4.10 | 13.05 | 24.00 | 66.00 | 6.00 | 140.00 | 65.25 | 0.75 | 3.18 | h6 | H9 |
| 860.1-0415-013A1-SD | ● | 4.15 | 13.21 | 24.00 | 66.00 | 6.00 | 140.00 | 65.25 | 0.76 | 3.18 | h6 | H9 |
| 860.1-0420-013A1-SD | ● | 4.20 | 13.36 | 24.00 | 66.00 | 6.00 | 140.00 | 65.24 | 0.76 | 3.18 | h6 | H9 |
| 860.1-0430-013A1-SD | ● | 4.30 | 13.68 | 24.00 | 66.00 | 6.00 | 140.00 | 65.22 | 0.78 | 3.18 | h6 | H9 |
| 860.1-0437-013A1-SD | ● | 4.37 | 13.91 | 24.00 | 66.00 | 6.00 | 140.00 | 65.21 | 0.79 | 3.19 | h6 | H9 |
| 860.1-0440-014A1-SD | ● | 4.40 | 14.00 | 24.00 | 66.00 | 6.00 | 140.00 | 65.20 | 0.80 | 3.18 | h6 | H9 |
| 860.1-0450-014A1-SD | ● | 4.50 | 14.32 | 24.00 | 66.00 | 6.00 | 140.00 | 65.18 | 0.82 | 3.18 | h6 | H9 |
| 860.1-0455-014A1-SD | ● | 4.55 | 14.48 | 24.00 | 66.00 | 6.00 | 140.00 | 65.17 | 0.83 | 3.18 | h6 | H9 |
| 860.1-0460-014A1-SD | ● | 4.60 | 14.64 | 24.00 | 66.00 | 6.00 | 140.00 | 65.16 | 0.84 | 3.18 | h6 | H9 |
| 860.1-0465-014A1-SD | ● | 4.65 | 14.80 | 24.00 | 66.00 | 6.00 | 140.00 | 65.15 | 0.85 | 3.18 | h6 | H9 |
| 860.1-0470-014A1-SD | ● | 4.70 | 14.96 | 24.00 | 66.00 | 6.00 | 140.00 | 65.14 | 0.86 | 3.18 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
