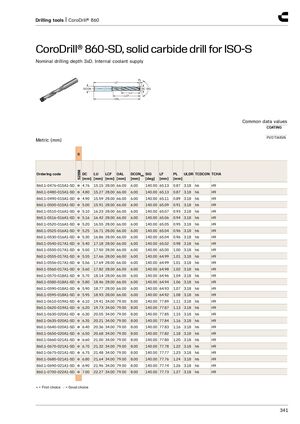

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-SD, сверло из цельного твердого сплава для ISO-S
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
| Общие значения данных | |
|---|---|
| Покрытие | PVD TiAlSiN |
| Код заказа | S | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0476-015A1-SD | ● | 4.76 | 15.15 | 28.00 | 66.00 | 6.00 | 140.00 | 65.13 | 0.87 | 3.18 | h6 | H9 |
| 860.1-0480-015A1-SD | ● | 4.80 | 15.27 | 28.00 | 66.00 | 6.00 | 140.00 | 65.13 | 0.87 | 3.18 | h6 | H9 |
| 860.1-0490-015A1-SD | ● | 4.90 | 15.59 | 28.00 | 66.00 | 6.00 | 140.00 | 65.11 | 0.89 | 3.18 | h6 | H9 |
| 860.1-0500-015A1-SD | ● | 5.00 | 15.91 | 28.00 | 66.00 | 6.00 | 140.00 | 65.09 | 0.91 | 3.18 | h6 | H9 |
| 860.1-0510-016A1-SD | ● | 5.10 | 16.23 | 28.00 | 66.00 | 6.00 | 140.00 | 65.07 | 0.93 | 3.18 | h6 | H9 |
| 860.1-0516-016A1-SD | ● | 5.16 | 16.42 | 28.00 | 66.00 | 6.00 | 140.00 | 65.06 | 0.94 | 3.18 | h6 | H9 |
| 860.1-0520-016A1-SD | ● | 5.20 | 16.55 | 28.00 | 66.00 | 6.00 | 140.00 | 65.05 | 0.95 | 3.18 | h6 | H9 |
| 860.1-0525-016A1-SD | ● | 5.25 | 16.71 | 28.00 | 66.00 | 6.00 | 140.00 | 65.04 | 0.96 | 3.18 | h6 | H9 |
| 860.1-0530-016A1-SD | ● | 5.30 | 16.86 | 28.00 | 66.00 | 6.00 | 140.00 | 65.04 | 0.96 | 3.18 | h6 | H9 |
| 860.1-0540-017A1-SD | ● | 5.40 | 17.18 | 28.00 | 66.00 | 6.00 | 140.00 | 65.02 | 0.98 | 3.18 | h6 | H9 |
| 860.1-0550-017A1-SD | ● | 5.50 | 17.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.18 | h6 | H9 |
| 860.1-0555-017A1-SD | ● | 5.55 | 17.66 | 28.00 | 66.00 | 6.00 | 140.00 | 64.99 | 1.01 | 3.18 | h6 | H9 |
| 860.1-0556-017A1-SD | ● | 5.56 | 17.69 | 28.00 | 66.00 | 6.00 | 140.00 | 64.99 | 1.01 | 3.18 | h6 | H9 |
| 860.1-0560-017A1-SD | ● | 5.60 | 17.82 | 28.00 | 66.00 | 6.00 | 140.00 | 64.98 | 1.02 | 3.18 | h6 | H9 |
| 860.1-0570-018A1-SD | ● | 5.70 | 18.14 | 28.00 | 66.00 | 6.00 | 140.00 | 64.96 | 1.04 | 3.18 | h6 | H9 |
| 860.1-0580-018A1-SD | ● | 5.80 | 18.46 | 28.00 | 66.00 | 6.00 | 140.00 | 64.94 | 1.06 | 3.18 | h6 | H9 |
| 860.1-0590-018A1-SD | ● | 5.90 | 18.77 | 28.00 | 66.00 | 6.00 | 140.00 | 64.93 | 1.07 | 3.18 | h6 | H9 |
| 860.1-0595-018A1-SD | ● | 5.95 | 18.93 | 28.00 | 66.00 | 6.00 | 140.00 | 64.92 | 1.08 | 3.18 | h6 | H9 |
| 860.1-0610-019A1-SD | ● | 6.10 | 19.41 | 34.00 | 79.00 | 8.00 | 140.00 | 77.89 | 1.11 | 3.18 | h6 | H9 |
| 860.1-0620-019A1-SD | ● | 6.20 | 19.73 | 34.00 | 79.00 | 8.00 | 140.00 | 77.87 | 1.13 | 3.18 | h6 | H9 |
| 860.1-0630-020A1-SD | ● | 6.30 | 20.05 | 34.00 | 79.00 | 8.00 | 140.00 | 77.85 | 1.15 | 3.18 | h6 | H9 |
| 860.1-0635-020A1-SD | ● | 6.35 | 20.21 | 34.00 | 79.00 | 8.00 | 140.00 | 77.84 | 1.16 | 3.18 | h6 | H9 |
| 860.1-0640-020A1-SD | ● | 6.40 | 20.36 | 34.00 | 79.00 | 8.00 | 140.00 | 77.83 | 1.16 | 3.18 | h6 | H9 |
| 860.1-0650-020A1-SD | ● | 6.50 | 20.68 | 34.00 | 79.00 | 8.00 | 140.00 | 77.82 | 1.18 | 3.18 | h6 | H9 |
| 860.1-0660-021A1-SD | ● | 6.60 | 21.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.80 | 1.20 | 3.18 | h6 | H9 |
| 860.1-0670-021A1-SD | ● | 6.70 | 21.32 | 34.00 | 79.00 | 8.00 | 140.00 | 77.78 | 1.22 | 3.18 | h6 | H9 |
| 860.1-0675-021A1-SD | ● | 6.75 | 21.48 | 34.00 | 79.00 | 8.00 | 140.00 | 77.77 | 1.23 | 3.18 | h6 | H9 |
| 860.1-0680-021A1-SD | ● | 6.80 | 21.64 | 34.00 | 79.00 | 8.00 | 140.00 | 77.76 | 1.24 | 3.18 | h6 | H9 |
| 860.1-0690-021A1-SD | ● | 6.90 | 21.96 | 34.00 | 79.00 | 8.00 | 140.00 | 77.74 | 1.26 | 3.18 | h6 | H9 |
| 860.1-0700-022A1-SD | ● | 7.00 | 22.27 | 34.00 | 79.00 | 8.00 | 140.00 | 77.73 | 1.27 | 3.18 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
