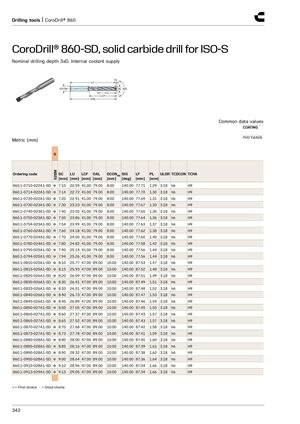

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-SD, сверло из цельного твердого сплава для ISO-S
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
| Общие значения данных | |
|---|---|
| Покрытие | PVD TiAlSiN |
| Код заказа | S | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0710-022A1-SD | ● | 7.10 | 22.59 | 41.00 | 79.00 | 8.00 | 140.00 | 77.71 | 1.29 | 3.18 | h6 | H9 |
| 860.1-0714-022A1-SD | ● | 7.14 | 22.72 | 41.00 | 79.00 | 8.00 | 140.00 | 77.70 | 1.30 | 3.18 | h6 | H9 |
| 860.1-0720-022A1-SD | ● | 7.20 | 22.91 | 41.00 | 79.00 | 8.00 | 140.00 | 77.69 | 1.31 | 3.18 | h6 | H9 |
| 860.1-0730-023A1-SD | ● | 7.30 | 23.23 | 41.00 | 79.00 | 8.00 | 140.00 | 77.67 | 1.33 | 3.18 | h6 | H9 |
| 860.1-0740-023A1-SD | ● | 7.40 | 23.55 | 41.00 | 79.00 | 8.00 | 140.00 | 77.65 | 1.35 | 3.18 | h6 | H9 |
| 860.1-0750-023A1-SD | ● | 7.50 | 23.86 | 41.00 | 79.00 | 8.00 | 140.00 | 77.64 | 1.36 | 3.18 | h6 | H9 |
| 860.1-0754-023A1-SD | ● | 7.54 | 23.99 | 41.00 | 79.00 | 8.00 | 140.00 | 77.63 | 1.37 | 3.18 | h6 | H9 |
| 860.1-0760-024A1-SD | ● | 7.60 | 24.18 | 41.00 | 79.00 | 8.00 | 140.00 | 77.62 | 1.38 | 3.18 | h6 | H9 |
| 860.1-0770-024A1-SD | ● | 7.70 | 24.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.60 | 1.40 | 3.18 | h6 | H9 |
| 860.1-0780-024A1-SD | ● | 7.80 | 24.82 | 41.00 | 79.00 | 8.00 | 140.00 | 77.58 | 1.42 | 3.18 | h6 | H9 |
| 860.1-0790-025A1-SD | ● | 7.90 | 25.14 | 41.00 | 79.00 | 8.00 | 140.00 | 77.56 | 1.44 | 3.18 | h6 | H9 |
| 860.1-0794-025A1-SD | ● | 7.94 | 25.26 | 41.00 | 79.00 | 8.00 | 140.00 | 77.56 | 1.44 | 3.18 | h6 | H9 |
| 860.1-0810-025A1-SD | ● | 8.10 | 25.77 | 47.00 | 89.00 | 10.00 | 140.00 | 87.53 | 1.47 | 3.18 | h6 | H9 |
| 860.1-0815-025A1-SD | ● | 8.15 | 25.93 | 47.00 | 89.00 | 10.00 | 140.00 | 87.52 | 1.48 | 3.18 | h6 | H9 |
| 860.1-0820-026A1-SD | ● | 8.20 | 26.09 | 47.00 | 89.00 | 10.00 | 140.00 | 87.51 | 1.49 | 3.18 | h6 | H9 |
| 860.1-0830-026A1-SD | ● | 8.30 | 26.41 | 47.00 | 89.00 | 10.00 | 140.00 | 87.49 | 1.51 | 3.18 | h6 | H9 |
| 860.1-0833-026A1-SD | ● | 8.33 | 26.51 | 47.00 | 89.00 | 10.00 | 140.00 | 87.48 | 1.52 | 3.18 | h6 | H9 |
| 860.1-0840-026A1-SD | ● | 8.40 | 26.73 | 47.00 | 89.00 | 10.00 | 140.00 | 87.47 | 1.53 | 3.18 | h6 | H9 |
| 860.1-0845-026A1-SD | ● | 8.45 | 26.89 | 47.00 | 89.00 | 10.00 | 140.00 | 87.46 | 1.54 | 3.18 | h6 | H9 |
| 860.1-0850-027A1-SD | ● | 8.50 | 27.05 | 47.00 | 89.00 | 10.00 | 140.00 | 87.45 | 1.55 | 3.18 | h6 | H9 |
| 860.1-0860-027A1-SD | ● | 8.60 | 27.37 | 47.00 | 89.00 | 10.00 | 140.00 | 87.43 | 1.57 | 3.18 | h6 | H9 |
| 860.1-0865-027A1-SD | ● | 8.65 | 27.52 | 47.00 | 89.00 | 10.00 | 140.00 | 87.43 | 1.57 | 3.18 | h6 | H9 |
| 860.1-0870-027A1-SD | ● | 8.70 | 27.68 | 47.00 | 89.00 | 10.00 | 140.00 | 87.42 | 1.58 | 3.18 | h6 | H9 |
| 860.1-0873-027A1-SD | ● | 8.73 | 27.78 | 47.00 | 89.00 | 10.00 | 140.00 | 87.41 | 1.59 | 3.18 | h6 | H9 |
| 860.1-0880-028A1-SD | ● | 8.80 | 28.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.40 | 1.60 | 3.18 | h6 | H9 |
| 860.1-0885-028A1-SD | ● | 8.85 | 28.16 | 47.00 | 89.00 | 10.00 | 140.00 | 87.39 | 1.61 | 3.18 | h6 | H9 |
| 860.1-0890-028A1-SD | ● | 8.90 | 28.32 | 47.00 | 89.00 | 10.00 | 140.00 | 87.38 | 1.62 | 3.18 | h6 | H9 |
| 860.1-0900-028A1-SD | ● | 9.00 | 28.64 | 47.00 | 89.00 | 10.00 | 140.00 | 87.36 | 1.64 | 3.18 | h6 | H9 |
| 860.1-0910-028A1-SD | ● | 9.10 | 28.96 | 47.00 | 89.00 | 10.00 | 140.00 | 87.34 | 1.66 | 3.18 | h6 | H9 |
| 860.1-0913-029A1-SD | ● | 9.13 | 29.05 | 47.00 | 89.00 | 10.00 | 140.00 | 87.34 | 1.66 | 3.18 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
