Инструменты для сверления | CoroDrill® 860

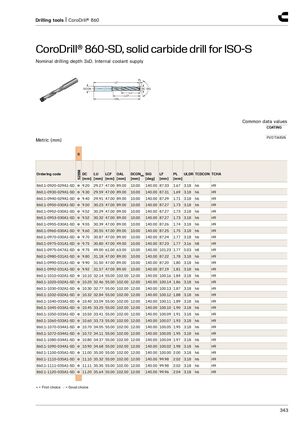

CoroDrill® 860-SD, сверло из твердого сплава для ISO-S

Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.

Общие значения
ПОКРЫТИЕ: PVD TiAlSiN

Метрическая (мм). Группа применения: S (S2BM).

● = Первый выбор, ○ = Хороший выбор.
