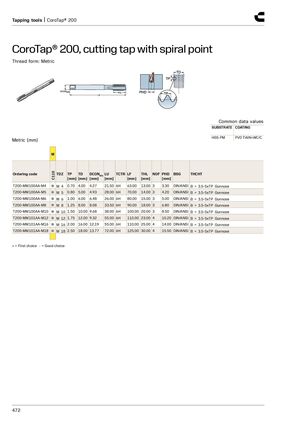

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик со спиральной заточкой
Форма резьбы: метрическая
Общие значения данных
SUBSTRATE COATING
HSS-PM PVD TiAlN+WC/C
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-MM100AA-M4 ● | M 4 | 0.70 | 4.00 | 4.27 | 21.50 | 6H | 63.00 | 13.00 | 3 | 3.30 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM100AA-M5 ● | M 5 | 0.80 | 5.00 | 4.93 | 28.00 | 6H | 70.00 | 14.00 | 3 | 4.20 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM100AA-M6 ● | M 6 | 1.00 | 6.00 | 6.48 | 26.00 | 6H | 80.00 | 15.00 | 3 | 5.00 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM100AA-M8 ● | M 8 | 1.25 | 8.00 | 8.08 | 33.50 | 6H | 90.00 | 18.00 | 3 | 6.80 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM100AA-M10 ● | M 10 | 1.50 | 10.00 | 9.68 | 38.00 | 6H | 100.00 | 20.00 | 3 | 8.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM101AA-M12 ● | M 12 | 1.75 | 12.00 | 9.32 | 55.00 | 6H | 110.00 | 23.00 | 4 | 10.20 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM101AA-M16 ● | M 16 | 2.00 | 16.00 | 12.19 | 55.00 | 6H | 110.00 | 25.00 | 4 | 14.00 | DIN/ANSI | B = 3.5-5xTP Gunnose |
| T200-MM101AA-M18 ● | M 18 | 2.50 | 18.00 | 13.77 | 72.00 | 6H | 125.00 | 30.00 | 4 | 15.50 | DIN/ANSI | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
