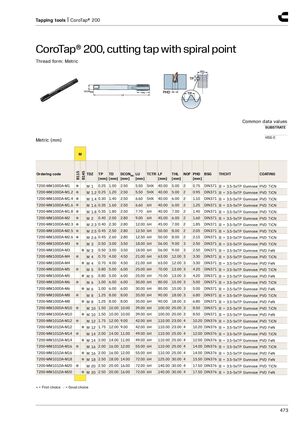

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик со спиральной заточкой
Форма резьбы: метрическая
Общие значения данных
SUBSTRATE: HSS-E
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | COATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-MM100DA-M1 ● | M 1 | 0.25 | 1.00 | 2.50 | 5.50 | 5HX | 40.00 | 5.00 | 2 | 0.75 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M1.2 ● | M 1.2 | 0.25 | 1.20 | 2.50 | 5.50 | 5HX | 40.00 | 5.00 | 2 | 0.95 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M1.4 ● | M 1.4 | 0.30 | 1.40 | 2.50 | 6.60 | 5HX | 40.00 | 6.00 | 2 | 1.10 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M1.6 ● | M 1.6 | 0.35 | 1.60 | 2.50 | 6.60 | 6H | 40.00 | 6.00 | 2 | 1.25 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M1.8 ● | M 1.8 | 0.35 | 1.80 | 2.50 | 7.70 | 6H | 40.00 | 7.00 | 2 | 1.45 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M2 ● | M 2 | 0.40 | 2.00 | 2.80 | 9.00 | 6H | 45.00 | 6.00 | 2 | 1.60 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M2.3 ● | M 2.3 | 0.40 | 2.30 | 2.80 | 12.00 | 6H | 45.00 | 7.00 | 2 | 1.85 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M2.5 ● | M 2.5 | 0.45 | 2.50 | 2.80 | 12.50 | 6H | 50.00 | 8.00 | 2 | 2.05 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M2.6 ● | M 2.6 | 0.45 | 2.60 | 2.80 | 12.50 | 6H | 50.00 | 8.00 | 2 | 2.15 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M3 ● | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H | 56.00 | 9.00 | 3 | 2.50 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M3 ● | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H | 56.00 | 9.00 | 3 | 2.50 | DIN371 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM100DA-M4 ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6H | 63.00 | 12.00 | 3 | 3.30 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M4 ● | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6H | 63.00 | 12.00 | 3 | 3.30 | DIN371 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM100DA-M5 ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6H | 70.00 | 13.00 | 3 | 4.20 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M5 ● | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6H | 70.00 | 13.00 | 3 | 4.20 | DIN371 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM100DA-M6 ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6H | 80.00 | 15.00 | 3 | 5.00 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M6 ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6H | 80.00 | 15.00 | 3 | 5.00 | DIN371 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM100DA-M8 ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6H | 90.00 | 18.00 | 3 | 6.80 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M8 ● | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6H | 90.00 | 18.00 | 3 | 6.80 | DIN371 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM100DA-M10 ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6H | 100.00 | 20.00 | 3 | 8.50 | DIN371 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM100DA-M10 ● | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6H | 100.00 | 20.00 | 3 | 8.50 | DIN371 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM101DA-M12 ● | M 12 | 1.75 | 12.00 | 9.00 | 42.00 | 6H | 110.00 | 23.00 | 4 | 10.20 | DIN376 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM101DA-M12 ● | M 12 | 1.75 | 12.00 | 9.00 | 42.00 | 6H | 110.00 | 23.00 | 4 | 10.20 | DIN376 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM101DA-M14 ● | M 14 | 2.00 | 14.00 | 11.00 | 49.00 | 6H | 110.00 | 25.00 | 4 | 12.00 | DIN376 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM101DA-M14 ● | M 14 | 2.00 | 14.00 | 11.00 | 49.00 | 6H | 110.00 | 25.00 | 4 | 12.00 | DIN376 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM101DA-M16 ● | M 16 | 2.00 | 16.00 | 12.00 | 55.00 | 6H | 110.00 | 25.00 | 4 | 14.00 | DIN376 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM101DA-M16 ● | M 16 | 2.00 | 16.00 | 12.00 | 55.00 | 6H | 110.00 | 25.00 | 4 | 14.00 | DIN376 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM101DA-M18 ● | M 18 | 2.50 | 18.00 | 14.00 | 72.00 | 6H | 125.00 | 30.00 | 4 | 15.50 | DIN376 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM101DA-M20 ● | M 20 | 2.50 | 20.00 | 16.00 | 72.00 | 6H | 140.00 | 30.00 | 4 | 17.50 | DIN376 | B = 3.5-5xTP Gunnose | PVD TiCN |
| T200-MM101DA-M20 ● | M 20 | 2.50 | 20.00 | 16.00 | 72.00 | 6H | 140.00 | 30.00 | 4 | 17.50 | DIN376 | B = 3.5-5xTP Gunnose | PVD FeN |
● = Первый выбор ○ = Хороший выбор
