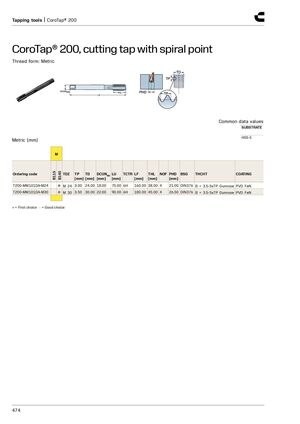

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: Метрическая
Общие параметры: ОСНОВА — HSS-E
Метрическая (мм): M, B115, B145
| Код заказа | Выбор | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | Покрытие |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-MM101DA-M24 | ● | M 24 | 3.00 | 24.00 | 18.00 | 75.00 | 6H | 160.00 | 38.00 | 4 | 21.00 | DIN376 | B = 3.5-5xTP Gunnose | PVD FeN |
| T200-MM101DA-M30 | ● | M 30 | 3.50 | 30.00 | 22.00 | 90.00 | 6H | 180.00 | 45.00 | 4 | 26.50 | DIN376 | B = 3.5-5xTP Gunnose | PVD FeN |
● = Первый выбор ○ = Хороший выбор
