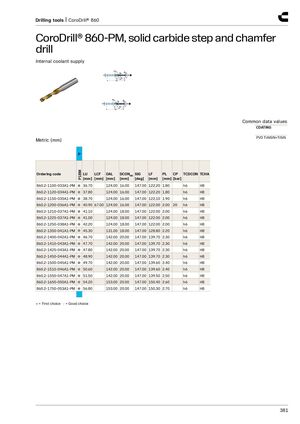

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-PM, сверло из твёрдого сплава для ступенчатого сверления и снятия фасок
Внутренняя подача СОЖ
| Общие значения | |
|---|---|
| Покрытие | PVD TiAlSiN+TiSiN |
Метрическая система (мм)
P, P1BM
| Код заказа | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|
| 860.2-1100-033A1-PM ● | 36.70 | 67.00 | 124.00 | 16.00 | 147.00 | 122.20 | 1.80 | 20 | h6 | H8 |
| 860.2-1120-034A1-PM ● | 37.80 | 67.00 | 124.00 | 16.00 | 147.00 | 122.20 | 1.80 | 20 | h6 | H8 |
| 860.2-1150-035A1-PM ● | 38.70 | 67.00 | 124.00 | 16.00 | 147.00 | 122.10 | 1.90 | 20 | h6 | H8 |
| 860.2-1200-036A1-PM ● | 40.90 | 67.00 | 124.00 | 16.00 | 147.00 | 122.00 | 2.00 | 20 | h6 | H8 |
| 860.2-1210-037A1-PM ● | 41.10 | 67.00 | 124.00 | 18.00 | 147.00 | 122.00 | 2.00 | 20 | h6 | H8 |
| 860.2-1225-037A1-PM ● | 41.00 | 67.00 | 124.00 | 18.00 | 147.00 | 122.00 | 2.00 | 20 | h6 | H8 |
| 860.2-1250-038A1-PM ● | 42.20 | 67.00 | 124.00 | 18.00 | 147.00 | 122.00 | 2.00 | 20 | h6 | H8 |
| 860.2-1350-041A1-PM ● | 45.30 | 67.00 | 131.00 | 18.00 | 147.00 | 128.80 | 2.20 | 20 | h6 | H8 |
| 860.2-1400-042A1-PM ● | 46.70 | 67.00 | 142.00 | 20.00 | 147.00 | 139.70 | 2.30 | 20 | h6 | H8 |
| 860.2-1410-043A1-PM ● | 47.70 | 67.00 | 142.00 | 20.00 | 147.00 | 139.70 | 2.30 | 20 | h6 | H8 |
| 860.2-1425-043A1-PM ● | 47.80 | 67.00 | 142.00 | 20.00 | 147.00 | 139.70 | 2.30 | 20 | h6 | H8 |
| 860.2-1450-044A1-PM ● | 48.90 | 67.00 | 142.00 | 20.00 | 147.00 | 139.70 | 2.30 | 20 | h6 | H8 |
| 860.2-1500-045A1-PM ● | 49.70 | 67.00 | 142.00 | 20.00 | 147.00 | 139.60 | 2.40 | 20 | h6 | H8 |
| 860.2-1510-046A1-PM ● | 50.60 | 67.00 | 142.00 | 20.00 | 147.00 | 139.60 | 2.40 | 20 | h6 | H8 |
| 860.2-1550-047A1-PM ● | 51.50 | 67.00 | 142.00 | 20.00 | 147.00 | 139.50 | 2.50 | 20 | h6 | H8 |
| 860.2-1650-050A1-PM ● | 54.20 | 67.00 | 153.00 | 20.00 | 147.00 | 150.40 | 2.60 | 20 | h6 | H8 |
| 860.2-1750-053A1-PM ● | 56.80 | 67.00 | 153.00 | 20.00 | 147.00 | 150.30 | 2.70 | 20 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
