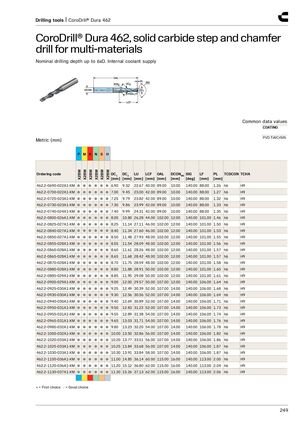

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, цельнотвердосплавное ступенчатое сверло с фаской для мультиматериалов
Номинальная глубина сверления до 6xD. Внутренняя подача СОЖ.
Общие значения данных: Покрытие PVD TiAlCrSiN
Метрические (мм)
| Марка | P | M | K | N | S | H |
|---|---|---|---|---|---|---|
| X2BM | ● | ● | ● | ● | ● | ● |
| Код заказа | DC1 [мм] | DC2 [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.2-0690-022A1-XM | 6.90 | 9.32 | 22.67 | 40.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.26 | h6 | H9 |
| 462.2-0700-022A1-XM | 7.00 | 9.45 | 23.00 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.27 | h6 | H9 |
| 462.2-0725-023A1-XM | 7.25 | 9.79 | 23.82 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.32 | h6 | H9 |
| 462.2-0730-023A1-XM | 7.30 | 9.86 | 23.99 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.33 | h6 | H9 |
| 462.2-0740-024A1-XM | 7.40 | 9.99 | 24.31 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.35 | h6 | H9 |
| 462.2-0800-026A1-XM | 8.00 | 10.80 | 26.28 | 44.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.46 | h6 | H9 |
| 462.2-0825-027A1-XM | 8.25 | 11.14 | 27.11 | 46.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.50 | h6 | H9 |
| 462.2-0840-027A1-XM | 8.40 | 11.34 | 27.60 | 46.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.53 | h6 | H9 |
| 462.2-0850-027A1-XM | 8.50 | 11.48 | 27.93 | 48.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.55 | h6 | H9 |
| 462.2-0855-028A1-XM | 8.55 | 11.54 | 28.09 | 48.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.56 | h6 | H9 |
| 462.2-0860-028A1-XM | 8.60 | 11.61 | 28.26 | 48.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.57 | h6 | H9 |
| 462.2-0865-028A1-XM | 8.65 | 11.68 | 28.42 | 48.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.57 | h6 | H9 |
| 462.2-0870-028A1-XM | 8.70 | 11.75 | 28.59 | 48.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.58 | h6 | H9 |
| 462.2-0880-028A1-XM | 8.80 | 11.88 | 28.91 | 50.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.60 | h6 | H9 |
| 462.2-0885-029A1-XM | 8.85 | 11.95 | 29.08 | 50.00 | 102.00 | 12.00 | 140.00 | 101.00 | 1.61 | h6 | H9 |
| 462.2-0900-029A1-XM | 9.00 | 12.00 | 29.57 | 50.00 | 107.00 | 12.00 | 140.00 | 106.00 | 1.64 | h6 | H9 |
| 462.2-0925-030A1-XM | 9.25 | 12.49 | 30.39 | 52.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.68 | h6 | H9 |
| 462.2-0930-030A1-XM | 9.30 | 12.56 | 30.56 | 52.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.69 | h6 | H9 |
| 462.2-0940-030A1-XM | 9.40 | 12.69 | 30.89 | 52.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.71 | h6 | H9 |
| 462.2-0950-031A1-XM | 9.50 | 12.83 | 31.22 | 52.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.73 | h6 | H9 |
| 462.2-0955-031A1-XM | 9.55 | 12.89 | 31.38 | 54.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.74 | h6 | H9 |
| 462.2-0965-031A1-XM | 9.65 | 13.03 | 31.71 | 54.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.76 | h6 | H9 |
| 462.2-0980-032A1-XM | 9.80 | 13.23 | 32.20 | 54.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.78 | h6 | H9 |
| 462.2-1000-032A1-XM | 10.00 | 13.50 | 32.86 | 56.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.82 | h6 | H9 |
| 462.2-1020-033A1-XM | 10.20 | 13.77 | 33.51 | 56.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.86 | h6 | H9 |
| 462.2-1025-033A1-XM | 10.25 | 13.84 | 33.68 | 56.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.87 | h6 | H9 |
| 462.2-1030-033A1-XM | 10.30 | 13.91 | 33.84 | 58.00 | 107.00 | 14.00 | 140.00 | 106.00 | 1.87 | h6 | H9 |
| 462.2-1100-036A1-XM | 11.00 | 14.85 | 36.14 | 60.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.00 | h6 | H9 |
| 462.2-1120-036A1-XM | 11.20 | 15.12 | 36.80 | 62.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.04 | h6 | H9 |
| 462.2-1130-037A1-XM | 11.30 | 15.26 | 37.13 | 62.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.06 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
