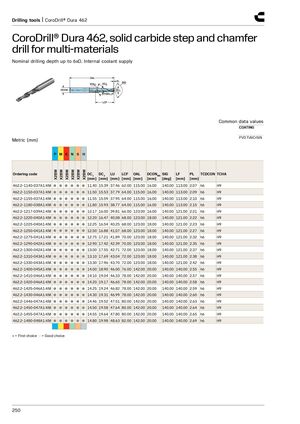

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, цельнотвердосплавное ступенчатое сверло с фаской для мультиматериалов
Номинальная глубина сверления до 6xD. Внутренняя подача СОЖ.
Общие значения данных: Покрытие PVD TiAlCrSiN
Метрические (мм)
| Марка | P | M | K | N | S | H |
|---|---|---|---|---|---|---|
| X2BM | ● | ● | ● | ● | ● | ● |
| Код заказа | DC1 [мм] | DC2 [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.2-1140-037A1-XM | 11.40 | 15.39 | 37.46 | 62.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.07 | h6 | H9 |
| 462.2-1150-037A1-XM | 11.50 | 15.53 | 37.79 | 64.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.09 | h6 | H9 |
| 462.2-1155-037A1-XM | 11.55 | 15.59 | 37.95 | 64.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.10 | h6 | H9 |
| 462.2-1180-038A1-XM | 11.80 | 15.93 | 38.77 | 64.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.15 | h6 | H9 |
| 462.2-1217-039A1-XM | 12.17 | 16.00 | 39.81 | 66.00 | 123.00 | 16.00 | 140.00 | 121.00 | 2.21 | h6 | H9 |
| 462.2-1220-040A1-XM | 12.20 | 16.47 | 40.08 | 68.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.22 | h6 | H9 |
| 462.2-1225-040A1-XM | 12.25 | 16.54 | 40.25 | 68.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.23 | h6 | H9 |
| 462.2-1250-041A1-XM | 12.50 | 16.88 | 41.07 | 68.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.27 | h6 | H9 |
| 462.2-1275-041A1-XM | 12.75 | 17.21 | 41.89 | 70.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.32 | h6 | H9 |
| 462.2-1290-042A1-XM | 12.90 | 17.42 | 42.39 | 70.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.35 | h6 | H9 |
| 462.2-1300-042A1-XM | 13.00 | 17.55 | 42.71 | 72.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.37 | h6 | H9 |
| 462.2-1310-043A1-XM | 13.10 | 17.69 | 43.04 | 72.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.38 | h6 | H9 |
| 462.2-1330-043A1-XM | 13.30 | 17.96 | 43.70 | 72.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.42 | h6 | H9 |
| 462.2-1400-045A1-XM | 14.00 | 18.90 | 46.00 | 76.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.55 | h6 | H9 |
| 462.2-1410-046A1-XM | 14.10 | 19.04 | 46.33 | 78.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.57 | h6 | H9 |
| 462.2-1420-046A1-XM | 14.20 | 19.17 | 46.65 | 78.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.58 | h6 | H9 |
| 462.2-1425-046A1-XM | 14.25 | 19.24 | 46.82 | 78.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.59 | h6 | H9 |
| 462.2-1430-046A1-XM | 14.30 | 19.31 | 46.99 | 78.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.60 | h6 | H9 |
| 462.2-1446-047A1-XM | 14.46 | 19.52 | 47.51 | 80.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.63 | h6 | H9 |
| 462.2-1450-047A1-XM | 14.50 | 19.58 | 47.64 | 80.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.64 | h6 | H9 |
| 462.2-1455-047A1-XM | 14.55 | 19.64 | 47.80 | 80.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.65 | h6 | H9 |
| 462.2-1480-048A1-XM | 14.80 | 19.98 | 48.63 | 82.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.69 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
