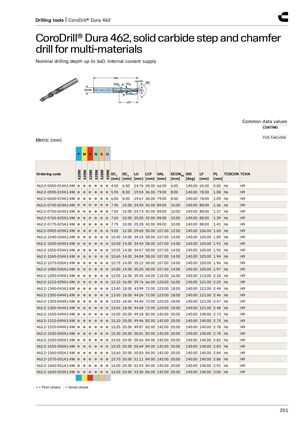

Инструменты для сверления | CoroDrill® Dura 462
CoroDrill® Dura 462, цельнотвердосплавное ступенчатое сверло с фаской для мультиматериалов
Номинальная глубина сверления до 6xD. Внутренняя подача СОЖ.
Общие значения данных: Покрытие PVD TiAlCrSiN
Метрические (мм)
| Марка | P | M | K | N | S | H |
|---|---|---|---|---|---|---|
| X2BM | ● | ● | ● | ● | ● | ● |
| Код заказа | DC1 [мм] | DC2 [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 462.2-0450-014A1-XM | 4.50 | 6.00 | 14.76 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 0.82 | h6 | H9 |
| 462.2-0595-019A1-XM | 5.95 | 8.00 | 19.54 | 36.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.08 | h6 | H9 |
| 462.2-0600-019A1-XM | 6.00 | 8.00 | 19.67 | 36.00 | 79.00 | 8.00 | 140.00 | 78.00 | 1.09 | h6 | H9 |
| 462.2-0745-024A1-XM | 7.45 | 10.00 | 24.45 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.36 | h6 | H9 |
| 462.2-0755-024A1-XM | 7.55 | 10.00 | 24.73 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.37 | h6 | H9 |
| 462.2-0765-025A1-XM | 7.65 | 10.00 | 25.00 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.39 | h6 | H9 |
| 462.2-0775-025A1-XM | 7.75 | 10.00 | 25.28 | 42.00 | 89.00 | 10.00 | 140.00 | 88.00 | 1.41 | h6 | H9 |
| 462.2-0905-029A1-XM | 9.05 | 12.00 | 29.65 | 50.00 | 107.00 | 12.00 | 140.00 | 106.00 | 1.65 | h6 | H9 |
| 462.2-1040-034A1-XM | 10.40 | 14.00 | 34.15 | 58.00 | 107.00 | 14.00 | 140.00 | 105.00 | 1.89 | h6 | H9 |
| 462.2-1050-034A1-XM | 10.50 | 14.00 | 34.43 | 58.00 | 107.00 | 14.00 | 140.00 | 105.00 | 1.91 | h6 | H9 |
| 462.2-1055-034A1-XM | 10.55 | 14.00 | 34.57 | 58.00 | 107.00 | 14.00 | 140.00 | 105.00 | 1.92 | h6 | H9 |
| 462.2-1065-034A1-XM | 10.65 | 14.00 | 34.84 | 58.00 | 107.00 | 14.00 | 140.00 | 105.00 | 1.94 | h6 | H9 |
| 462.2-1075-035A1-XM | 10.75 | 14.00 | 35.12 | 58.00 | 107.00 | 14.00 | 140.00 | 105.00 | 1.96 | h6 | H9 |
| 462.2-1080-035A1-XM | 10.80 | 14.00 | 35.25 | 58.00 | 107.00 | 14.00 | 140.00 | 105.00 | 1.97 | h6 | H9 |
| 462.2-1200-039A1-XM | 12.00 | 16.00 | 39.35 | 64.00 | 115.00 | 16.00 | 140.00 | 113.00 | 2.18 | h6 | H9 |
| 462.2-1210-039A1-XM | 12.10 | 16.00 | 39.76 | 66.00 | 123.00 | 16.00 | 140.00 | 121.00 | 2.20 | h6 | H9 |
| 462.2-1340-043A1-XM | 13.40 | 18.00 | 43.99 | 72.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.44 | h6 | H9 |
| 462.2-1350-044A1-XM | 13.50 | 18.00 | 44.26 | 72.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.46 | h6 | H9 |
| 462.2-1355-044A1-XM | 13.55 | 18.00 | 44.40 | 72.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.47 | h6 | H9 |
| 462.2-1365-044A1-XM | 13.65 | 18.00 | 44.68 | 72.00 | 123.00 | 18.00 | 140.00 | 121.00 | 2.48 | h6 | H9 |
| 462.2-1500-049A1-XM | 15.00 | 20.00 | 49.18 | 82.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.73 | h6 | H9 |
| 462.2-1510-049A1-XM | 15.10 | 20.00 | 49.46 | 82.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.75 | h6 | H9 |
| 462.2-1525-049A1-XM | 15.25 | 20.00 | 49.87 | 82.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.78 | h6 | H9 |
| 462.2-1530-050A1-XM | 15.30 | 20.00 | 50.01 | 82.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.78 | h6 | H9 |
| 462.2-1550-050A1-XM | 15.50 | 20.00 | 50.56 | 84.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.82 | h6 | H9 |
| 462.2-1555-050A1-XM | 15.55 | 20.00 | 50.69 | 84.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.83 | h6 | H9 |
| 462.2-1560-050A1-XM | 15.60 | 20.00 | 50.83 | 84.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.84 | h6 | H9 |
| 462.2-1570-051A1-XM | 15.70 | 20.00 | 51.11 | 84.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.86 | h6 | H9 |
| 462.2-1600-051A1-XM | 16.00 | 20.00 | 51.93 | 84.00 | 142.00 | 20.00 | 140.00 | 140.00 | 2.91 | h6 | H9 |
| 462.2-1650-053A1-XM | 16.50 | 20.00 | 53.30 | 86.00 | 142.00 | 20.00 | 140.00 | 140.00 | 3.00 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
