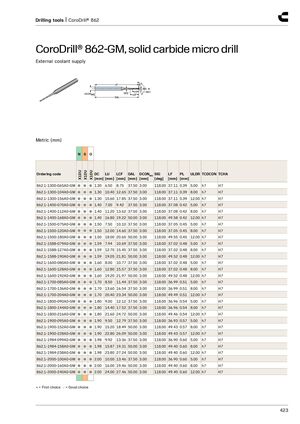

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Внешняя подача СОЖ
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-1300-065A0-GM | 1.30 | 6.50 | 8.75 | 37.50 | 3.00 | 118.00 | 37.11 | 0.39 | 5.00 | h7 | H7 |
| 862.1-1300-104A0-GM | 1.30 | 10.40 | 12.65 | 37.50 | 3.00 | 118.00 | 37.11 | 0.39 | 8.00 | h7 | H7 |
| 862.1-1300-156A0-GM | 1.30 | 15.60 | 17.85 | 37.50 | 3.00 | 118.00 | 37.11 | 0.39 | 12.00 | h7 | H7 |
| 862.1-1400-070A0-GM | 1.40 | 7.00 | 9.42 | 37.50 | 3.00 | 118.00 | 37.08 | 0.42 | 5.00 | h7 | H7 |
| 862.1-1400-112A0-GM | 1.40 | 11.20 | 13.62 | 37.50 | 3.00 | 118.00 | 37.08 | 0.42 | 8.00 | h7 | H7 |
| 862.1-1400-168A0-GM | 1.40 | 16.80 | 19.22 | 50.00 | 3.00 | 118.00 | 49.58 | 0.42 | 12.00 | h7 | H7 |
| 862.1-1500-075A0-GM | 1.50 | 7.50 | 10.10 | 37.50 | 3.00 | 118.00 | 37.05 | 0.45 | 5.00 | h7 | H7 |
| 862.1-1500-120A0-GM | 1.50 | 12.00 | 14.60 | 37.50 | 3.00 | 118.00 | 37.05 | 0.45 | 8.00 | h7 | H7 |
| 862.1-1500-180A0-GM | 1.50 | 18.00 | 20.60 | 50.00 | 3.00 | 118.00 | 49.55 | 0.45 | 12.00 | h7 | H7 |
| 862.1-1588-079A0-GM | 1.59 | 7.94 | 10.69 | 37.50 | 3.00 | 118.00 | 37.02 | 0.48 | 5.00 | h7 | H7 |
| 862.1-1588-127A0-GM | 1.59 | 12.70 | 15.45 | 37.50 | 3.00 | 118.00 | 37.02 | 0.48 | 8.00 | h7 | H7 |
| 862.1-1588-190A0-GM | 1.59 | 19.05 | 21.81 | 50.00 | 3.00 | 118.00 | 49.52 | 0.48 | 12.00 | h7 | H7 |
| 862.1-1600-080A0-GM | 1.60 | 8.00 | 10.77 | 37.50 | 3.00 | 118.00 | 37.02 | 0.48 | 5.00 | h7 | H7 |
| 862.1-1600-128A0-GM | 1.60 | 12.80 | 15.57 | 37.50 | 3.00 | 118.00 | 37.02 | 0.48 | 8.00 | h7 | H7 |
| 862.1-1600-192A0-GM | 1.60 | 19.20 | 21.97 | 50.00 | 3.00 | 118.00 | 49.52 | 0.48 | 12.00 | h7 | H7 |
| 862.1-1700-085A0-GM | 1.70 | 8.50 | 11.44 | 37.50 | 3.00 | 118.00 | 36.99 | 0.51 | 5.00 | h7 | H7 |
| 862.1-1700-136A0-GM | 1.70 | 13.60 | 16.54 | 37.50 | 3.00 | 118.00 | 36.99 | 0.51 | 8.00 | h7 | H7 |
| 862.1-1700-204A0-GM | 1.70 | 20.40 | 23.34 | 50.00 | 3.00 | 118.00 | 49.49 | 0.51 | 12.00 | h7 | H7 |
| 862.1-1800-090A0-GM | 1.80 | 9.00 | 12.12 | 37.50 | 3.00 | 118.00 | 36.96 | 0.54 | 5.00 | h7 | H7 |
| 862.1-1800-144A0-GM | 1.80 | 14.40 | 17.52 | 37.50 | 3.00 | 118.00 | 36.96 | 0.54 | 8.00 | h7 | H7 |
| 862.1-1800-216A0-GM | 1.80 | 21.60 | 24.72 | 50.00 | 3.00 | 118.00 | 49.46 | 0.54 | 12.00 | h7 | H7 |
| 862.1-1900-095A0-GM | 1.90 | 9.50 | 12.79 | 37.50 | 3.00 | 118.00 | 36.93 | 0.57 | 5.00 | h7 | H7 |
| 862.1-1900-152A0-GM | 1.90 | 15.20 | 18.49 | 50.00 | 3.00 | 118.00 | 49.43 | 0.57 | 8.00 | h7 | H7 |
| 862.1-1900-228A0-GM | 1.90 | 22.80 | 26.09 | 50.00 | 3.00 | 118.00 | 49.43 | 0.57 | 12.00 | h7 | H7 |
| 862.1-1984-099A0-GM | 1.98 | 9.92 | 13.36 | 37.50 | 3.00 | 118.00 | 36.90 | 0.60 | 5.00 | h7 | H7 |
| 862.1-1984-158A0-GM | 1.98 | 15.87 | 19.31 | 50.00 | 3.00 | 118.00 | 49.40 | 0.60 | 8.00 | h7 | H7 |
| 862.1-1984-238A0-GM | 1.98 | 23.80 | 27.24 | 50.00 | 3.00 | 118.00 | 49.40 | 0.60 | 12.00 | h7 | H7 |
| 862.1-2000-100A0-GM | 2.00 | 10.00 | 13.46 | 37.50 | 3.00 | 118.00 | 36.90 | 0.60 | 5.00 | h7 | H7 |
| 862.1-2000-160A0-GM | 2.00 | 16.00 | 19.46 | 50.00 | 3.00 | 118.00 | 49.40 | 0.60 | 8.00 | h7 | H7 |
| 862.1-2000-240A0-GM | 2.00 | 24.00 | 27.46 | 50.00 | 3.00 | 118.00 | 49.40 | 0.60 | 12.00 | h7 | H7 |
● = Первый выбор ○ = Хороший выбор
