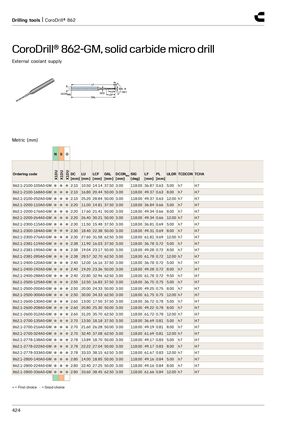

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Внешняя подача СОЖ
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-2100-105A0-GM | 2.10 | 10.50 | 14.14 | 37.50 | 3.00 | 118.00 | 36.87 | 0.63 | 5.00 | h7 | H7 |
| 862.1-2100-168A0-GM | 2.10 | 16.80 | 20.44 | 50.00 | 3.00 | 118.00 | 49.37 | 0.63 | 8.00 | h7 | H7 |
| 862.1-2100-252A0-GM | 2.10 | 25.20 | 28.84 | 50.00 | 3.00 | 118.00 | 49.37 | 0.63 | 12.00 | h7 | H7 |
| 862.1-2200-110A0-GM | 2.20 | 11.00 | 14.81 | 37.50 | 3.00 | 118.00 | 36.84 | 0.66 | 5.00 | h7 | H7 |
| 862.1-2200-176A0-GM | 2.20 | 17.60 | 21.41 | 50.00 | 3.00 | 118.00 | 49.34 | 0.66 | 8.00 | h7 | H7 |
| 862.1-2200-264A0-GM | 2.20 | 26.40 | 30.21 | 50.00 | 3.00 | 118.00 | 49.34 | 0.66 | 12.00 | h7 | H7 |
| 862.1-2300-115A0-GM | 2.30 | 11.50 | 15.48 | 37.50 | 3.00 | 118.00 | 36.81 | 0.69 | 5.00 | h7 | H7 |
| 862.1-2300-184A0-GM | 2.30 | 18.40 | 22.38 | 50.00 | 3.00 | 118.00 | 49.31 | 0.69 | 8.00 | h7 | H7 |
| 862.1-2300-276A0-GM | 2.30 | 27.60 | 31.58 | 62.50 | 3.00 | 118.00 | 61.81 | 0.69 | 12.00 | h7 | H7 |
| 862.1-2381-119A0-GM | 2.38 | 11.90 | 16.03 | 37.50 | 3.00 | 118.00 | 36.78 | 0.72 | 5.00 | h7 | H7 |
| 862.1-2381-190A0-GM | 2.38 | 19.04 | 23.17 | 50.00 | 3.00 | 118.00 | 49.28 | 0.72 | 8.00 | h7 | H7 |
| 862.1-2381-285A0-GM | 2.38 | 28.57 | 32.70 | 62.50 | 3.00 | 118.00 | 61.78 | 0.72 | 12.00 | h7 | H7 |
| 862.1-2400-120A0-GM | 2.40 | 12.00 | 16.16 | 37.50 | 3.00 | 118.00 | 36.78 | 0.72 | 5.00 | h7 | H7 |
| 862.1-2400-192A0-GM | 2.40 | 19.20 | 23.36 | 50.00 | 3.00 | 118.00 | 49.28 | 0.72 | 8.00 | h7 | H7 |
| 862.1-2400-288A0-GM | 2.40 | 22.80 | 32.96 | 62.50 | 3.00 | 118.00 | 61.78 | 0.72 | 9.50 | h7 | H7 |
| 862.1-2500-125A0-GM | 2.50 | 12.50 | 16.83 | 37.50 | 3.00 | 118.00 | 36.75 | 0.75 | 5.00 | h7 | H7 |
| 862.1-2500-200A0-GM | 2.50 | 20.00 | 24.33 | 50.00 | 3.00 | 118.00 | 49.25 | 0.75 | 8.00 | h7 | H7 |
| 862.1-2500-300A0-GM | 2.50 | 30.00 | 34.33 | 62.50 | 3.00 | 118.00 | 61.75 | 0.75 | 12.00 | h7 | H7 |
| 862.1-2600-130A0-GM | 2.60 | 13.00 | 17.50 | 37.50 | 3.00 | 118.00 | 36.72 | 0.78 | 5.00 | h7 | H7 |
| 862.1-2600-208A0-GM | 2.60 | 20.80 | 25.30 | 50.00 | 3.00 | 118.00 | 49.22 | 0.78 | 8.00 | h7 | H7 |
| 862.1-2600-312A0-GM | 2.60 | 31.20 | 35.70 | 62.50 | 3.00 | 118.00 | 61.72 | 0.78 | 12.00 | h7 | H7 |
| 862.1-2700-135A0-GM | 2.70 | 13.50 | 18.18 | 37.50 | 3.00 | 118.00 | 36.69 | 0.81 | 5.00 | h7 | H7 |
| 862.1-2700-216A0-GM | 2.70 | 21.60 | 26.28 | 50.00 | 3.00 | 118.00 | 49.19 | 0.81 | 8.00 | h7 | H7 |
| 862.1-2700-324A0-GM | 2.70 | 32.40 | 37.08 | 62.50 | 3.00 | 118.00 | 61.69 | 0.81 | 12.00 | h7 | H7 |
| 862.1-2778-138A0-GM | 2.78 | 13.89 | 18.70 | 50.00 | 3.00 | 118.00 | 49.17 | 0.83 | 5.00 | h7 | H7 |
| 862.1-2778-222A0-GM | 2.78 | 22.22 | 27.04 | 50.00 | 3.00 | 118.00 | 49.17 | 0.83 | 8.00 | h7 | H7 |
| 862.1-2778-333A0-GM | 2.78 | 33.33 | 38.15 | 62.50 | 3.00 | 118.00 | 61.67 | 0.83 | 12.00 | h7 | H7 |
| 862.1-2800-140A0-GM | 2.80 | 14.00 | 18.85 | 50.00 | 3.00 | 118.00 | 49.16 | 0.84 | 5.00 | h7 | H7 |
| 862.1-2800-224A0-GM | 2.80 | 22.40 | 27.25 | 50.00 | 3.00 | 118.00 | 49.16 | 0.84 | 8.00 | h7 | H7 |
| 862.1-2800-336A0-GM | 2.80 | 33.60 | 38.45 | 62.50 | 3.00 | 118.00 | 61.66 | 0.84 | 12.00 | h7 | H7 |
● = Первый выбор ○ = Хороший выбор
