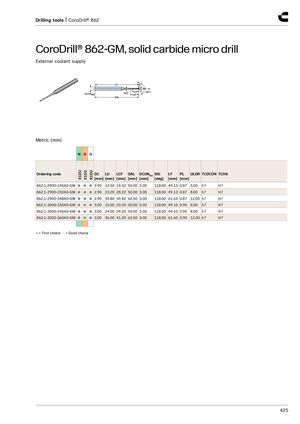

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Внешняя подача СОЖ
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-2900-145A0-GM | 2.90 | 14.50 | 19.52 | 50.00 | 3.00 | 118.00 | 49.13 | 0.87 | 5.00 | h7 | H7 |
| 862.1-2900-232A0-GM | 2.90 | 23.20 | 28.22 | 50.00 | 3.00 | 118.00 | 49.13 | 0.87 | 8.00 | h7 | H7 |
| 862.1-2900-348A0-GM | 2.90 | 34.80 | 39.82 | 62.50 | 3.00 | 118.00 | 61.63 | 0.87 | 12.00 | h7 | H7 |
| 862.1-3000-150A0-GM | 3.00 | 15.00 | 20.20 | 50.00 | 3.00 | 118.00 | 49.10 | 0.90 | 5.00 | h7 | H7 |
| 862.1-3000-240A0-GM | 3.00 | 24.00 | 29.20 | 50.00 | 3.00 | 118.00 | 49.10 | 0.90 | 8.00 | h7 | H7 |
| 862.1-3000-360A0-GM | 3.00 | 36.00 | 41.20 | 62.50 | 3.00 | 118.00 | 61.60 | 0.90 | 12.00 | h7 | H7 |
● = Первый выбор ○ = Хороший выбор
