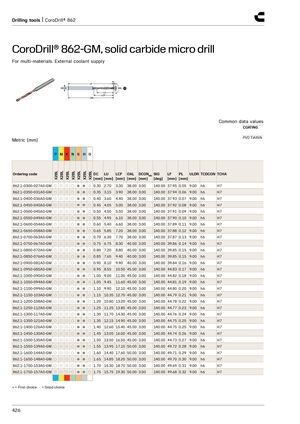

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внешняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD TiAlSiN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-0300-027A0-GM | 0.30 | 2.70 | 3.30 | 38.00 | 3.00 | 140.00 | 37.95 | 0.05 | 9.00 | h6 | H7 |
| 862.1-0350-031A0-GM | 0.35 | 3.15 | 3.90 | 38.00 | 3.00 | 140.00 | 37.94 | 0.06 | 9.00 | h6 | H7 |
| 862.1-0400-036A0-GM | 0.40 | 3.60 | 4.40 | 38.00 | 3.00 | 140.00 | 37.93 | 0.07 | 9.00 | h6 | H7 |
| 862.1-0450-040A0-GM | 0.45 | 4.05 | 5.00 | 38.00 | 3.00 | 140.00 | 37.92 | 0.08 | 9.00 | h6 | H7 |
| 862.1-0500-045A0-GM | 0.50 | 4.50 | 5.50 | 38.00 | 3.00 | 140.00 | 37.91 | 0.09 | 9.00 | h6 | H7 |
| 862.1-0550-049A0-GM | 0.55 | 4.95 | 6.10 | 38.00 | 3.00 | 140.00 | 37.90 | 0.10 | 9.00 | h6 | H7 |
| 862.1-0600-054A0-GM | 0.60 | 5.40 | 6.60 | 38.00 | 3.00 | 140.00 | 37.89 | 0.11 | 9.00 | h6 | H7 |
| 862.1-0650-058A0-GM | 0.65 | 5.85 | 7.20 | 38.00 | 3.00 | 140.00 | 37.88 | 0.12 | 9.00 | h6 | H7 |
| 862.1-0700-063A0-GM | 0.70 | 6.30 | 7.70 | 38.00 | 3.00 | 140.00 | 37.87 | 0.13 | 9.00 | h6 | H7 |
| 862.1-0750-067A0-GM | 0.75 | 6.75 | 8.30 | 40.00 | 3.00 | 140.00 | 39.86 | 0.14 | 9.00 | h6 | H7 |
| 862.1-0800-072A0-GM | 0.80 | 7.20 | 8.80 | 40.00 | 3.00 | 140.00 | 39.85 | 0.15 | 9.00 | h6 | H7 |
| 862.1-0850-076A0-GM | 0.85 | 7.65 | 9.40 | 40.00 | 3.00 | 140.00 | 39.85 | 0.15 | 9.00 | h6 | H7 |
| 862.1-0900-081A0-GM | 0.90 | 8.10 | 9.90 | 40.00 | 3.00 | 140.00 | 39.84 | 0.16 | 9.00 | h6 | H7 |
| 862.1-0950-085A0-GM | 0.95 | 8.55 | 10.50 | 45.00 | 3.00 | 140.00 | 44.83 | 0.17 | 9.00 | h6 | H7 |
| 862.1-1000-090A0-GM | 1.00 | 9.00 | 11.00 | 45.00 | 3.00 | 140.00 | 44.82 | 0.18 | 9.00 | h6 | H7 |
| 862.1-1050-094A0-GM | 1.05 | 9.45 | 11.60 | 45.00 | 3.00 | 140.00 | 44.81 | 0.19 | 9.00 | h6 | H7 |
| 862.1-1100-099A0-GM | 1.10 | 9.90 | 12.10 | 45.00 | 3.00 | 140.00 | 44.80 | 0.20 | 9.00 | h6 | H7 |
| 862.1-1150-103A0-GM | 1.15 | 10.35 | 12.70 | 45.00 | 3.00 | 140.00 | 44.79 | 0.21 | 9.00 | h6 | H7 |
| 862.1-1200-108A0-GM | 1.20 | 10.80 | 13.20 | 45.00 | 3.00 | 140.00 | 44.78 | 0.22 | 9.00 | h6 | H7 |
| 862.1-1250-112A0-GM | 1.25 | 11.25 | 13.80 | 45.00 | 3.00 | 140.00 | 44.77 | 0.23 | 9.00 | h6 | H7 |
| 862.1-1300-117A0-GM | 1.30 | 11.70 | 14.30 | 45.00 | 3.00 | 140.00 | 44.76 | 0.24 | 9.00 | h6 | H7 |
| 862.1-1350-121A0-GM | 1.35 | 12.15 | 14.90 | 45.00 | 3.00 | 140.00 | 44.75 | 0.25 | 9.00 | h6 | H7 |
| 862.1-1400-126A0-GM | 1.40 | 12.60 | 15.40 | 45.00 | 3.00 | 140.00 | 44.75 | 0.25 | 9.00 | h6 | H7 |
| 862.1-1450-130A0-GM | 1.45 | 13.05 | 16.00 | 45.00 | 3.00 | 140.00 | 44.74 | 0.26 | 9.00 | h6 | H7 |
| 862.1-1500-135A0-GM | 1.50 | 13.50 | 16.50 | 45.00 | 3.00 | 140.00 | 44.73 | 0.27 | 9.00 | h6 | H7 |
| 862.1-1550-139A0-GM | 1.55 | 13.95 | 17.10 | 50.00 | 3.00 | 140.00 | 49.72 | 0.28 | 9.00 | h6 | H7 |
| 862.1-1600-144A0-GM | 1.60 | 14.40 | 17.60 | 50.00 | 3.00 | 140.00 | 49.71 | 0.29 | 9.00 | h6 | H7 |
| 862.1-1650-148A0-GM | 1.65 | 14.85 | 18.20 | 50.00 | 3.00 | 140.00 | 49.70 | 0.30 | 9.00 | h6 | H7 |
| 862.1-1700-153A0-GM | 1.70 | 15.30 | 18.70 | 50.00 | 3.00 | 140.00 | 49.69 | 0.31 | 9.00 | h6 | H7 |
| 862.1-1750-157A0-GM | 1.75 | 15.75 | 19.30 | 50.00 | 3.00 | 140.00 | 49.68 | 0.32 | 9.00 | h6 | H7 |
● = Первый выбор ○ = Хороший выбор
