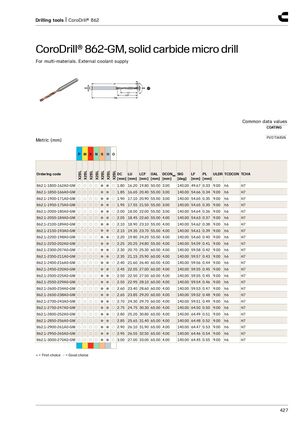

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внешняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD TiAlSiN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-1800-162A0-GM | 1.80 | 16.20 | 19.80 | 50.00 | 3.00 | 140.00 | 49.67 | 0.33 | 9.00 | h6 | H7 |
| 862.1-1850-166A0-GM | 1.85 | 16.65 | 20.40 | 55.00 | 3.00 | 140.00 | 54.66 | 0.34 | 9.00 | h6 | H7 |
| 862.1-1900-171A0-GM | 1.90 | 17.10 | 20.90 | 55.00 | 3.00 | 140.00 | 54.65 | 0.35 | 9.00 | h6 | H7 |
| 862.1-1950-175A0-GM | 1.95 | 17.55 | 21.50 | 55.00 | 3.00 | 140.00 | 54.65 | 0.35 | 9.00 | h6 | H7 |
| 862.1-2000-180A0-GM | 2.00 | 18.00 | 22.00 | 55.00 | 3.00 | 140.00 | 54.64 | 0.36 | 9.00 | h6 | H7 |
| 862.1-2050-184A0-GM | 2.05 | 18.45 | 22.60 | 55.00 | 4.00 | 140.00 | 54.63 | 0.37 | 9.00 | h6 | H7 |
| 862.1-2100-189A0-GM | 2.10 | 18.90 | 23.10 | 55.00 | 4.00 | 140.00 | 54.62 | 0.38 | 9.00 | h6 | H7 |
| 862.1-2150-193A0-GM | 2.15 | 19.35 | 23.70 | 55.00 | 4.00 | 140.00 | 54.61 | 0.39 | 9.00 | h6 | H7 |
| 862.1-2200-198A0-GM | 2.20 | 19.80 | 24.20 | 55.00 | 4.00 | 140.00 | 54.60 | 0.40 | 9.00 | h6 | H7 |
| 862.1-2250-202A0-GM | 2.25 | 20.25 | 24.80 | 55.00 | 4.00 | 140.00 | 54.59 | 0.41 | 9.00 | h6 | H7 |
| 862.1-2300-207A0-GM | 2.30 | 20.70 | 25.30 | 60.00 | 4.00 | 140.00 | 59.58 | 0.42 | 9.00 | h6 | H7 |
| 862.1-2350-211A0-GM | 2.35 | 21.15 | 25.90 | 60.00 | 4.00 | 140.00 | 59.57 | 0.43 | 9.00 | h6 | H7 |
| 862.1-2400-216A0-GM | 2.40 | 21.60 | 26.40 | 60.00 | 4.00 | 140.00 | 59.56 | 0.44 | 9.00 | h6 | H7 |
| 862.1-2450-220A0-GM | 2.45 | 22.05 | 27.00 | 60.00 | 4.00 | 140.00 | 59.55 | 0.45 | 9.00 | h6 | H7 |
| 862.1-2500-225A0-GM | 2.50 | 22.50 | 27.50 | 60.00 | 4.00 | 140.00 | 59.55 | 0.45 | 9.00 | h6 | H7 |
| 862.1-2550-229A0-GM | 2.55 | 22.95 | 28.10 | 60.00 | 4.00 | 140.00 | 59.54 | 0.46 | 9.00 | h6 | H7 |
| 862.1-2600-234A0-GM | 2.60 | 23.40 | 28.60 | 60.00 | 4.00 | 140.00 | 59.53 | 0.47 | 9.00 | h6 | H7 |
| 862.1-2650-238A0-GM | 2.65 | 23.85 | 29.20 | 60.00 | 4.00 | 140.00 | 59.52 | 0.48 | 9.00 | h6 | H7 |
| 862.1-2700-243A0-GM | 2.70 | 24.30 | 29.70 | 60.00 | 4.00 | 140.00 | 59.51 | 0.49 | 9.00 | h6 | H7 |
| 862.1-2750-247A0-GM | 2.75 | 24.75 | 30.30 | 65.00 | 4.00 | 140.00 | 64.50 | 0.50 | 9.00 | h6 | H7 |
| 862.1-2800-252A0-GM | 2.80 | 25.20 | 30.80 | 65.00 | 4.00 | 140.00 | 64.49 | 0.51 | 9.00 | h6 | H7 |
| 862.1-2850-256A0-GM | 2.85 | 25.65 | 31.40 | 65.00 | 4.00 | 140.00 | 64.48 | 0.52 | 9.00 | h6 | H7 |
| 862.1-2900-261A0-GM | 2.90 | 26.10 | 31.90 | 65.00 | 4.00 | 140.00 | 64.47 | 0.53 | 9.00 | h6 | H7 |
| 862.1-2950-265A0-GM | 2.95 | 26.55 | 32.50 | 65.00 | 4.00 | 140.00 | 64.46 | 0.54 | 9.00 | h6 | H7 |
| 862.1-3000-270A0-GM | 3.00 | 27.00 | 33.00 | 65.00 | 4.00 | 140.00 | 64.45 | 0.55 | 9.00 | h6 | H7 |
● = Первый выбор ○ = Хороший выбор
