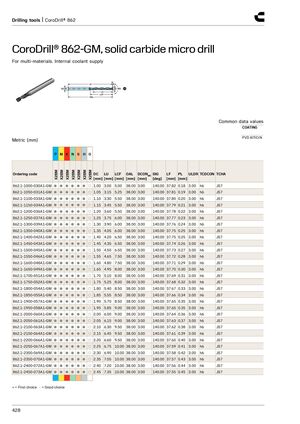

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внутренняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-1000-030A1-GM | 1.00 | 3.00 | 5.00 | 38.00 | 3.00 | 140.00 | 37.82 | 0.18 | 3.00 | h6 | JS7 |
| 862.1-1050-031A1-GM | 1.05 | 3.15 | 5.25 | 38.00 | 3.00 | 140.00 | 37.81 | 0.19 | 3.00 | h6 | JS7 |
| 862.1-1100-033A1-GM | 1.10 | 3.30 | 5.50 | 38.00 | 3.00 | 140.00 | 37.80 | 0.20 | 3.00 | h6 | JS7 |
| 862.1-1150-034A1-GM | 1.15 | 3.45 | 5.50 | 38.00 | 3.00 | 140.00 | 37.79 | 0.21 | 3.00 | h6 | JS7 |
| 862.1-1200-036A1-GM | 1.20 | 3.60 | 5.50 | 38.00 | 3.00 | 140.00 | 37.78 | 0.22 | 3.00 | h6 | JS7 |
| 862.1-1250-037A1-GM | 1.25 | 3.75 | 6.00 | 38.00 | 3.00 | 140.00 | 37.77 | 0.23 | 3.00 | h6 | JS7 |
| 862.1-1300-039A1-GM | 1.30 | 3.90 | 6.00 | 38.00 | 3.00 | 140.00 | 37.76 | 0.24 | 3.00 | h6 | JS7 |
| 862.1-1350-040A1-GM | 1.35 | 4.05 | 6.00 | 38.00 | 3.00 | 140.00 | 37.75 | 0.25 | 3.00 | h6 | JS7 |
| 862.1-1400-042A1-GM | 1.40 | 4.20 | 6.50 | 38.00 | 3.00 | 140.00 | 37.75 | 0.25 | 3.00 | h6 | JS7 |
| 862.1-1450-043A1-GM | 1.45 | 4.35 | 6.50 | 38.00 | 3.00 | 140.00 | 37.74 | 0.26 | 3.00 | h6 | JS7 |
| 862.1-1500-045A1-GM | 1.50 | 4.50 | 6.50 | 38.00 | 3.00 | 140.00 | 37.73 | 0.27 | 3.00 | h6 | JS7 |
| 862.1-1550-046A1-GM | 1.55 | 4.65 | 7.50 | 38.00 | 3.00 | 140.00 | 37.72 | 0.28 | 3.00 | h6 | JS7 |
| 862.1-1600-048A1-GM | 1.60 | 4.80 | 7.50 | 38.00 | 3.00 | 140.00 | 37.71 | 0.29 | 3.00 | h6 | JS7 |
| 862.1-1650-049A1-GM | 1.65 | 4.95 | 8.00 | 38.00 | 3.00 | 140.00 | 37.70 | 0.30 | 3.00 | h6 | JS7 |
| 862.1-1700-051A1-GM | 1.70 | 5.10 | 8.00 | 38.00 | 3.00 | 140.00 | 37.69 | 0.31 | 3.00 | h6 | JS7 |
| 862.1-1750-052A1-GM | 1.75 | 5.25 | 8.00 | 38.00 | 3.00 | 140.00 | 37.68 | 0.32 | 3.00 | h6 | JS7 |
| 862.1-1800-054A1-GM | 1.80 | 5.40 | 8.50 | 38.00 | 3.00 | 140.00 | 37.67 | 0.33 | 3.00 | h6 | JS7 |
| 862.1-1850-055A1-GM | 1.85 | 5.55 | 8.50 | 38.00 | 3.00 | 140.00 | 37.66 | 0.34 | 3.00 | h6 | JS7 |
| 862.1-1900-057A1-GM | 1.90 | 5.70 | 8.50 | 38.00 | 3.00 | 140.00 | 37.65 | 0.35 | 3.00 | h6 | JS7 |
| 862.1-1950-058A1-GM | 1.95 | 5.85 | 9.00 | 38.00 | 3.00 | 140.00 | 37.65 | 0.35 | 3.00 | h6 | JS7 |
| 862.1-2000-060A1-GM | 2.00 | 6.00 | 9.00 | 38.00 | 3.00 | 140.00 | 37.64 | 0.36 | 3.00 | h6 | JS7 |
| 862.1-2050-061A1-GM | 2.05 | 6.15 | 9.00 | 38.00 | 3.00 | 140.00 | 37.63 | 0.37 | 3.00 | h6 | JS7 |
| 862.1-2100-063A1-GM | 2.10 | 6.30 | 9.50 | 38.00 | 3.00 | 140.00 | 37.62 | 0.38 | 3.00 | h6 | JS7 |
| 862.1-2150-064A1-GM | 2.15 | 6.45 | 9.50 | 38.00 | 3.00 | 140.00 | 37.61 | 0.39 | 3.00 | h6 | JS7 |
| 862.1-2200-066A1-GM | 2.20 | 6.60 | 9.50 | 38.00 | 3.00 | 140.00 | 37.60 | 0.40 | 3.00 | h6 | JS7 |
| 862.1-2250-067A1-GM | 2.25 | 6.75 | 10.00 | 38.00 | 3.00 | 140.00 | 37.59 | 0.41 | 3.00 | h6 | JS7 |
| 862.1-2300-069A1-GM | 2.30 | 6.90 | 10.00 | 38.00 | 3.00 | 140.00 | 37.58 | 0.42 | 3.00 | h6 | JS7 |
| 862.1-2350-070A1-GM | 2.35 | 7.05 | 10.00 | 38.00 | 3.00 | 140.00 | 37.57 | 0.43 | 3.00 | h6 | JS7 |
| 862.1-2400-072A1-GM | 2.40 | 7.20 | 10.00 | 38.00 | 3.00 | 140.00 | 37.56 | 0.44 | 3.00 | h6 | JS7 |
| 862.1-2450-073A1-GM | 2.45 | 7.35 | 10.00 | 38.00 | 3.00 | 140.00 | 37.55 | 0.45 | 3.00 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
