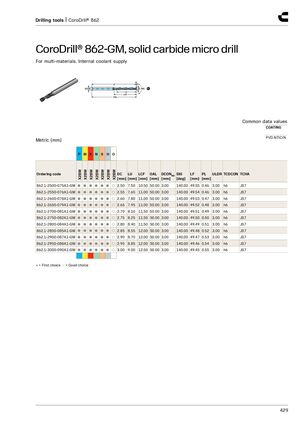

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внутренняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-2500-075A1-GM | 2.50 | 7.50 | 10.50 | 50.00 | 3.00 | 140.00 | 49.55 | 0.46 | 3.00 | h6 | JS7 |
| 862.1-2550-076A1-GM | 2.55 | 7.65 | 11.00 | 50.00 | 3.00 | 140.00 | 49.54 | 0.46 | 3.00 | h6 | JS7 |
| 862.1-2600-078A1-GM | 2.60 | 7.80 | 11.00 | 50.00 | 3.00 | 140.00 | 49.53 | 0.47 | 3.00 | h6 | JS7 |
| 862.1-2650-079A1-GM | 2.65 | 7.95 | 11.00 | 50.00 | 3.00 | 140.00 | 49.52 | 0.48 | 3.00 | h6 | JS7 |
| 862.1-2700-081A1-GM | 2.70 | 8.10 | 11.50 | 50.00 | 3.00 | 140.00 | 49.51 | 0.49 | 3.00 | h6 | JS7 |
| 862.1-2750-082A1-GM | 2.75 | 8.25 | 11.50 | 50.00 | 3.00 | 140.00 | 49.50 | 0.50 | 3.00 | h6 | JS7 |
| 862.1-2800-084A1-GM | 2.80 | 8.40 | 11.50 | 50.00 | 3.00 | 140.00 | 49.49 | 0.51 | 3.00 | h6 | JS7 |
| 862.1-2850-085A1-GM | 2.85 | 8.55 | 12.00 | 50.00 | 3.00 | 140.00 | 49.48 | 0.52 | 3.00 | h6 | JS7 |
| 862.1-2900-087A1-GM | 2.90 | 8.70 | 12.00 | 50.00 | 3.00 | 140.00 | 49.47 | 0.53 | 3.00 | h6 | JS7 |
| 862.1-2950-088A1-GM | 2.95 | 8.85 | 12.00 | 50.00 | 3.00 | 140.00 | 49.46 | 0.54 | 3.00 | h6 | JS7 |
| 862.1-3000-090A1-GM | 3.00 | 9.00 | 12.50 | 50.00 | 3.00 | 140.00 | 49.45 | 0.55 | 3.00 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
