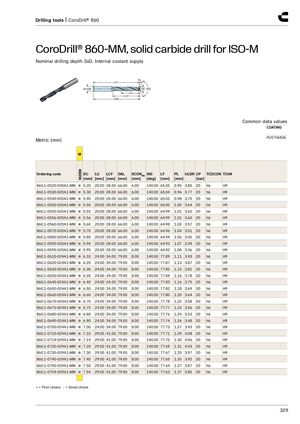

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-MM, сверло из цельного твердого сплава для ISO-M
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN
Метрическая (мм), группа материалов: M, обозначение: M2BM
| Код заказа | M | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0520-020A1-MM | ● | 5.20 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.05 | 0.95 | 3.85 | 20 | h6 | H9 |
| 860.1-0530-020A1-MM | ● | 5.30 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.04 | 0.96 | 3.77 | 20 | h6 | H9 |
| 860.1-0540-020A1-MM | ● | 5.40 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.02 | 0.98 | 3.70 | 20 | h6 | H9 |
| 860.1-0550-020A1-MM | ● | 5.50 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.00 | 3.64 | 20 | h6 | H9 |
| 860.1-0555-020A1-MM | ● | 5.55 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.99 | 1.01 | 3.60 | 20 | h6 | H9 |
| 860.1-0556-020A1-MM | ● | 5.56 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.99 | 1.01 | 3.60 | 20 | h6 | H9 |
| 860.1-0560-020A1-MM | ● | 5.60 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.98 | 1.02 | 3.57 | 20 | h6 | H9 |
| 860.1-0570-020A1-MM | ● | 5.70 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.96 | 1.04 | 3.51 | 20 | h6 | H9 |
| 860.1-0580-020A1-MM | ● | 5.80 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.94 | 1.06 | 3.45 | 20 | h6 | H9 |
| 860.1-0590-020A1-MM | ● | 5.90 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.93 | 1.07 | 3.39 | 20 | h6 | H9 |
| 860.1-0595-020A1-MM | ● | 5.95 | 20.00 | 28.00 | 66.00 | 6.00 | 140.00 | 64.92 | 1.08 | 3.36 | 20 | h6 | H9 |
| 860.1-0610-024A1-MM | ● | 6.10 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.89 | 1.11 | 3.93 | 20 | h6 | H9 |
| 860.1-0620-024A1-MM | ● | 6.20 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.87 | 1.13 | 3.87 | 20 | h6 | H9 |
| 860.1-0630-024A1-MM | ● | 6.30 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.85 | 1.15 | 3.81 | 20 | h6 | H9 |
| 860.1-0635-024A1-MM | ● | 6.35 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.84 | 1.16 | 3.78 | 20 | h6 | H9 |
| 860.1-0640-024A1-MM | ● | 6.40 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.83 | 1.16 | 3.75 | 20 | h6 | H9 |
| 860.1-0650-024A1-MM | ● | 6.50 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.82 | 1.18 | 3.69 | 20 | h6 | H9 |
| 860.1-0660-024A1-MM | ● | 6.60 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.80 | 1.20 | 3.64 | 20 | h6 | H9 |
| 860.1-0670-024A1-MM | ● | 6.70 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.78 | 1.22 | 3.58 | 20 | h6 | H9 |
| 860.1-0675-024A1-MM | ● | 6.75 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.77 | 1.23 | 3.56 | 20 | h6 | H9 |
| 860.1-0680-024A1-MM | ● | 6.80 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.76 | 1.24 | 3.53 | 20 | h6 | H9 |
| 860.1-0690-024A1-MM | ● | 6.90 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.74 | 1.26 | 3.48 | 20 | h6 | H9 |
| 860.1-0700-024A1-MM | ● | 7.00 | 24.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.73 | 1.27 | 3.43 | 20 | h6 | H9 |
| 860.1-0710-029A1-MM | ● | 7.10 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.71 | 1.29 | 4.08 | 20 | h6 | H9 |
| 860.1-0714-029A1-MM | ● | 7.14 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.70 | 1.30 | 4.06 | 20 | h6 | H9 |
| 860.1-0720-029A1-MM | ● | 7.20 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.69 | 1.31 | 4.03 | 20 | h6 | H9 |
| 860.1-0730-029A1-MM | ● | 7.30 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.67 | 1.33 | 3.97 | 20 | h6 | H9 |
| 860.1-0740-029A1-MM | ● | 7.40 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.65 | 1.35 | 3.92 | 20 | h6 | H9 |
| 860.1-0750-029A1-MM | ● | 7.50 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.64 | 1.37 | 3.87 | 20 | h6 | H9 |
| 860.1-0754-029A1-MM | ● | 7.54 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.63 | 1.37 | 3.85 | 20 | h6 | H9 |
● — первый выбор, ○ — хороший выбор.
