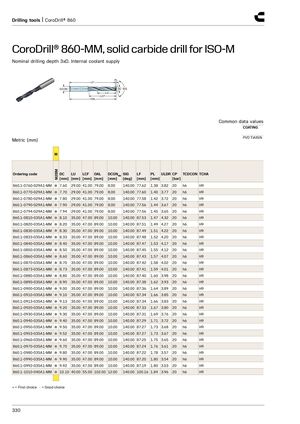

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-MM, сверло из цельного твердого сплава для ISO-M
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN
Метрическая (мм), группа материалов: M, обозначение: M2BM
| Код заказа | M | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0760-029A1-MM | ● | 7.60 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.62 | 1.38 | 3.82 | 20 | h6 | H9 |
| 860.1-0770-029A1-MM | ● | 7.70 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.60 | 1.40 | 3.77 | 20 | h6 | H9 |
| 860.1-0780-029A1-MM | ● | 7.80 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.58 | 1.42 | 3.72 | 20 | h6 | H9 |
| 860.1-0790-029A1-MM | ● | 7.90 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.56 | 1.44 | 3.67 | 20 | h6 | H9 |
| 860.1-0794-029A1-MM | ● | 7.94 | 29.00 | 41.00 | 79.00 | 8.00 | 140.00 | 77.56 | 1.45 | 3.65 | 20 | h6 | H9 |
| 860.1-0810-035A1-MM | ● | 8.10 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.53 | 1.47 | 4.32 | 20 | h6 | H9 |
| 860.1-0820-035A1-MM | ● | 8.20 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.51 | 1.49 | 4.27 | 20 | h6 | H9 |
| 860.1-0830-035A1-MM | ● | 8.30 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.49 | 1.51 | 4.22 | 20 | h6 | H9 |
| 860.1-0833-035A1-MM | ● | 8.33 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.48 | 1.52 | 4.20 | 20 | h6 | H9 |
| 860.1-0840-035A1-MM | ● | 8.40 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.47 | 1.53 | 4.17 | 20 | h6 | H9 |
| 860.1-0850-035A1-MM | ● | 8.50 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.45 | 1.55 | 4.12 | 20 | h6 | H9 |
| 860.1-0860-035A1-MM | ● | 8.60 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.43 | 1.57 | 4.07 | 20 | h6 | H9 |
| 860.1-0870-035A1-MM | ● | 8.70 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.42 | 1.58 | 4.02 | 20 | h6 | H9 |
| 860.1-0873-035A1-MM | ● | 8.73 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.41 | 1.59 | 4.01 | 20 | h6 | H9 |
| 860.1-0880-035A1-MM | ● | 8.80 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.40 | 1.60 | 3.98 | 20 | h6 | H9 |
| 860.1-0890-035A1-MM | ● | 8.90 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.38 | 1.62 | 3.93 | 20 | h6 | H9 |
| 860.1-0900-035A1-MM | ● | 9.00 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.36 | 1.64 | 3.89 | 20 | h6 | H9 |
| 860.1-0910-035A1-MM | ● | 9.10 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.34 | 1.66 | 3.85 | 20 | h6 | H9 |
| 860.1-0913-035A1-MM | ● | 9.13 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.34 | 1.66 | 3.83 | 20 | h6 | H9 |
| 860.1-0920-035A1-MM | ● | 9.20 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.33 | 1.67 | 3.80 | 20 | h6 | H9 |
| 860.1-0930-035A1-MM | ● | 9.30 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.31 | 1.69 | 3.76 | 20 | h6 | H9 |
| 860.1-0940-035A1-MM | ● | 9.40 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.29 | 1.71 | 3.72 | 20 | h6 | H9 |
| 860.1-0950-035A1-MM | ● | 9.50 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.27 | 1.73 | 3.68 | 20 | h6 | H9 |
| 860.1-0953-035A1-MM | ● | 9.52 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.27 | 1.73 | 3.67 | 20 | h6 | H9 |
| 860.1-0960-035A1-MM | ● | 9.60 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.25 | 1.75 | 3.65 | 20 | h6 | H9 |
| 860.1-0970-035A1-MM | ● | 9.70 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.24 | 1.76 | 3.61 | 20 | h6 | H9 |
| 860.1-0980-035A1-MM | ● | 9.80 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.22 | 1.78 | 3.57 | 20 | h6 | H9 |
| 860.1-0990-035A1-MM | ● | 9.90 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.20 | 1.80 | 3.54 | 20 | h6 | H9 |
| 860.1-0992-035A1-MM | ● | 9.92 | 35.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.19 | 1.80 | 3.53 | 20 | h6 | H9 |
| 860.1-1010-040A1-MM | ● | 10.10 | 40.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.16 | 1.84 | 3.96 | 20 | h6 | H9 |
● — первый выбор, ○ — хороший выбор.
