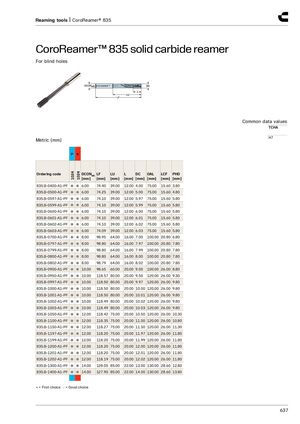

Инструменты для развёртывания | CoroReamer® 835
Твердосплавная цельная развёртка CoroReamer™ 835
Для глухих отверстий
| Общие значения | |
|---|---|
| TCHA | H7 |
| Metric (mm) | P | K |
|---|---|---|
| 1024 | 1024 |
| Код заказа | P | K | DCONMS | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 835.B-0400-A1-PF | ● | ● | 6.00 | 74.40 | 39.00 | 12.00 | 4.00 | 75.00 | 15.60 | 3.80 |
| 835.B-0500-A1-PF | ● | ● | 6.00 | 74.25 | 39.00 | 12.00 | 5.00 | 75.00 | 15.60 | 4.80 |
| 835.B-0597-A1-PF | ● | ● | 6.00 | 74.10 | 39.00 | 12.00 | 5.97 | 75.00 | 15.60 | 5.80 |
| 835.B-0599-A1-PF | ● | ● | 6.00 | 74.10 | 39.00 | 12.00 | 5.99 | 75.00 | 15.60 | 5.80 |
| 835.B-0600-A1-PF | ● | ● | 6.00 | 74.10 | 39.00 | 12.00 | 6.00 | 75.00 | 15.60 | 5.80 |
| 835.B-0601-A1-PF | ● | ● | 6.00 | 74.10 | 39.00 | 12.00 | 6.01 | 75.00 | 15.60 | 5.80 |
| 835.B-0602-A1-PF | ● | ● | 6.00 | 74.10 | 39.00 | 12.00 | 6.02 | 75.00 | 15.60 | 5.80 |
| 835.B-0603-A1-PF | ● | ● | 6.00 | 74.09 | 39.00 | 12.00 | 6.03 | 75.00 | 15.60 | 5.80 |
| 835.B-0700-A1-PF | ● | ● | 8.00 | 98.95 | 64.00 | 16.00 | 7.00 | 100.00 | 20.80 | 6.80 |
| 835.B-0797-A1-PF | ● | ● | 8.00 | 98.80 | 64.00 | 16.00 | 7.97 | 100.00 | 20.80 | 7.80 |
| 835.B-0799-A1-PF | ● | ● | 8.00 | 98.80 | 64.00 | 16.00 | 7.99 | 100.00 | 20.80 | 7.80 |
| 835.B-0800-A1-PF | ● | ● | 8.00 | 98.80 | 64.00 | 16.00 | 8.00 | 100.00 | 20.80 | 7.80 |
| 835.B-0802-A1-PF | ● | ● | 8.00 | 98.79 | 64.00 | 16.00 | 8.02 | 100.00 | 20.80 | 7.80 |
| 835.B-0900-A1-PF | ● | ● | 10.00 | 98.65 | 60.00 | 20.00 | 9.00 | 100.00 | 26.00 | 8.80 |
| 835.B-0950-A1-PF | ● | ● | 10.00 | 118.57 | 80.00 | 20.00 | 9.50 | 120.00 | 26.00 | 9.30 |
| 835.B-0997-A1-PF | ● | ● | 10.00 | 118.50 | 80.00 | 20.00 | 9.97 | 120.00 | 26.00 | 9.80 |
| 835.B-1000-A1-PF | ● | ● | 10.00 | 118.50 | 80.00 | 20.00 | 10.00 | 120.00 | 26.00 | 9.80 |
| 835.B-1001-A1-PF | ● | ● | 10.00 | 118.50 | 80.00 | 20.00 | 10.01 | 120.00 | 26.00 | 9.80 |
| 835.B-1002-A1-PF | ● | ● | 10.00 | 118.49 | 80.00 | 20.00 | 10.02 | 120.00 | 26.00 | 9.80 |
| 835.B-1003-A1-PF | ● | ● | 10.00 | 118.49 | 80.00 | 20.00 | 10.03 | 120.00 | 26.00 | 9.80 |
| 835.B-1050-A1-PF | ● | ● | 12.00 | 118.42 | 75.00 | 20.00 | 10.50 | 120.00 | 26.00 | 10.30 |
| 835.B-1100-A1-PF | ● | ● | 12.00 | 118.35 | 75.00 | 20.00 | 11.00 | 120.00 | 26.00 | 10.80 |
| 835.B-1150-A1-PF | ● | ● | 12.00 | 118.27 | 75.00 | 20.00 | 11.50 | 120.00 | 26.00 | 11.30 |
| 835.B-1197-A1-PF | ● | ● | 12.00 | 118.20 | 75.00 | 20.00 | 11.97 | 120.00 | 26.00 | 11.80 |
| 835.B-1199-A1-PF | ● | ● | 12.00 | 118.20 | 75.00 | 20.00 | 11.99 | 120.00 | 26.00 | 11.80 |
| 835.B-1200-A1-PF | ● | ● | 12.00 | 118.20 | 75.00 | 20.00 | 12.00 | 120.00 | 26.00 | 11.80 |
| 835.B-1201-A1-PF | ● | ● | 12.00 | 118.20 | 75.00 | 20.00 | 12.01 | 120.00 | 26.00 | 11.80 |
| 835.B-1202-A1-PF | ● | ● | 12.00 | 118.19 | 75.00 | 20.00 | 12.02 | 120.00 | 26.00 | 11.80 |
| 835.B-1300-A1-PF | ● | ● | 14.00 | 128.05 | 85.00 | 22.00 | 13.00 | 130.00 | 28.60 | 12.80 |
| 835.B-1400-A1-PF | ● | ● | 14.00 | 127.90 | 85.00 | 22.00 | 14.00 | 130.00 | 28.60 | 13.80 |
● = первый выбор ○ = хороший выбор
