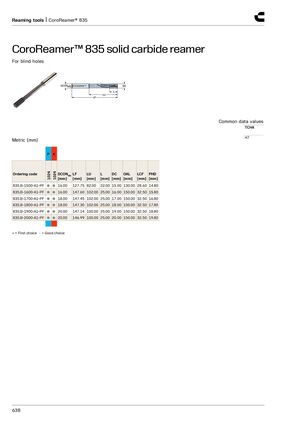

Инструменты для развёртывания | CoroReamer® 835
Твердосплавная цельная развёртка CoroReamer™ 835
Для глухих отверстий
| Общие значения | |
|---|---|
| TCHA | H7 |
| Metric (mm) | P | K |
|---|---|---|
| 1024 | 1024 |
| Код заказа | P | K | DCONMS | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 835.B-1500-A1-PF | ● | ● | 16.00 | 127.75 | 82.00 | 22.00 | 15.00 | 130.00 | 28.60 | 14.80 |
| 835.B-1600-A1-PF | ● | ● | 16.00 | 147.60 | 102.00 | 25.00 | 16.00 | 150.00 | 32.50 | 15.80 |
| 835.B-1700-A1-PF | ● | ● | 18.00 | 147.45 | 102.00 | 25.00 | 17.00 | 150.00 | 32.50 | 16.80 |
| 835.B-1800-A1-PF | ● | ● | 18.00 | 147.30 | 102.00 | 25.00 | 18.00 | 150.00 | 32.50 | 17.80 |
| 835.B-1900-A1-PF | ● | ● | 20.00 | 147.14 | 100.00 | 25.00 | 19.00 | 150.00 | 32.50 | 18.80 |
| 835.B-2000-A1-PF | ● | ● | 20.00 | 146.99 | 100.00 | 25.00 | 20.00 | 150.00 | 32.50 | 19.80 |
● = первый выбор ○ = хороший выбор
