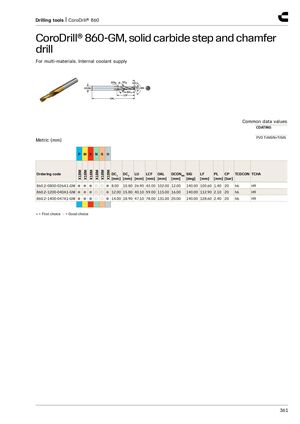

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-GM, сверло из твёрдого сплава со ступенью и фаской
Для различных материалов. Внутренняя подача СОЖ.
Общие значения данных
Покрытие: PVD TiAlSiN+TiSiN
Метрическая система (мм). Группы обрабатываемых материалов: P M K N S H, вариант X1BM.
| Код заказа | P | M | K | N | S | H | DC1 [мм] | DC2 [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.2-0800-026A1-GM | ● | ● | ● | ○ | ○ | ● | 8.00 | 10.80 | 26.90 | 42.00 | 102.00 | 12.00 | 140.00 | 100.60 | 1.40 | 20 | h6 | H9 |
| 860.2-1200-040A1-GM | ● | ● | ● | ○ | ○ | ● | 12.00 | 15.80 | 40.10 | 59.00 | 115.00 | 16.00 | 140.00 | 112.90 | 2.10 | 20 | h6 | H9 |
| 860.2-1400-047A1-GM | ● | ● | ● | ○ | ○ | ● | 14.00 | 18.90 | 47.10 | 78.00 | 131.00 | 20.00 | 140.00 | 128.60 | 2.40 | 20 | h6 | H9 |
● — первый выбор, ○ — хороший выбор
