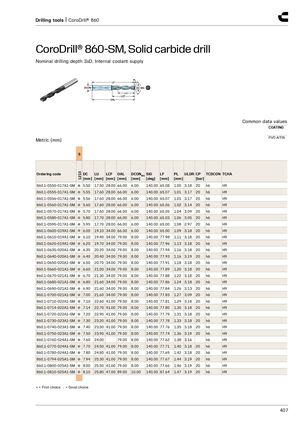

CoroDrill® 860-SM, твердосплавное сверло цельное
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие данные
ПОКРЫТИЕ
PVD AlTiN
Метрическая система (мм)
S
1210
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-0550-017A1-SM | 5.50 | 17.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.08 | 1.00 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0555-017A1-SM | 5.55 | 17.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.07 | 1.01 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0556-017A1-SM | 5.56 | 17.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.07 | 1.01 | 3.17 | 20 | h6 | H9 |
| ● | 860.1-0560-017A1-SM | 5.60 | 17.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.06 | 1.02 | 3.14 | 20 | h6 | H9 |
| ● | 860.1-0570-017A1-SM | 5.70 | 17.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.05 | 1.04 | 3.09 | 20 | h6 | H9 |
| ● | 860.1-0580-017A1-SM | 5.80 | 17.70 | 28.00 | 66.00 | 6.00 | 140.00 | 65.03 | 1.06 | 3.05 | 20 | h6 | H9 |
| ● | 860.1-0595-017A1-SM | 5.95 | 17.70 | 28.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.08 | 2.97 | 20 | h6 | H9 |
| ● | 860.1-0600-019A1-SM | 6.00 | 19.10 | 34.00 | 66.00 | 6.00 | 140.00 | 65.00 | 1.09 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0610-019A1-SM | 6.10 | 19.40 | 34.00 | 79.00 | 8.00 | 140.00 | 77.98 | 1.11 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0620-019A1-SM | 6.20 | 19.70 | 34.00 | 79.00 | 8.00 | 140.00 | 77.96 | 1.13 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0635-020A1-SM | 6.35 | 20.20 | 34.00 | 79.00 | 8.00 | 140.00 | 77.94 | 1.16 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0640-020A1-SM | 6.40 | 20.40 | 34.00 | 79.00 | 8.00 | 140.00 | 77.93 | 1.16 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0650-020A1-SM | 6.50 | 20.70 | 34.00 | 79.00 | 8.00 | 140.00 | 77.91 | 1.18 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0660-021A1-SM | 6.60 | 21.00 | 34.00 | 79.00 | 8.00 | 140.00 | 77.89 | 1.20 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0670-021A1-SM | 6.70 | 21.30 | 34.00 | 79.00 | 8.00 | 140.00 | 77.88 | 1.22 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0680-021A1-SM | 6.80 | 21.60 | 34.00 | 79.00 | 8.00 | 140.00 | 77.86 | 1.24 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0690-021A1-SM | 6.90 | 21.60 | 34.00 | 79.00 | 8.00 | 140.00 | 77.84 | 1.26 | 3.13 | 20 | h6 | H9 |
| ● | 860.1-0700-021A1-SM | 7.00 | 21.60 | 34.00 | 79.00 | 8.00 | 140.00 | 77.83 | 1.27 | 3.09 | 20 | h6 | H9 |
| ● | 860.1-0710-022A1-SM | 7.10 | 22.60 | 41.00 | 79.00 | 8.00 | 140.00 | 77.81 | 1.29 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0714-022A1-SM | 7.14 | 22.70 | 41.00 | 79.00 | 8.00 | 140.00 | 77.80 | 1.30 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0720-022A1-SM | 7.20 | 22.90 | 41.00 | 79.00 | 8.00 | 140.00 | 77.79 | 1.31 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0730-023A1-SM | 7.30 | 23.20 | 41.00 | 79.00 | 8.00 | 140.00 | 77.78 | 1.33 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0740-023A1-SM | 7.40 | 23.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.76 | 1.35 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0750-023A1-SM | 7.50 | 23.90 | 41.00 | 79.00 | 8.00 | 140.00 | 77.74 | 1.36 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0760-024A1-SM | 7.60 | 24.00 | 79.00 | 8.00 | 140.00 | 77.62 | 1.38 | 3.16 | h6 | H9 | ||
| ● | 860.1-0770-024A1-SM | 7.70 | 24.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.71 | 1.40 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0780-024A1-SM | 7.80 | 24.80 | 41.00 | 79.00 | 8.00 | 140.00 | 77.69 | 1.42 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0794-025A1-SM | 7.94 | 25.30 | 41.00 | 79.00 | 8.00 | 140.00 | 77.67 | 1.44 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0800-025A1-SM | 8.00 | 25.50 | 41.00 | 79.00 | 8.00 | 140.00 | 77.66 | 1.46 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0810-025A1-SM | 8.10 | 25.80 | 47.00 | 89.00 | 10.00 | 140.00 | 87.64 | 1.47 | 3.19 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
