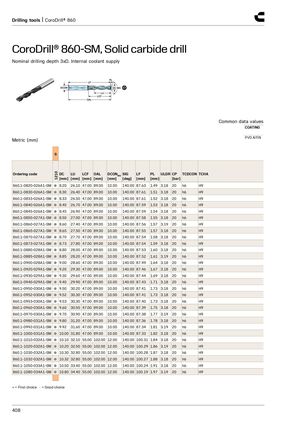

CoroDrill® 860-SM, твердосплавное сверло цельное
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие данные
ПОКРЫТИЕ
PVD AlTiN
Метрическая система (мм)
S
1210
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-0820-026A1-SM | 8.20 | 26.10 | 47.00 | 89.00 | 10.00 | 140.00 | 87.63 | 1.49 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0830-026A1-SM | 8.30 | 26.40 | 47.00 | 89.00 | 10.00 | 140.00 | 87.61 | 1.51 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0833-026A1-SM | 8.33 | 26.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.61 | 1.52 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0840-026A1-SM | 8.40 | 26.70 | 47.00 | 89.00 | 10.00 | 140.00 | 87.59 | 1.53 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0845-026A1-SM | 8.45 | 26.90 | 47.00 | 89.00 | 10.00 | 140.00 | 87.59 | 1.54 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0850-027A1-SM | 8.50 | 27.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.58 | 1.55 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0860-027A1-SM | 8.60 | 27.40 | 47.00 | 89.00 | 10.00 | 140.00 | 87.56 | 1.57 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0865-027A1-SM | 8.65 | 27.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.55 | 1.57 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0870-027A1-SM | 8.70 | 27.70 | 47.00 | 89.00 | 10.00 | 140.00 | 87.54 | 1.58 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0873-027A1-SM | 8.73 | 27.80 | 47.00 | 89.00 | 10.00 | 140.00 | 87.54 | 1.59 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0880-028A1-SM | 8.80 | 28.00 | 47.00 | 89.00 | 10.00 | 140.00 | 87.53 | 1.60 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0885-028A1-SM | 8.85 | 28.20 | 47.00 | 89.00 | 10.00 | 140.00 | 87.52 | 1.61 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0900-028A1-SM | 9.00 | 28.60 | 47.00 | 89.00 | 10.00 | 140.00 | 87.49 | 1.64 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0920-029A1-SM | 9.20 | 29.30 | 47.00 | 89.00 | 10.00 | 140.00 | 87.46 | 1.67 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0930-029A1-SM | 9.30 | 29.60 | 47.00 | 89.00 | 10.00 | 140.00 | 87.44 | 1.69 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0940-029A1-SM | 9.40 | 29.90 | 47.00 | 89.00 | 10.00 | 140.00 | 87.43 | 1.71 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0950-030A1-SM | 9.50 | 30.20 | 47.00 | 89.00 | 10.00 | 140.00 | 87.41 | 1.73 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0952-030A1-SM | 9.52 | 30.30 | 47.00 | 89.00 | 10.00 | 140.00 | 87.41 | 1.73 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0953-030A1-SM | 9.53 | 30.30 | 47.00 | 89.00 | 10.00 | 140.00 | 87.40 | 1.73 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0960-030A1-SM | 9.60 | 30.50 | 47.00 | 89.00 | 10.00 | 140.00 | 87.39 | 1.75 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0970-030A1-SM | 9.70 | 30.90 | 47.00 | 89.00 | 10.00 | 140.00 | 87.38 | 1.77 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-0980-031A1-SM | 9.80 | 31.20 | 47.00 | 89.00 | 10.00 | 140.00 | 87.36 | 1.78 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-0992-031A1-SM | 9.92 | 31.60 | 47.00 | 89.00 | 10.00 | 140.00 | 87.34 | 1.81 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-1000-031A1-SM | 10.00 | 31.80 | 47.00 | 89.00 | 10.00 | 140.00 | 87.33 | 1.82 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1010-032A1-SM | 10.10 | 32.10 | 55.00 | 102.00 | 12.00 | 140.00 | 100.31 | 1.84 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1020-032A1-SM | 10.20 | 32.50 | 55.00 | 102.00 | 12.00 | 140.00 | 100.29 | 1.86 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-1030-032A1-SM | 10.30 | 32.80 | 55.00 | 102.00 | 12.00 | 140.00 | 100.28 | 1.87 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1032-032A1-SM | 10.32 | 32.80 | 55.00 | 102.00 | 12.00 | 140.00 | 100.27 | 1.88 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1050-033A1-SM | 10.50 | 33.40 | 55.00 | 102.00 | 12.00 | 140.00 | 100.24 | 1.91 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1080-034A1-SM | 10.80 | 34.40 | 55.00 | 102.00 | 12.00 | 140.00 | 100.19 | 1.97 | 3.19 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
