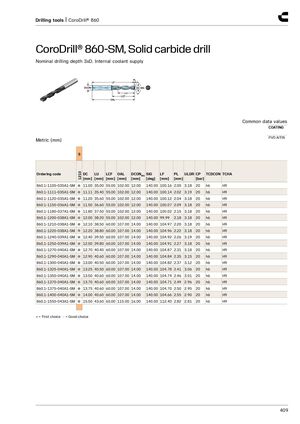

CoroDrill® 860-SM, твердосплавное сверло цельное
Номинальная глубина сверления 3xD. Внутренняя подача СОЖ.
Общие данные
ПОКРЫТИЕ
PVD AlTiN
Метрическая система (мм)
S
1210
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-1100-035A1-SM | 11.00 | 35.00 | 55.00 | 102.00 | 12.00 | 140.00 | 100.16 | 2.00 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1111-035A1-SM | 11.11 | 35.40 | 55.00 | 102.00 | 12.00 | 140.00 | 100.14 | 2.02 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-1120-035A1-SM | 11.20 | 35.60 | 55.00 | 102.00 | 12.00 | 140.00 | 100.12 | 2.04 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1150-036A1-SM | 11.50 | 36.60 | 55.00 | 102.00 | 12.00 | 140.00 | 100.07 | 2.09 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1180-037A1-SM | 11.80 | 37.50 | 55.00 | 102.00 | 12.00 | 140.00 | 100.02 | 2.15 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1200-038A1-SM | 12.00 | 38.20 | 55.00 | 102.00 | 12.00 | 140.00 | 99.99 | 2.18 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1210-038A1-SM | 12.10 | 38.50 | 60.00 | 107.00 | 14.00 | 140.00 | 104.97 | 2.20 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1220-038A1-SM | 12.20 | 38.80 | 60.00 | 107.00 | 14.00 | 140.00 | 104.96 | 2.22 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1240-039A1-SM | 12.40 | 39.50 | 60.00 | 107.00 | 14.00 | 140.00 | 104.92 | 2.26 | 3.19 | 20 | h6 | H9 |
| ● | 860.1-1250-039A1-SM | 12.50 | 39.80 | 60.00 | 107.00 | 14.00 | 140.00 | 104.91 | 2.27 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1270-040A1-SM | 12.70 | 40.40 | 60.00 | 107.00 | 14.00 | 140.00 | 104.87 | 2.31 | 3.18 | 20 | h6 | H9 |
| ● | 860.1-1290-040A1-SM | 12.90 | 40.60 | 60.00 | 107.00 | 14.00 | 140.00 | 104.84 | 2.35 | 3.15 | 20 | h6 | H9 |
| ● | 860.1-1300-040A1-SM | 13.00 | 40.50 | 60.00 | 107.00 | 14.00 | 140.00 | 104.82 | 2.37 | 3.12 | 20 | h6 | H9 |
| ● | 860.1-1325-040A1-SM | 13.25 | 40.50 | 60.00 | 107.00 | 14.00 | 140.00 | 104.78 | 2.41 | 3.06 | 20 | h6 | H9 |
| ● | 860.1-1350-040A1-SM | 13.50 | 40.60 | 60.00 | 107.00 | 14.00 | 140.00 | 104.74 | 2.46 | 3.01 | 20 | h6 | H9 |
| ● | 860.1-1370-040A1-SM | 13.70 | 40.60 | 60.00 | 107.00 | 14.00 | 140.00 | 104.71 | 2.49 | 2.96 | 20 | h6 | H9 |
| ● | 860.1-1375-040A1-SM | 13.75 | 40.60 | 60.00 | 107.00 | 14.00 | 140.00 | 104.70 | 2.50 | 2.95 | 20 | h6 | H9 |
| ● | 860.1-1400-040A1-SM | 14.00 | 40.60 | 60.00 | 107.00 | 14.00 | 140.00 | 104.66 | 2.55 | 2.90 | 20 | h6 | H9 |
| ● | 860.1-1550-043A1-SM | 15.50 | 43.60 | 65.00 | 115.00 | 16.00 | 140.00 | 112.40 | 2.82 | 2.81 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
