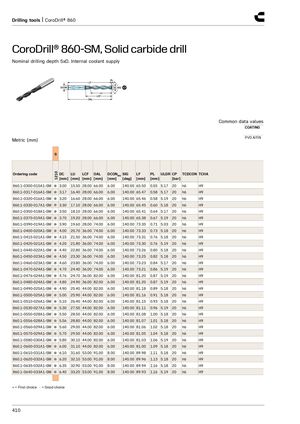

CoroDrill® 860-SM, твердосплавное сверло цельное
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ.
Общие данные
ПОКРЫТИЕ
PVD AlTiN
Метрическая система (мм)
S
1210
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-0300-015A1-SM | 3.00 | 15.50 | 28.00 | 66.00 | 6.00 | 140.00 | 65.50 | 0.55 | 5.17 | 20 | h6 | H9 |
| ● | 860.1-0317-016A1-SM | 3.17 | 16.40 | 28.00 | 66.00 | 6.00 | 140.00 | 65.47 | 0.58 | 5.17 | 20 | h6 | H9 |
| ● | 860.1-0320-016A1-SM | 3.20 | 16.60 | 28.00 | 66.00 | 6.00 | 140.00 | 65.46 | 0.58 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0330-017A1-SM | 3.30 | 17.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.45 | 0.60 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0350-018A1-SM | 3.50 | 18.10 | 28.00 | 66.00 | 6.00 | 140.00 | 65.41 | 0.64 | 5.17 | 20 | h6 | H9 |
| ● | 860.1-0370-019A1-SM | 3.70 | 19.20 | 28.00 | 66.00 | 6.00 | 140.00 | 65.38 | 0.67 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0390-019A1-SM | 3.90 | 19.60 | 28.00 | 74.00 | 6.00 | 140.00 | 73.35 | 0.71 | 5.03 | 20 | h6 | H9 |
| ● | 860.1-0400-020A1-SM | 4.00 | 20.70 | 36.00 | 74.00 | 6.00 | 140.00 | 73.33 | 0.73 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0415-021A1-SM | 4.15 | 21.50 | 36.00 | 74.00 | 6.00 | 140.00 | 73.31 | 0.76 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0420-021A1-SM | 4.20 | 21.80 | 36.00 | 74.00 | 6.00 | 140.00 | 73.30 | 0.76 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0440-022A1-SM | 4.40 | 22.80 | 36.00 | 74.00 | 6.00 | 140.00 | 73.26 | 0.80 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0450-023A1-SM | 4.50 | 23.30 | 36.00 | 74.00 | 6.00 | 140.00 | 73.25 | 0.82 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0460-023A1-SM | 4.60 | 23.80 | 36.00 | 74.00 | 6.00 | 140.00 | 73.23 | 0.84 | 5.17 | 20 | h6 | H9 |
| ● | 860.1-0470-024A1-SM | 4.70 | 24.40 | 36.00 | 74.00 | 6.00 | 140.00 | 73.21 | 0.86 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0476-024A1-SM | 4.76 | 24.70 | 36.00 | 82.00 | 6.00 | 140.00 | 81.20 | 0.87 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0480-024A1-SM | 4.80 | 24.90 | 36.00 | 82.00 | 6.00 | 140.00 | 81.20 | 0.87 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0490-025A1-SM | 4.90 | 25.40 | 44.00 | 82.00 | 6.00 | 140.00 | 81.18 | 0.89 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0500-025A1-SM | 5.00 | 25.90 | 44.00 | 82.00 | 6.00 | 140.00 | 81.16 | 0.91 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0510-026A1-SM | 5.10 | 26.40 | 44.00 | 82.00 | 6.00 | 140.00 | 81.15 | 0.93 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0530-027A1-SM | 5.30 | 27.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.11 | 0.96 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0550-028A1-SM | 5.50 | 28.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.08 | 1.00 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0556-028A1-SM | 5.56 | 28.80 | 44.00 | 82.00 | 6.00 | 140.00 | 81.07 | 1.01 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0560-029A1-SM | 5.60 | 29.00 | 44.00 | 82.00 | 6.00 | 140.00 | 81.06 | 1.02 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0570-029A1-SM | 5.70 | 29.50 | 44.00 | 82.00 | 6.00 | 140.00 | 81.05 | 1.04 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0580-030A1-SM | 5.80 | 30.10 | 44.00 | 82.00 | 6.00 | 140.00 | 81.03 | 1.06 | 5.19 | 20 | h6 | H9 |
| ● | 860.1-0600-031A1-SM | 6.00 | 31.10 | 44.00 | 82.00 | 6.00 | 140.00 | 81.00 | 1.09 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0610-031A1-SM | 6.10 | 31.60 | 53.00 | 91.00 | 8.00 | 140.00 | 89.98 | 1.11 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0620-032A1-SM | 6.20 | 32.10 | 53.00 | 91.00 | 8.00 | 140.00 | 89.96 | 1.13 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0635-032A1-SM | 6.35 | 32.90 | 53.00 | 91.00 | 8.00 | 140.00 | 89.94 | 1.16 | 5.18 | 20 | h6 | H9 |
| ● | 860.1-0640-033A1-SM | 6.40 | 33.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.93 | 1.16 | 5.19 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
