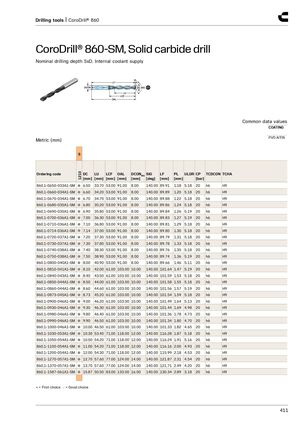

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-SM, сверло из твёрдого сплава
Номинальная глубина сверления 5xD. Внутренняя подача СОЖ.
Общие данные
ПОКРЫТИЕ
PVD AlTiN
Метрическая система (мм)
S 1210
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0650-033A1-SM ● | 6.50 | 33.70 | 53.00 | 91.00 | 8.00 | 140.00 | 89.91 | 1.18 | 5.18 | 20 | h6 | H9 |
| 860.1-0660-034A1-SM ● | 6.60 | 34.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.89 | 1.20 | 5.18 | 20 | h6 | H9 |
| 860.1-0670-034A1-SM ● | 6.70 | 34.70 | 53.00 | 91.00 | 8.00 | 140.00 | 89.88 | 1.22 | 5.18 | 20 | h6 | H9 |
| 860.1-0680-035A1-SM ● | 6.80 | 35.20 | 53.00 | 91.00 | 8.00 | 140.00 | 89.86 | 1.24 | 5.18 | 20 | h6 | H9 |
| 860.1-0690-035A1-SM ● | 6.90 | 35.80 | 53.00 | 91.00 | 8.00 | 140.00 | 89.84 | 1.26 | 5.19 | 20 | h6 | H9 |
| 860.1-0700-036A1-SM ● | 7.00 | 36.30 | 53.00 | 91.00 | 8.00 | 140.00 | 89.83 | 1.27 | 5.19 | 20 | h6 | H9 |
| 860.1-0710-036A1-SM ● | 7.10 | 36.80 | 53.00 | 91.00 | 8.00 | 140.00 | 89.81 | 1.29 | 5.18 | 20 | h6 | H9 |
| 860.1-0714-036A1-SM ● | 7.14 | 37.00 | 53.00 | 91.00 | 8.00 | 140.00 | 89.80 | 1.30 | 5.18 | 20 | h6 | H9 |
| 860.1-0720-037A1-SM ● | 7.20 | 37.30 | 53.00 | 91.00 | 8.00 | 140.00 | 89.79 | 1.31 | 5.18 | 20 | h6 | H9 |
| 860.1-0730-037A1-SM ● | 7.30 | 37.80 | 53.00 | 91.00 | 8.00 | 140.00 | 89.78 | 1.33 | 5.18 | 20 | h6 | H9 |
| 860.1-0740-038A1-SM ● | 7.40 | 38.30 | 53.00 | 91.00 | 8.00 | 140.00 | 89.76 | 1.35 | 5.18 | 20 | h6 | H9 |
| 860.1-0750-038A1-SM ● | 7.50 | 38.90 | 53.00 | 91.00 | 8.00 | 140.00 | 89.74 | 1.36 | 5.19 | 20 | h6 | H9 |
| 860.1-0800-040A1-SM ● | 8.00 | 40.90 | 53.00 | 91.00 | 8.00 | 140.00 | 89.66 | 1.46 | 5.11 | 20 | h6 | H9 |
| 860.1-0810-041A1-SM ● | 8.10 | 42.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.64 | 1.47 | 5.19 | 20 | h6 | H9 |
| 860.1-0840-043A1-SM ● | 8.40 | 43.50 | 61.00 | 103.00 | 10.00 | 140.00 | 101.59 | 1.53 | 5.18 | 20 | h6 | H9 |
| 860.1-0850-044A1-SM ● | 8.50 | 44.00 | 61.00 | 103.00 | 10.00 | 140.00 | 101.58 | 1.55 | 5.18 | 20 | h6 | H9 |
| 860.1-0860-044A1-SM ● | 8.60 | 44.60 | 61.00 | 103.00 | 10.00 | 140.00 | 101.56 | 1.57 | 5.19 | 20 | h6 | H9 |
| 860.1-0873-045A1-SM ● | 8.73 | 45.20 | 61.00 | 103.00 | 10.00 | 140.00 | 101.54 | 1.59 | 5.18 | 20 | h6 | H9 |
| 860.1-0900-046A1-SM ● | 9.00 | 46.20 | 61.00 | 103.00 | 10.00 | 140.00 | 101.49 | 1.64 | 5.13 | 20 | h6 | H9 |
| 860.1-0930-046A1-SM ● | 9.30 | 46.30 | 61.00 | 103.00 | 10.00 | 140.00 | 101.44 | 1.69 | 4.98 | 20 | h6 | H9 |
| 860.1-0980-046A1-SM ● | 9.80 | 46.40 | 61.00 | 103.00 | 10.00 | 140.00 | 101.36 | 1.78 | 4.73 | 20 | h6 | H9 |
| 860.1-0990-046A1-SM ● | 9.90 | 46.50 | 61.00 | 103.00 | 10.00 | 140.00 | 101.34 | 1.80 | 4.70 | 20 | h6 | H9 |
| 860.1-1000-046A1-SM ● | 10.00 | 46.50 | 61.00 | 103.00 | 10.00 | 140.00 | 101.33 | 1.82 | 4.65 | 20 | h6 | H9 |
| 860.1-1030-053A1-SM ● | 10.30 | 53.40 | 71.00 | 118.00 | 12.00 | 140.00 | 116.28 | 1.87 | 5.18 | 20 | h6 | H9 |
| 860.1-1050-054A1-SM ● | 10.50 | 54.20 | 71.00 | 118.00 | 12.00 | 140.00 | 116.24 | 1.91 | 5.16 | 20 | h6 | H9 |
| 860.1-1100-054A1-SM ● | 11.00 | 54.20 | 71.00 | 118.00 | 12.00 | 140.00 | 116.16 | 2.00 | 4.93 | 20 | h6 | H9 |
| 860.1-1200-054A1-SM ● | 12.00 | 54.30 | 71.00 | 118.00 | 12.00 | 140.00 | 115.99 | 2.18 | 4.53 | 20 | h6 | H9 |
| 860.1-1270-057A1-SM ● | 12.70 | 57.60 | 77.00 | 124.00 | 14.00 | 140.00 | 121.87 | 2.31 | 4.54 | 20 | h6 | H9 |
| 860.1-1370-057A1-SM ● | 13.70 | 57.60 | 77.00 | 124.00 | 14.00 | 140.00 | 121.71 | 2.49 | 4.20 | 20 | h6 | H9 |
| 860.1-1587-061A1-SM ● | 15.87 | 50.50 | 83.00 | 133.00 | 16.00 | 140.00 | 130.34 | 2.89 | 3.18 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
