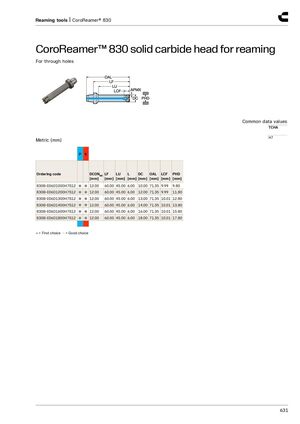

Инструменты для развёртывания | CoroReamer® 830
Твердосплавная головка CoroReamer™ 830 для развёртывания
Для сквозных отверстий
| Общие значения | |
|---|---|
| TCHA | H7 |
| Код заказа | P | K | DCONMS | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 830B-E06D1000H7S12 | ● | ● | 12.00 | 60.00 | 45.00 | 6.00 | 10.00 | 71.35 | 9.99 | 9.80 |
| 830B-E06D1200H7S12 | ● | ● | 12.00 | 60.00 | 45.00 | 6.00 | 12.00 | 71.35 | 9.99 | 11.80 |
| 830B-E06D1300H7S12 | ● | ● | 12.00 | 60.00 | 45.00 | 6.00 | 13.00 | 71.35 | 10.01 | 12.80 |
| 830B-E06D1400H7S12 | ● | ● | 12.00 | 60.00 | 45.00 | 6.00 | 14.00 | 71.35 | 10.01 | 13.80 |
| 830B-E06D1600H7S12 | ● | ● | 12.00 | 60.00 | 45.00 | 6.00 | 16.00 | 71.35 | 10.01 | 15.80 |
| 830B-E06D1800H7S12 | ● | ● | 12.00 | 60.00 | 45.00 | 6.00 | 18.00 | 71.35 | 10.01 | 17.80 |
● = первый выбор ○ = хороший выбор
