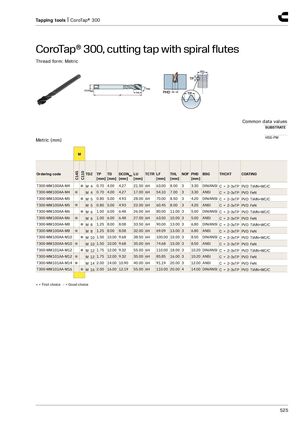

CoroTap® 300, резьбонарезной метчик со спиральными канавками
Форма резьбы: метрическая
Общие значения
Подложка: HSS-PM
Метрические размеры (мм)
| Условное обозначение | Группа M | Резьба | TP, мм | TD, мм | DCONMS, мм | LU, мм | Допуск | LF, мм | THL, мм | NOF | PHD, мм | Стандарт / THCHT | Покрытие |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-MM100AA-M4 | ● | M4 | 0.70 | 4.00 | 4.27 | 21.50 | 6H | 63.00 | 8.00 | 3 | 3.30 | DIN/ANSI, C = 2–3×TP | PVD TiAlN+WC/C |
| T300-MM100AA-M4 | ● | M4 | 0.70 | 4.00 | 4.27 | 17.00 | 6H | 54.10 | 7.00 | 3 | 3.30 | ANSI, C = 2–3×TP | PVD FeN |
| T300-MM100AA-M5 | ● | M5 | 0.80 | 5.00 | 4.93 | 28.00 | 6H | 70.00 | 8.50 | 3 | 4.20 | DIN/ANSI, C = 2–3×TP | PVD TiAlN+WC/C |
| T300-MM100AA-M5 | ● | M5 | 0.80 | 5.00 | 4.93 | 22.00 | 6H | 60.45 | 8.00 | 3 | 4.20 | ANSI, C = 2–3×TP | PVD FeN |
| T300-MM100AA-M6 | ● | M6 | 1.00 | 6.00 | 6.48 | 26.00 | 6H | 80.00 | 11.00 | 3 | 5.00 | DIN/ANSI, C = 2–3×TP | PVD TiAlN+WC/C |
| T300-MM100AA-M6 | ● | M6 | 1.00 | 6.00 | 6.48 | 27.00 | 6H | 63.50 | 10.00 | 3 | 5.00 | ANSI, C = 2–3×TP | PVD FeN |
| T300-MM100AA-M8 | ● | M8 | 1.25 | 8.00 | 8.08 | 33.50 | 6H | 90.00 | 13.00 | 3 | 6.80 | DIN/ANSI, C = 2–3×TP | PVD TiAlN+WC/C |
| T300-MM100AA-M8 | ● | M8 | 1.25 | 8.00 | 8.08 | 32.00 | 6H | 69.09 | 13.00 | 3 | 6.80 | ANSI, C = 2–3×TP | PVD FeN |
| T300-MM100AA-M10 | ● | M10 | 1.50 | 10.00 | 9.68 | 38.50 | 6H | 100.00 | 15.00 | 3 | 8.50 | DIN/ANSI, C = 2–3×TP | PVD TiAlN+WC/C |
| T300-MM100AA-M10 | ● | M10 | 1.50 | 10.00 | 9.68 | 35.00 | 6H | 74.68 | 15.00 | 3 | 8.50 | ANSI, C = 2–3×TP | PVD FeN |
| T300-MM101AA-M12 | ● | M12 | 1.75 | 12.00 | 9.32 | 55.00 | 6H | 110.00 | 18.00 | 3 | 10.20 | DIN/ANSI, C = 2–3×TP | PVD TiAlN+WC/C |
| T300-MM101AA-M12 | ● | M12 | 1.75 | 12.00 | 9.32 | 35.00 | 6H | 85.85 | 16.00 | 3 | 10.20 | ANSI, C = 2–3×TP | PVD FeN |
| T300-MM101AA-M14 | ● | M14 | 2.00 | 14.00 | 10.90 | 40.00 | 6H | 91.19 | 20.00 | 3 | 12.00 | ANSI, C = 2–3×TP | PVD FeN |
| T300-MM101AA-M16 | ● | M16 | 2.00 | 16.00 | 12.19 | 55.00 | 6H | 110.00 | 20.00 | 4 | 14.00 | DIN/ANSI, C = 2–3×TP | PVD TiAlN+WC/C |
● = первый выбор, ○ = хороший выбор.
