Инструменты для развёртывания | CoroReamer® 435

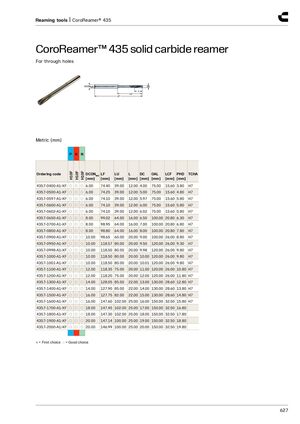

Твердосплавная цельная развёртка CoroReamer™ 435
Для сквозных отверстий
| Metric (mm) | P | K | N |
|---|---|---|---|
| H10F | H10F | H10F |
| Код заказа | P | K | N | DCONMS | LF [mm] | LU [mm] | L [mm] | DC [mm] | OAL [mm] | LCF [mm] | PHD [mm] | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 435.T-0400-A1-XF | ○ | ○ | ○ | 6.00 | 74.40 | 39.00 | 12.00 | 4.00 | 75.00 | 15.60 | 3.80 | H7 |
| 435.T-0500-A1-XF | ○ | ○ | ○ | 6.00 | 74.25 | 39.00 | 12.00 | 5.00 | 75.00 | 15.60 | 4.80 | H7 |
| 435.T-0597-A1-XF | ○ | ○ | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 5.97 | 75.00 | 15.60 | 5.80 | H7 |
| 435.T-0600-A1-XF | ○ | ○ | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 6.00 | 75.00 | 15.60 | 5.80 | H7 |
| 435.T-0602-A1-XF | ○ | ○ | ○ | 6.00 | 74.10 | 39.00 | 12.00 | 6.02 | 75.00 | 15.60 | 5.80 | H7 |
| 435.T-0650-A1-XF | ○ | ○ | ○ | 8.00 | 99.02 | 64.00 | 16.00 | 6.50 | 100.00 | 20.80 | 6.30 | H7 |
| 435.T-0700-A1-XF | ○ | ○ | ○ | 8.00 | 98.95 | 64.00 | 16.00 | 7.00 | 100.00 | 20.80 | 6.80 | H7 |
| 435.T-0800-A1-XF | ○ | ○ | ○ | 8.00 | 98.80 | 64.00 | 16.00 | 8.00 | 100.00 | 20.80 | 7.80 | H7 |
| 435.T-0900-A1-XF | ○ | ○ | ○ | 10.00 | 98.65 | 60.00 | 20.00 | 9.00 | 100.00 | 26.00 | 8.80 | H7 |
| 435.T-0950-A1-XF | ○ | ○ | ○ | 10.00 | 118.57 | 80.00 | 20.00 | 9.50 | 120.00 | 26.00 | 9.30 | H7 |
| 435.T-0998-A1-XF | ○ | ○ | ○ | 10.00 | 118.50 | 80.00 | 20.00 | 9.98 | 120.00 | 26.00 | 9.80 | H7 |
| 435.T-1000-A1-XF | ○ | ○ | ○ | 10.00 | 118.50 | 80.00 | 20.00 | 10.00 | 120.00 | 26.00 | 9.80 | H7 |
| 435.T-1001-A1-XF | ○ | ○ | ○ | 10.00 | 118.50 | 80.00 | 20.00 | 10.01 | 120.00 | 26.00 | 9.80 | H7 |
| 435.T-1100-A1-XF | ○ | ○ | ○ | 12.00 | 118.35 | 75.00 | 20.00 | 11.00 | 120.00 | 26.00 | 10.80 | H7 |
| 435.T-1200-A1-XF | ○ | ○ | ○ | 12.00 | 118.20 | 75.00 | 20.00 | 12.00 | 120.00 | 26.00 | 11.80 | H7 |
| 435.T-1300-A1-XF | ○ | ○ | ○ | 14.00 | 128.05 | 85.00 | 22.00 | 13.00 | 130.00 | 28.60 | 12.80 | H7 |
| 435.T-1400-A1-XF | ○ | ○ | ○ | 14.00 | 127.90 | 85.00 | 22.00 | 14.00 | 130.00 | 28.60 | 13.80 | H7 |
| 435.T-1500-A1-XF | ○ | ○ | ○ | 16.00 | 127.75 | 82.00 | 22.00 | 15.00 | 130.00 | 28.60 | 14.80 | H7 |
| 435.T-1600-A1-XF | ○ | ○ | ○ | 16.00 | 147.60 | 102.00 | 25.00 | 16.00 | 150.00 | 32.50 | 15.80 | H7 |
| 435.T-1700-A1-XF | ○ | ○ | ○ | 18.00 | 147.45 | 102.00 | 25.00 | 17.00 | 150.00 | 32.50 | 16.80 | |
| 435.T-1800-A1-XF | ○ | ○ | ○ | 18.00 | 147.30 | 102.00 | 25.00 | 18.00 | 150.00 | 32.50 | 17.80 | |
| 435.T-1900-A1-XF | ○ | ○ | ○ | 20.00 | 147.14 | 100.00 | 25.00 | 19.00 | 150.00 | 32.50 | 18.80 | |
| 435.T-2000-A1-XF | ○ | ○ | ○ | 20.00 | 146.99 | 100.00 | 25.00 | 20.00 | 150.00 | 32.50 | 19.80 |
● = первый выбор ○ = хороший выбор
