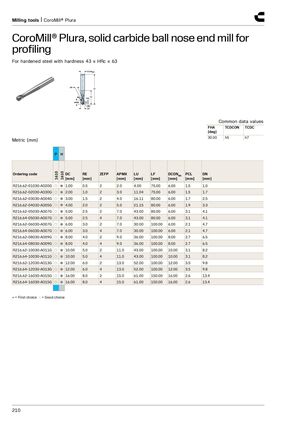

CoroMill® Plura, монолитная концевая фреза со сферическим торцом из твердого сплава для профильной обработки
Для закаленной стали твердостью 43 ≤ HRc ≤ 63.
Метрическая система (мм)
| Код заказа | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | PCL [мм] | DN [мм] |
|---|---|---|---|---|---|---|---|---|---|
| R216.62-01030-AO20G | 1.00 | 0.5 | 2 | 2.0 | 4.00 | 75.00 | 6.00 | 1.5 | 1.0 |
| R216.62-02030-AO30G | 2.00 | 1.0 | 2 | 3.0 | 11.04 | 75.00 | 6.00 | 1.5 | 1.7 |
| R216.62-03030-AO04G | 3.00 | 1.5 | 2 | 4.0 | 16.11 | 80.00 | 6.00 | 1.7 | 2.5 |
| R216.62-04030-AO05G | 4.00 | 2.0 | 2 | 5.0 | 21.15 | 80.00 | 6.00 | 1.9 | 3.3 |
| R216.62-05030-AO07G | 5.00 | 2.5 | 2 | 7.0 | 43.00 | 80.00 | 6.00 | 3.1 | 4.1 |
| R216.64-05030-AO07G | 5.00 | 2.5 | 4 | 7.0 | 43.00 | 80.00 | 6.00 | 3.1 | 4.1 |
| R216.62-06030-AO07G | 6.00 | 3.0 | 2 | 7.0 | 30.00 | 100.00 | 6.00 | 2.1 | 4.7 |
| R216.64-06030-AO07G | 6.00 | 3.0 | 4 | 7.0 | 30.00 | 100.00 | 6.00 | 2.1 | 4.7 |
| R216.62-08030-AO09G | 8.00 | 4.0 | 2 | 9.0 | 36.00 | 100.00 | 8.00 | 2.7 | 6.5 |
| R216.64-08030-AO09G | 8.00 | 4.0 | 4 | 9.0 | 36.00 | 100.00 | 8.00 | 2.7 | 6.5 |
| R216.62-10030-AO11G | 10.00 | 5.0 | 2 | 11.0 | 43.00 | 100.00 | 10.00 | 3.1 | 8.2 |
| R216.64-10030-AO11G | 10.00 | 5.0 | 4 | 11.0 | 43.00 | 100.00 | 10.00 | 3.1 | 8.2 |
| R216.62-12030-AO13G | 12.00 | 6.0 | 2 | 13.0 | 52.00 | 100.00 | 12.00 | 3.5 | 9.8 |
| R216.64-12030-AO13G | 12.00 | 6.0 | 4 | 13.0 | 52.00 | 100.00 | 12.00 | 3.5 | 9.8 |
| R216.62-16030-AO15G | 16.00 | 8.0 | 2 | 15.0 | 61.00 | 150.00 | 16.00 | 2.6 | 13.4 |
| R216.64-16030-AO15G | 16.00 | 8.0 | 4 | 15.0 | 61.00 | 150.00 | 16.00 | 2.6 | 13.4 |
● = Первый выбор ○ = Хороший выбор
