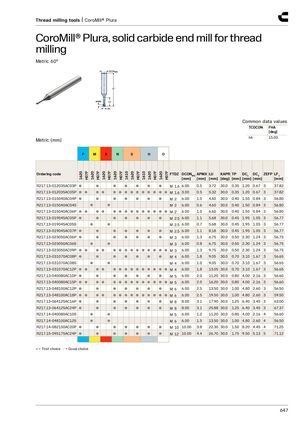

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
Метрическая 60°
Общие значения: TCDCON h6, FHA [deg] 15.00
| Ordering code | FTDZ | DCONMS [mm] | APMX [mm] | LU [mm] | KAPR [deg] | TP [mm] | DC 1 [mm] | DC 2 [mm] | ZEFP | LF 1 [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| R217.13-012035AC03P | M 1.6 | 6.00 | 0.5 | 3.72 | 30.0 | 0.35 | 1.20 | 0.67 | 3 | 37.82 |
| R217.13-012035AC05P | M 1.6 | 3.00 | 0.5 | 5.32 | 30.0 | 0.35 | 1.20 | 0.67 | 3 | 37.82 |
| R217.13-015040AC04P | M 2 | 6.00 | 1.0 | 4.60 | 30.0 | 0.40 | 1.55 | 0.84 | 3 | 56.80 |
| R217.13-015040AC04S | M 2 | 6.00 | 0.6 | 4.60 | 30.0 | 0.40 | 1.50 | 0.84 | 3 | 56.80 |
| R217.13-015040AC06P | M 2 | 6.00 | 1.0 | 6.60 | 30.0 | 0.40 | 1.55 | 0.84 | 3 | 56.80 |
| R217.13-019045AC05P | M 2.5 | 6.00 | 1.1 | 5.68 | 30.0 | 0.45 | 1.95 | 1.05 | 3 | 56.77 |
| R217.13-019045AC05S | M 2.5 | 6.00 | 0.7 | 5.68 | 30.0 | 0.45 | 1.95 | 1.05 | 3 | 56.77 |
| R217.13-019045AC07P | M 2.5 | 6.00 | 1.1 | 8.18 | 30.0 | 0.45 | 1.95 | 1.05 | 3 | 56.77 |
| R217.13-023050AC06P | M 3 | 6.00 | 1.3 | 6.75 | 30.0 | 0.50 | 2.30 | 1.24 | 3 | 56.75 |
| R217.13-023050AC06S | M 3 | 6.00 | 0.8 | 6.75 | 30.0 | 0.50 | 2.30 | 1.24 | 3 | 56.75 |
| R217.13-023050AC09P | M 3 | 6.00 | 1.3 | 9.75 | 30.0 | 0.50 | 2.30 | 1.24 | 3 | 56.75 |
| R217.13-031070AC08P | M 4 | 6.00 | 1.8 | 9.05 | 30.0 | 0.70 | 3.10 | 1.67 | 3 | 56.65 |
| R217.13-031070AC08S | M 4 | 6.00 | 1.0 | 9.05 | 30.0 | 0.70 | 3.10 | 1.67 | 3 | 56.65 |
| R217.13-031070AC12P | M 4 | 6.00 | 1.8 | 13.05 | 30.0 | 0.70 | 3.10 | 1.67 | 3 | 56.65 |
| R217.13-040080AC10P | M 5 | 6.00 | 2.0 | 11.20 | 30.0 | 0.80 | 4.00 | 2.16 | 3 | 56.60 |
| R217.13-040080AC15P | M 5 | 6.00 | 2.0 | 16.20 | 30.0 | 0.80 | 4.00 | 2.16 | 3 | 56.60 |
| R217.13-048100AC12P | M 6 | 6.00 | 2.5 | 13.50 | 30.0 | 1.00 | 4.80 | 2.60 | 3 | 56.50 |
| R217.13-048100AC18P | M 6 | 6.00 | 2.5 | 19.50 | 30.0 | 1.00 | 4.80 | 2.60 | 3 | 59.50 |
| R217.13-064125AC16P | M 8 | 8.00 | 3.1 | 17.90 | 30.0 | 1.25 | 6.40 | 3.45 | 3 | 63.00 |
| R217.13-064125AC24P | M 8 | 8.00 | 3.1 | 25.88 | 30.0 | 1.25 | 6.40 | 3.45 | 3 | 67.37 |
| R217.14-040080AC10S | M 5 | 6.00 | 1.2 | 11.20 | 30.0 | 0.80 | 4.00 | 2.16 | 4 | 56.60 |
| R217.14-048100AC12S | M 6 | 6.00 | 1.5 | 13.50 | 30.0 | 1.00 | 4.80 | 2.60 | 4 | 56.50 |
| R217.14-082150AC20P | M 10 | 10.00 | 3.8 | 22.30 | 30.0 | 1.50 | 8.20 | 4.45 | 4 | 71.25 |
| R217.15-095175AC24P | M 12 | 10.00 | 4.4 | 26.70 | 30.0 | 1.75 | 9.50 | 5.13 | 5 | 71.12 |
● = Первый выбор ○ = Хороший выбор
