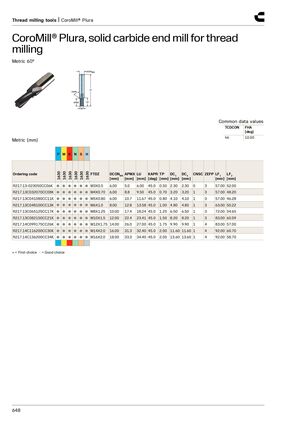

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
Метрическая 60°
Общие значения: TCDCON h6, FHA [deg] 10.00
| Ordering code | FTDZ | DCONMS [mm] | APMX [mm] | LU [mm] | KAPR [deg] | TP [mm] | DC 1 [mm] | DC 2 [mm] | CNSC | ZEFP | LF 1 [mm] | LF 2 [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R217.13-023050CC06K | M3X0.5 | 6.00 | 5.0 | 6.00 | 45.0 | 0.50 | 2.30 | 2.30 | 0 | 3 | 57.00 | 52.00 |
| R217.13C032070CC08K | M4X0.70 | 6.00 | 8.8 | 9.50 | 45.0 | 0.70 | 3.20 | 3.20 | 1 | 3 | 57.00 | 48.20 |
| R217.13C041080CC11K | M5X0.80 | 6.00 | 10.7 | 11.67 | 45.0 | 0.80 | 4.10 | 4.10 | 1 | 3 | 57.00 | 46.28 |
| R217.13C048100CC13K | M6X1.0 | 8.00 | 12.8 | 13.58 | 45.0 | 1.00 | 4.80 | 4.80 | 1 | 3 | 63.00 | 50.22 |
| R217.13C065125CC17K | M8X1.25 | 10.00 | 17.4 | 18.24 | 45.0 | 1.25 | 6.50 | 6.50 | 1 | 3 | 72.00 | 54.65 |
| R217.13C082150CC21K | M10X1.5 | 12.00 | 22.4 | 23.41 | 45.0 | 1.50 | 8.20 | 8.20 | 1 | 3 | 83.00 | 60.59 |
| R217.14C099175CC26K | M12X1.75 | 14.00 | 26.0 | 27.00 | 45.0 | 1.75 | 9.90 | 9.90 | 1 | 4 | 83.00 | 57.00 |
| R217.14C116200CC30K | M14X2.0 | 16.00 | 31.3 | 32.40 | 45.0 | 2.00 | 11.60 | 11.60 | 1 | 4 | 92.00 | 60.70 |
| R217.14C136200CC34K | M16X2.0 | 18.00 | 33.3 | 34.40 | 45.0 | 2.00 | 13.60 | 13.60 | 1 | 4 | 92.00 | 58.70 |
● = Первый выбор ○ = Хороший выбор
