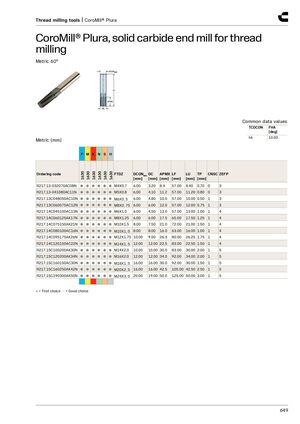

Инструменты для нарезания резьбы фрезерованием | CoroMill® Plura
CoroMill® Plura, цельнотвердосплавная концевая фреза для фрезерования резьбы
Метрическая 60°
Общие значения: TCDCON h6, FHA [deg] 10.00
| Ordering code | FTDZ | DCONMS [mm] | DC [mm] | APMX [mm] | LF [mm] | LU [mm] | TP [mm] | CNSC | ZEFP |
|---|---|---|---|---|---|---|---|---|---|
| R217.13-032070AC08N | M4X0.7 | 6.00 | 3.20 | 8.4 | 57.00 | 8.40 | 0.70 | 0 | 3 |
| R217.13-041080AC11N | M5X0.8 | 6.00 | 4.10 | 11.2 | 57.00 | 11.20 | 0.80 | 0 | 3 |
| R217.13C048050AC10N | M6X0,5 | 6.00 | 4.80 | 10.0 | 57.00 | 10.00 | 0.50 | 1 | 3 |
| R217.13C060075AC12N | M8X0,75 | 6.00 | 6.00 | 12.0 | 57.00 | 12.00 | 0.75 | 1 | 3 |
| R217.14C045100AC13N | M6X1.0 | 6.00 | 4.50 | 13.0 | 57.00 | 13.00 | 1.00 | 1 | 4 |
| R217.14C060125AK17N | M8X1.25 | 6.00 | 6.00 | 17.5 | 65.00 | 17.50 | 1.25 | 1 | 4 |
| R217.14C075150AK21N | M10X1.5 | 8.00 | 7.50 | 21.0 | 72.00 | 21.00 | 1.50 | 1 | 4 |
| R217.14C080100AC16N | M10X1,0 | 8.00 | 8.00 | 16.0 | 63.00 | 16.00 | 1.00 | 1 | 4 |
| R217.14C095175AK26N | M12X1.75 | 10.00 | 9.50 | 26.3 | 80.00 | 26.25 | 1.75 | 1 | 4 |
| R217.14C120150AC22N | M14X1,5 | 12.00 | 12.00 | 22.5 | 83.00 | 22.50 | 1.50 | 1 | 4 |
| R217.15C100200AK30N | M14X2.0 | 10.00 | 10.00 | 30.0 | 83.00 | 30.00 | 2.00 | 1 | 5 |
| R217.15C120200AK34N | M16X2.0 | 12.00 | 12.00 | 34.0 | 92.00 | 34.00 | 2.00 | 1 | 5 |
| R217.15C160150AC30N | M18X1,5 | 16.00 | 16.00 | 30.0 | 92.00 | 30.00 | 1.50 | 1 | 5 |
| R217.15C160250AK42N | M20X2,5 | 16.00 | 16.00 | 42.5 | 105.00 | 42.50 | 2.50 | 1 | 5 |
| R217.15C190300AK50N | M24X3,0 | 20.00 | 19.00 | 50.0 | 125.00 | 50.00 | 3.00 | 1 | 5 |
● = Первый выбор ○ = Хороший выбор
