Инструменты для нарезания резьбы | CoroTap® 400

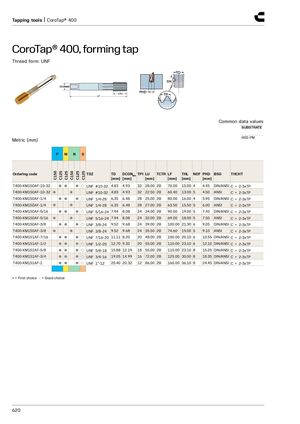

CoroTap® 400, накатной метчик
Форма резьбы: UNF
| Общие значения | |
|---|---|
| SUBSTRATE | HSS-PM |
| Metric (mm) | P | M | N | S |
|---|---|---|---|---|
| C150 | C125 | C125 | C150 | |
| C125 | C125 |
| Код заказа | P | M | N | S | TDZ | TD [mm] | DCONMS | TPI | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-XM150AF-10-32 | ● | ● | ● ○ | UNF #10-32 | 4.83 | 4.93 | 32 | 28.00 | 2B | 70.00 | 15.00 | 4 | 4.45 | DIN/ANSI | C = 2-3xTP | |
| T400-XM150AF-10-32 | ● | ● | UNF #10-32 | 4.83 | 4.93 | 32 | 22.50 | 2B | 60.40 | 13.00 | 5 | 4.50 | ANSI | C = 2-3xTP | ||
| T400-XM150AF-1/4 | ● | ● | ● ○ | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2B | 80.00 | 16.00 | 4 | 5.95 | DIN/ANSI | C = 2-3xTP | |
| T400-XM150AF-1/4 | ● | ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 27.00 | 2B | 63.50 | 15.50 | 5 | 6.00 | ANSI | C = 2-3xTP | ||
| T400-XM150AF-5/16 | ● | ● | ● ○ | UNF 5/16-24 | 7.94 | 8.08 | 24 | 34.00 | 2B | 90.00 | 19.00 | 5 | 7.45 | DIN/ANSI | C = 2-3xTP | |
| T400-XM150AF-5/16 | ● | ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 32.00 | 2B | 69.00 | 18.00 | 5 | 7.50 | ANSI | C = 2-3xTP | ||
| T400-XM150AF-3/8 | ● | ● | ● ○ | UNF 3/8-24 | 9.52 | 9.68 | 24 | 39.00 | 2B | 100.00 | 21.30 | 6 | 9.05 | DIN/ANSI | C = 2-3xTP | |
| T400-XM150AF-3/8 | ● | ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 35.50 | 2B | 74.60 | 19.00 | 5 | 9.10 | ANSI | C = 2-3xTP | ||
| T400-XM151AF-7/16 | ● | ● | ● ○ | UNF 7/16-20 | 11.11 | 8.20 | 20 | 48.00 | 2B | 100.00 | 20.10 | 6 | 10.55 | DIN/ANSI | C = 2-3xTP | |
| T400-XM151AF-1/2 | ● | ● | ● ○ | UNF 1/2-20 | 12.70 | 9.32 | 20 | 55.00 | 2B | 110.00 | 23.10 | 6 | 12.10 | DIN/ANSI | C = 2-3xTP | |
| T400-XM151AF-5/8 | ● | ● | ● ○ | UNF 5/8-18 | 15.88 | 12.19 | 18 | 55.00 | 2B | 110.00 | 23.10 | 8 | 15.25 | DIN/ANSI | C = 2-3xTP | |
| T400-XM151AF-3/4 | ● | ● | ● ○ | UNF 3/4-16 | 19.05 | 14.99 | 16 | 72.00 | 2B | 125.00 | 30.00 | 8 | 18.35 | DIN/ANSI | C = 2-3xTP | |
| T400-XM151AF-1 | ● | ● | ● ○ | UNF 1"-12 | 25.40 | 20.32 | 12 | 86.00 | 2B | 160.00 | 36.10 | 8 | 24.45 | DIN/ANSI | C = 2-3xTP |
● = первый выбор ○ = хороший выбор
