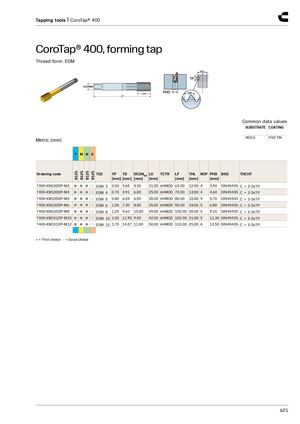

Инструменты для нарезания резьбы | CoroTap® 400
CoroTap® 400, накатной метчик
Форма резьбы: EGM
| Общие значения | |
|---|---|
| SUBSTRATE | HSS-E |
| COATING | PVD TiN |
| Metric (mm) | P | M | N | S |
|---|---|---|---|---|
| B125 | B125 | B125 | B125 |
| Код заказа | P | M | N | S | TDZ | TP [mm] | TD [mm] | DCONMS | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-XM100DP-M3 | ● | ● | ● | ○ | EGM 3 | 0.50 | 3.65 | 4.50 | 21.00 | 6HMOD | 63.00 | 12.00 | 4 | 3.40 | DIN40435 | C = 2-3xTP |
| T400-XM100DP-M4 | ● | ● | ● | ○ | EGM 4 | 0.70 | 4.91 | 6.00 | 25.00 | 6HMOD | 70.00 | 13.00 | 4 | 4.60 | DIN40435 | C = 2-3xTP |
| T400-XM100DP-M5 | ● | ● | ● | ○ | EGM 5 | 0.80 | 6.04 | 6.00 | 30.00 | 6HMOD | 80.00 | 15.00 | 4 | 5.70 | DIN40435 | C = 2-3xTP |
| T400-XM100DP-M6 | ● | ● | ● | ○ | EGM 6 | 1.00 | 7.30 | 8.00 | 35.00 | 6HMOD | 90.00 | 18.00 | 5 | 6.80 | DIN40435 | C = 2-3xTP |
| T400-XM100DP-M8 | ● | ● | ● | ○ | EGM 8 | 1.25 | 9.62 | 10.00 | 39.00 | 6HMOD | 100.00 | 20.00 | 5 | 9.10 | DIN40435 | C = 2-3xTP |
| T400-XM101DP-M10 | ● | ● | ● | ○ | EGM 10 | 1.50 | 11.95 | 9.00 | 42.00 | 6HMOD | 100.00 | 21.00 | 5 | 11.30 | DIN40435 | C = 2-3xTP |
| T400-XM101DP-M12 | ● | ● | ● | ○ | EGM 12 | 1.75 | 14.27 | 11.00 | 50.00 | 6HMOD | 110.00 | 25.00 | 6 | 13.50 | DIN40435 | C = 2-3xTP |
● = первый выбор ○ = хороший выбор
