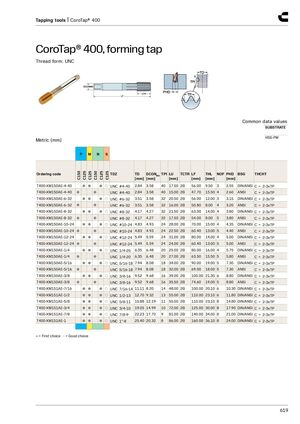

CoroTap® 400, накатной метчик
Форма резьбы: UNC
Общие значения данных — материал основы: HSS-PM.
Таблица содержит варианты исполнения по колонкам P, M, N, S (варианты C150/C125) с отметками ● (первый выбор) и ○ (хороший выбор), а также технические параметры.
- T400-XM150AE-4-40: варианты ●●/●○, резьба UNC #4-40, TD 2.84, DCONMS 3.58, TPI 40, LU 17.50, TCTR 2B, LF 56.00, THL 9.50, NOF 3, PHD 2.55, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-4-40: вариант ●, резьба UNC #4-40, TD 2.84, DCONMS 3.58, TPI 40, LU 15.00, TCTR 2B, LF 47.70, THL 15.50, NOF 4, PHD 2.60, BSG ANSI, THCHT C = 2-3xTP
- T400-XM150AE-6-32: варианты ●●/●○, резьба UNC #6-32, TD 3.51, DCONMS 3.58, TPI 32, LU 20.50, TCTR 2B, LF 56.00, THL 12.00, NOF 3, PHD 3.15, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-6-32: вариант ●, резьба UNC #6-32, TD 3.51, DCONMS 3.58, TPI 32, LU 16.00, TCTR 2B, LF 50.80, THL 8.00, NOF 4, PHD 3.20, BSG ANSI, THCHT C = 2-3xTP
- T400-XM150AE-8-32: варианты ●●/●○, резьба UNC #8-32, TD 4.17, DCONMS 4.27, TPI 32, LU 21.50, TCTR 2B, LF 63.00, THL 14.00, NOF 4, PHD 3.80, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-8-32: вариант ●, резьба UNC #8-32, TD 4.17, DCONMS 4.27, TPI 32, LU 17.50, TCTR 2B, LF 54.00, THL 8.00, NOF 5, PHD 3.80, BSG ANSI, THCHT C = 2-3xTP
- T400-XM150AE-10-24: варианты ●●/●○, резьба UNC #10-24, TD 4.83, DCONMS 4.93, TPI 24, LU 28.00, TCTR 2B, LF 70.00, THL 15.00, NOF 4, PHD 4.35, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-10-24: вариант ●, резьба UNC #10-24, TD 4.83, DCONMS 4.93, TPI 24, LU 22.50, TCTR 2B, LF 60.40, THL 13.00, NOF 5, PHD 4.40, BSG ANSI, THCHT C = 2-3xTP
- T400-XM150AE-12-24: варианты ●●/●○, резьба UNC #12-24, TD 5.49, DCONMS 5.59, TPI 24, LU 31.00, TCTR 2B, LF 80.00, THL 14.00, NOF 4, PHD 5.00, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-12-24: вариант ●, резьба UNC #12-24, TD 5.49, DCONMS 5.59, TPI 24, LU 24.00, TCTR 2B, LF 60.40, THL 13.00, NOF 5, PHD 5.00, BSG ANSI, THCHT C = 2-3xTP
- T400-XM150AE-1/4: варианты ●●/●○, резьба UNC 1/4-20, TD 6.35, DCONMS 6.48, TPI 20, LU 25.00, TCTR 2B, LF 80.00, THL 16.00, NOF 4, PHD 5.75, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-1/4: вариант ●, резьба UNC 1/4-20, TD 6.35, DCONMS 6.48, TPI 20, LU 27.00, TCTR 2B, LF 63.50, THL 15.50, NOF 5, PHD 5.80, BSG ANSI, THCHT C = 2-3xTP
- T400-XM150AE-5/16: варианты ●●/●○, резьба UNC 5/16-18, TD 7.94, DCONMS 8.08, TPI 18, LU 34.00, TCTR 2B, LF 90.00, THL 19.00, NOF 5, PHD 7.30, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-5/16: вариант ●, резьба UNC 5/16-18, TD 7.94, DCONMS 8.08, TPI 18, LU 32.00, TCTR 2B, LF 69.00, THL 18.00, NOF 5, PHD 7.30, BSG ANSI, THCHT C = 2-3xTP
- T400-XM150AE-3/8: варианты ●●/●○, резьба UNC 3/8-16, TD 9.52, DCONMS 9.68, TPI 16, LU 39.00, TCTR 2B, LF 100.00, THL 21.30, NOF 6, PHD 8.80, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM150AE-3/8: вариант ●, резьба UNC 3/8-16, TD 9.52, DCONMS 9.68, TPI 16, LU 35.50, TCTR 2B, LF 74.60, THL 19.00, NOF 5, PHD 8.80, BSG ANSI, THCHT C = 2-3xTP
- T400-XM151AE-7/16: варианты ●●/●○, резьба UNC 7/16-14, TD 11.11, DCONMS 8.20, TPI 14, LU 48.00, TCTR 2B, LF 100.00, THL 20.10, NOF 6, PHD 10.30, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM151AE-1/2: варианты ●●/●○, резьба UNC 1/2-13, TD 12.70, DCONMS 9.32, TPI 13, LU 55.00, TCTR 2B, LF 110.00, THL 23.10, NOF 6, PHD 11.80, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM151AE-5/8: варианты ●●/●○, резьба UNC 5/8-11, TD 15.88, DCONMS 12.19, TPI 11, LU 55.00, TCTR 2B, LF 110.00, THL 23.10, NOF 8, PHD 14.80, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM151AE-3/4: варианты ●●/●○, резьба UNC 3/4-10, TD 19.05, DCONMS 14.99, TPI 10, LU 72.00, TCTR 2B, LF 125.00, THL 30.00, NOF 8, PHD 17.90, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM151AE-7/8: варианты ●●/●○, резьба UNC 7/8-9, TD 22.23, DCONMS 17.70, TPI 9, LU 81.00, TCTR 2B, LF 140.00, THL 34.00, NOF 8, PHD 21.00, BSG DIN/ANSI, THCHT C = 2-3xTP
- T400-XM151AE-1: варианты ●●/●○, резьба UNC 1"-8, TD 25.40, DCONMS 20.32, TPI 8, LU 86.00, TCTR 2B, LF 160.00, THL 36.10, NOF 8, PHD 24.00, BSG DIN/ANSI, THCHT C = 2-3xTP
● = первый выбор, ○ = хороший выбор.
