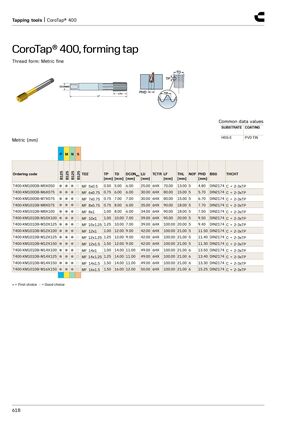

CoroTap® 400, накатной метчик
Форма резьбы: метрическая мелкий шаг
Общие значения данных — материал основы: HSS-E; покрытие: PVD TiN.
| Код заказа | Резьба | TDZ | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T400-XM100DB-M5X050 | MF 5x0.5 | 0.50 | 5.00 | 6.00 | 25.00 | 6HX | 70.00 | 13.00 | 5 | 4.80 | DIN2174 | C = 2-3xTP | |
| T400-XM100DB-M6X075 | MF 6x0.75 | 0.75 | 6.00 | 6.00 | 30.00 | 6HX | 80.00 | 15.00 | 5 | 5.70 | DIN2174 | C = 2-3xTP | |
| T400-XM100DB-M7X075 | MF 7x0.75 | 0.75 | 7.00 | 7.00 | 30.00 | 6HX | 80.00 | 15.00 | 5 | 6.70 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M8X075 | MF 8x0.75 | 0.75 | 8.00 | 6.00 | 35.00 | 6HX | 90.00 | 18.00 | 5 | 7.70 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M8X100 | MF 8x1 | 1.00 | 8.00 | 6.00 | 34.00 | 6HX | 90.00 | 18.00 | 5 | 7.50 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M10X100 | MF 10x1 | 1.00 | 10.00 | 7.00 | 39.00 | 6HX | 90.00 | 20.00 | 5 | 9.50 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M10X125 | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 39.00 | 6HX | 100.00 | 20.00 | 5 | 9.40 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M12X100 | MF 12x1 | 1.00 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 21.00 | 5 | 11.50 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M12X125 | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 21.00 | 5 | 11.40 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M12X150 | MF 12x1.5 | 1.50 | 12.00 | 9.00 | 42.00 | 6HX | 100.00 | 21.00 | 5 | 11.30 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M14X100 | MF 14x1 | 1.00 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 21.00 | 6 | 13.50 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M14X125 | MF 14x1.25 | 1.25 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 21.00 | 6 | 13.40 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M14X150 | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 49.00 | 6HX | 100.00 | 21.00 | 6 | 13.30 | DIN2174 | C = 2-3xTP | |
| T400-XM101DB-M16X150 | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 21.00 | 6 | 15.25 | DIN2174 | C = 2-3xTP |
● = первый выбор, ○ = хороший выбор.
