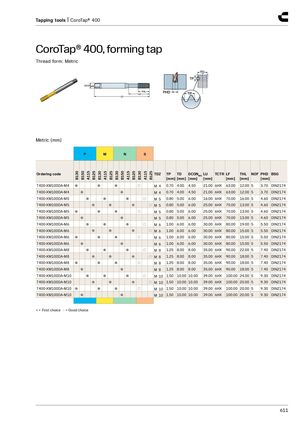

CoroTap® 400, накатной метчик

Форма резьбы: метрическая

Продолжение таблицы вариантов исполнения (колонки P, M, N, S; варианты B130/B150/A115/B125).

• T400-XM100DA-M4: резьба M 4, TDZ 0.70, TP 4.00, TD 4.50, LU 21.00, TCTR 6HX, LF 63.00, THL 12.00, NOF 5, PHD 3.70, BSG DIN2174
• T400-XM100DA-M4: резьба M 4, TDZ 0.70, TP 4.00, TD 4.50, LU 21.00, TCTR 6HX, LF 63.00, THL 12.00, NOF 5, PHD 3.70, BSG DIN2174
• T400-XM100DA-M5: резьба M 5, TDZ 0.80, TP 5.00, TD 6.00, LU 16.00, TCTR 6HX, LF 70.00, THL 16.00, NOF 5, PHD 4.60, BSG DIN2174
• T400-XM100DA-M5: резьба M5, TDZ 0.80, TP 5.00, TD 6.00, LU 25.00, TCTR 6HX, LF 70.00, THL 13.00, NOF 5, PHD 4.60, BSG DIN2174
• T400-XM100DA-M5: резьба M 5, TDZ 0.80, TP 5.00, TD 6.00, LU 25.00, TCTR 6HX, LF 70.00, THL 13.00, NOF 5, PHD 4.60, BSG DIN2174
• T400-XM100DA-M5: резьба M 5, TDZ 0.80, TP 5.00, TD 6.00, LU 25.00, TCTR 6HX, LF 70.00, THL 13.00, NOF 5, PHD 4.60, BSG DIN2174
• T400-XM100DA-M6: резьба M 6, TDZ 1.00, TP 6.00, TD 6.00, LU 30.00, TCTR 6HX, LF 80.00, THL 19.00, NOF 5, PHD 5.50, BSG DIN2174
• T400-XM100DA-M6: резьба M6, TDZ 1.00, TP 6.00, TD 6.00, LU 30.00, TCTR 6HX, LF 80.00, THL 15.00, NOF 5, PHD 5.50, BSG DIN2174
• T400-XM100DA-M6: резьба M 6, TDZ 1.00, TP 6.00, TD 6.00, LU 30.00, TCTR 6HX, LF 80.00, THL 15.00, NOF 5, PHD 5.50, BSG DIN2174
• T400-XM100DA-M6: резьба M 6, TDZ 1.00, TP 6.00, TD 6.00, LU 30.00, TCTR 6HX, LF 80.00, THL 15.00, NOF 5, PHD 5.50, BSG DIN2174
• T400-XM100DA-M8: резьба M 8, TDZ 1.25, TP 8.00, TD 8.00, LU 35.00, TCTR 6HX, LF 90.00, THL 22.00, NOF 5, PHD 7.40, BSG DIN2174
• T400-XM100DA-M8: резьба M8, TDZ 1.25, TP 8.00, TD 8.00, LU 35.00, TCTR 6HX, LF 90.00, THL 18.00, NOF 5, PHD 7.40, BSG DIN2174
• T400-XM100DA-M8: резьба M 8, TDZ 1.25, TP 8.00, TD 8.00, LU 35.00, TCTR 6HX, LF 90.00, THL 18.00, NOF 5, PHD 7.40, BSG DIN2174
• T400-XM100DA-M8: резьба M 8, TDZ 1.25, TP 8.00, TD 8.00, LU 35.00, TCTR 6HX, LF 90.00, THL 18.00, NOF 5, PHD 7.40, BSG DIN2174
• T400-XM100DA-M10: резьба M 10, TDZ 1.50, TP 10.00, TD 10.00, LU 39.00, TCTR 6HX, LF 100.00, THL 24.00, NOF 5, PHD 9.30, BSG DIN2174
• T400-XM100DA-M10: резьба M 10, TDZ 1.50, TP 10.00, TD 10.00, LU 39.00, TCTR 6HX, LF 100.00, THL 20.00, NOF 5, PHD 9.30, BSG DIN2174
• T400-XM100DA-M10: резьба M 10, TDZ 1.50, TP 10.00, TD 10.00, LU 39.00, TCTR 6HX, LF 100.00, THL 20.00, NOF 5, PHD 9.30, BSG DIN2174
• T400-XM100DA-M10: резьба M 10, TDZ 1.50, TP 10.00, TD 10.00, LU 39.00, TCTR 6HX, LF 100.00, THL 20.00, NOF 5, PHD 9.30, BSG DIN2174

● = первый выбор, ○ = хороший выбор.
