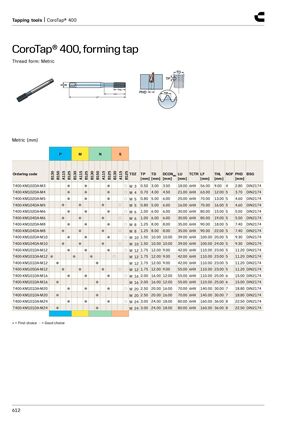

Tapping tools | CoroTap® 400 CoroTap® 400, forming tap​​ Thread form: Metric Metric (mm) P M N S B130 B150 B125 B130 B125 B130 B150 B125 B130 B125 A115 A115 A115 A115 Ordering code TDZ TP TD DCONMS LU TCTR LF THL NOF PHD BSG [mm] [mm] [mm] [mm] [mm] [mm] [mm] T400-XM102DA-M3 ● ● ● ○M3 0.50 3.00 3.50 18.00 6HX 56.00 9.00 4 2.80 DIN2174 T400-XM102DA-M4 ● ● ● ○M4 0.70 4.00 4.50 21.00 6HX 63.00 12.00 5 3.70 DIN2174 T400-XM102DA-M5 ● ● ● ○M5 0.80 5.00 6.00 25.00 6HX 70.00 13.00 5 4.60 DIN2174 T400-XM104DA-M5 ● ● ● ○ M 5 0.80 5.00 6.00 16.00 6HX 70.00 16.00 5 4.60 DIN2174 T400-XM102DA-M6 ● ● ● ○M6 1.00 6.00 6.00 30.00 6HX 80.00 15.00 5 5.50 DIN2174 T400-XM104DA-M6 ● ● ● ○ M 6 1.00 6.00 6.00 30.00 6HX 80.00 19.00 5 5.50 DIN2174 T400-XM102DA-M8 ● ● ● ○M8 1.25 8.00 8.00 35.00 6HX 90.00 18.00 5 7.40 DIN2174 T400-XM104DA-M8 ● ● ● ○ M 8 1.25 8.00 8.00 35.00 6HX 90.00 22.00 5 7.40 DIN2174 T400-XM102DA-M10 ● ● ● ○ M 10 1.50 10.00 10.00 39.00 6HX 100.00 20.00 5 9.30 DIN2174 T400-XM104DA-M10 ● ● ● ○ M 10 1.50 10.00 10.00 39.00 6HX 100.00 24.00 5 9.30 DIN2174 T400-XM101DA-M12 ● ● ● ○ M 12 1.75 12.00 9.00 42.00 6HX 110.00 23.00 5 11.20 DIN2174 T400-XM101DA-M12 ● ● ● ○ M 12 1.75 12.00 9.00 42.00 6HX 110.00 23.00 5 11.20 DIN2174 T400-XM101DA-M12 ● ● M 12 1.75 12.00 9.00 42.00 6HX 110.00 23.00 5 11.20 DIN2174 T400-XM105DA-M12 ● ● ● ○ M 12 1.75 12.00 9.00 55.00 6HX 110.00 23.00 5 11.20 DIN2174 T400-XM101DA-M16 ● ● ● ○ M 16 2.00 16.00 12.00 55.00 6HX 110.00 25.00 6 15.00 DIN2174 T400-XM101DA-M16 ● ● M 16 2.00 16.00 12.00 55.00 6HX 110.00 25.00 6 15.00 DIN2174 T400-XM101DA-M20 ● ● ● ○ M 20 2.50 20.00 16.00 70.00 6HX 140.00 30.00 7 18.80 DIN2174 T400-XM101DA-M20 ● ● M 20 2.50 20.00 16.00 70.00 6HX 140.00 30.00 7 18.80 DIN2174 T400-XM101DA-M24 ● ● ● ○ M 24 3.00 24.00 18.00 80.00 6HX 160.00 36.00 8 22.50 DIN2174 T400-XM101DA-M24 ● ● M 24 3.00 24.00 18.00 80.00 6HX 160.00 36.00 8 22.50 DIN2174 ● = First choice ○ = Good choice 612
