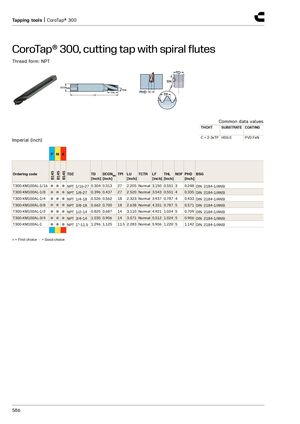

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: NPT
Общие значения
| THCHT | SUBSTRATE | COATING |
|---|---|---|
| C = 2-3xTP | HSS-E | PVD FeN |
Дюймовая система (inch)
| Ordering code | P | M | K | DCONMS | TDZ [inch] | TD [inch] | TPI | LU [inch] | TCTR | LF [inch] | THL [inch] | NOF | PHD [inch] | BSG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM100AL-1/16 | ● | ● | ● | NPT 1/16-27 | 0.304 | 0.313 | 27 | 2.205 | Normal | 3.150 | 0.551 | 3 | 0.248 | DIN 2184-1/ANSI |
| T300-XM100AL-1/8 | ● | ● | ● | NPT 1/8-27 | 0.396 | 0.437 | 27 | 2.520 | Normal | 3.543 | 0.551 | 4 | 0.335 | DIN 2184-1/ANSI |
| T300-XM100AL-1/4 | ● | ● | ● | NPT 1/4-18 | 0.526 | 0.562 | 18 | 2.323 | Normal | 3.937 | 0.787 | 4 | 0.433 | DIN 2184-1/ANSI |
| T300-XM100AL-3/8 | ● | ● | ● | NPT 3/8-18 | 0.662 | 0.700 | 18 | 2.638 | Normal | 4.331 | 0.787 | 5 | 0.571 | DIN 2184-1/ANSI |
| T300-XM100AL-1/2 | ● | ● | ● | NPT 1/2-14 | 0.825 | 0.687 | 14 | 3.110 | Normal | 4.921 | 1.024 | 5 | 0.709 | DIN 2184-1/ANSI |
| T300-XM100AL-3/4 | ● | ● | ● | NPT 3/4-14 | 1.035 | 0.906 | 14 | 3.071 | Normal | 5.512 | 1.024 | 5 | 0.906 | DIN 2184-1/ANSI |
| T300-XM100AL-1 | ● | ● | ● | NPT 1”-11.5 | 1.296 | 1.125 | 11.5 | 2.283 | Normal | 5.906 | 1.220 | 5 | 1.142 | DIN 2184-1/ANSI |
● = Первый выбор ○ = Хороший выбор
