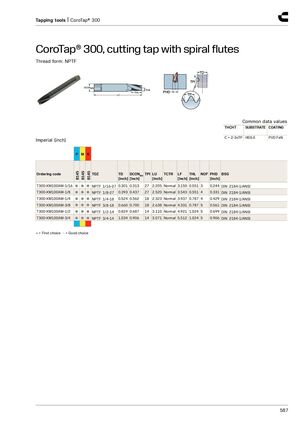

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: NPTF
Общие значения
| THCHT | SUBSTRATE | COATING |
|---|---|---|
| C = 2-3xTP | HSS-E | PVD FeN |
Дюймовая система (inch)
| Ordering code | P | M | K | DCONMS | TDZ [inch] | TD [inch] | TPI | LU [inch] | TCTR | LF [inch] | THL [inch] | NOF | PHD [inch] | BSG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM100AM-1/16 | ● | ● | ● | NPTF 1/16-27 | 0.301 | 0.313 | 27 | 2.205 | Normal | 3.150 | 0.551 | 3 | 0.244 | DIN 2184-1/ANSI |
| T300-XM100AM-1/8 | ● | ● | ● | NPTF 1/8-27 | 0.393 | 0.437 | 27 | 2.520 | Normal | 3.543 | 0.551 | 4 | 0.331 | DIN 2184-1/ANSI |
| T300-XM100AM-1/4 | ● | ● | ● | NPTF 1/4-18 | 0.524 | 0.562 | 18 | 2.323 | Normal | 3.937 | 0.787 | 4 | 0.429 | DIN 2184-1/ANSI |
| T300-XM100AM-3/8 | ● | ● | ● | NPTF 3/8-18 | 0.660 | 0.700 | 18 | 2.638 | Normal | 4.331 | 0.787 | 5 | 0.561 | DIN 2184-1/ANSI |
| T300-XM100AM-1/2 | ● | ● | ● | NPTF 1/2-14 | 0.824 | 0.687 | 14 | 3.110 | Normal | 4.921 | 1.024 | 5 | 0.699 | DIN 2184-1/ANSI |
| T300-XM100AM-3/4 | ● | ● | ● | NPTF 3/4-14 | 1.034 | 0.906 | 14 | 3.071 | Normal | 5.512 | 1.024 | 5 | 0.906 | DIN 2184-1/ANSI |
● = Первый выбор ○ = Хороший выбор
