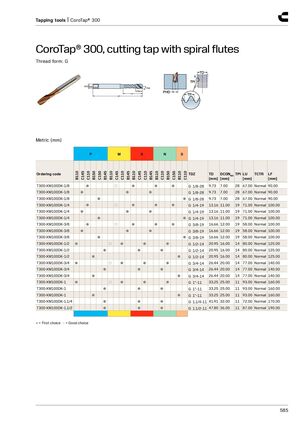

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: G
Метрическая (мм)
| Ordering code | P | M | K | N | S | DCONMS | TDZ [mm] | TD [mm] | TPI | LU [mm] | TCTR | LF [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM100DK-1/8 | ● | ○ | ● | ● | ● | G 1/8-28 | 9.73 | 7.00 | 28 | 67.00 | Normal | 90.00 |
| T300-XM100DK-1/8 | ● | ● | ● | G 1/8-28 | 9.73 | 7.00 | 28 | 67.00 | Normal | 90.00 | ||
| T300-XM100DK-1/8 | ● | ● | G 1/8-28 | 9.73 | 7.00 | 28 | 67.00 | Normal | 90.00 | |||
| T300-XM100DK-1/4 | ● | ○ | ● | ● | ● | G 1/4-19 | 13.16 | 11.00 | 19 | 71.00 | Normal | 100.00 |
| T300-XM100DK-1/4 | ● | ● | ● | G 1/4-19 | 13.16 | 11.00 | 19 | 71.00 | Normal | 100.00 | ||
| T300-XM100DK-1/4 | ● | ● | G 1/4-19 | 13.16 | 11.00 | 19 | 71.00 | Normal | 100.00 | |||
| T300-XM100DK-3/8 | ● | ○ | ● | ● | ● | G 3/8-19 | 16.66 | 12.00 | 19 | 58.00 | Normal | 100.00 |
| T300-XM100DK-3/8 | ● | ● | ● | G 3/8-19 | 16.66 | 12.00 | 19 | 58.00 | Normal | 100.00 | ||
| T300-XM100DK-3/8 | ● | ● | G 3/8-19 | 16.66 | 12.00 | 19 | 58.00 | Normal | 100.00 | |||
| T300-XM100DK-1/2 | ● | ○ | ● | ● | ● | G 1/2-14 | 20.95 | 16.00 | 14 | 80.00 | Normal | 125.00 |
| T300-XM100DK-1/2 | ● | ● | ● | G 1/2-14 | 20.95 | 16.00 | 14 | 80.00 | Normal | 125.00 | ||
| T300-XM100DK-1/2 | ● | ● | G 1/2-14 | 20.95 | 16.00 | 14 | 80.00 | Normal | 125.00 | |||
| T300-XM100DK-3/4 | ● | ○ | ● | ● | ● | G 3/4-14 | 26.44 | 20.00 | 14 | 77.00 | Normal | 140.00 |
| T300-XM100DK-3/4 | ● | ● | ● | G 3/4-14 | 26.44 | 20.00 | 14 | 77.00 | Normal | 140.00 | ||
| T300-XM100DK-3/4 | ● | ● | G 3/4-14 | 26.44 | 20.00 | 14 | 77.00 | Normal | 140.00 | |||
| T300-XM100DK-1 | ● | ○ | ● | ● | ● | G 1”-11 | 33.25 | 25.00 | 11 | 93.00 | Normal | 160.00 |
| T300-XM100DK-1 | ● | ● | ● | G 1”-11 | 33.25 | 25.00 | 11 | 93.00 | Normal | 160.00 | ||
| T300-XM100DK-1 | ● | ● | G 1”-11 | 33.25 | 25.00 | 11 | 93.00 | Normal | 160.00 | |||
| T300-XM100DK-1.1/4 | ● | ● | ● | G 1.1/4-11 | 41.91 | 32.00 | 11 | 72.00 | Normal | 170.00 | ||
| T300-XM100DK-1.1/2 | ● | ● | ● | G 1.1/2-11 | 47.80 | 36.00 | 11 | 87.00 | Normal | 190.00 |
● = Первый выбор ○ = Хороший выбор
