Инструмент для нарезания резьбы | CoroTap® 300

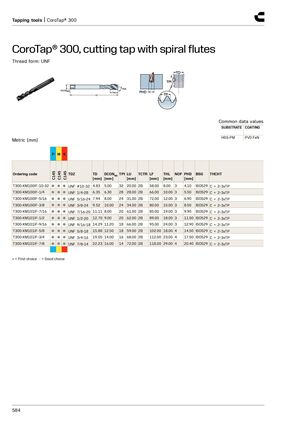

CoroTap® 300, метчик со спиральными канавками
Форма резьбы: UNF
Общие справочные значения
Материал: HSS-PM. Покрытие: PVD FeN.
Метрическая система (mm)
| Код заказа | P (C145) | M (C145) | K (C145) | Резьба | TDZ [mm] | TD [mm] | TPI | LU [mm] | TCTR | LF [mm] | THL [mm] | NOF | PHD [mm] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM100IF-10-32 | ● | ● | ● | UNF #10-32 | 4.83 | 5.00 | 32 | 20.00 | 2B | 58.00 | 8.00 | 3 | 4.10 | ISO529 | C = 2-3xTP |
| T300-XM100IF-1/4 | ● | ● | ● | UNF 1/4-28 | 6.35 | 6.30 | 28 | 28.00 | 2B | 66.00 | 10.00 | 3 | 5.50 | ISO529 | C = 2-3xTP |
| T300-XM100IF-5/16 | ● | ● | ● | UNF 5/16-24 | 7.94 | 8.00 | 24 | 31.00 | 2B | 72.00 | 12.00 | 3 | 6.90 | ISO529 | C = 2-3xTP |
| T300-XM100IF-3/8 | ● | ● | ● | UNF 3/8-24 | 9.52 | 10.00 | 24 | 34.00 | 2B | 80.00 | 15.00 | 3 | 8.50 | ISO529 | C = 2-3xTP |
| T300-XM101IF-7/16 | ● | ● | ● | UNF 7/16-20 | 11.11 | 8.00 | 20 | 61.00 | 2B | 85.00 | 19.00 | 3 | 9.90 | ISO529 | C = 2-3xTP |
| T300-XM101IF-1/2 | ● | ● | ● | UNF 1/2-20 | 12.70 | 9.00 | 20 | 62.00 | 2B | 89.00 | 18.00 | 3 | 11.50 | ISO529 | C = 2-3xTP |
| T300-XM101IF-9/16 | ● | ● | ● | UNF 9/16-18 | 14.29 | 11.20 | 18 | 66.00 | 2B | 95.00 | 24.00 | 3 | 12.90 | ISO529 | C = 2-3xTP |
| T300-XM101IF-5/8 | ● | ● | ● | UNF 5/8-18 | 15.88 | 12.50 | 18 | 59.00 | 2B | 102.00 | 18.00 | 4 | 14.50 | ISO529 | C = 2-3xTP |
| T300-XM101IF-3/4 | ● | ● | ● | UNF 3/4-16 | 19.05 | 14.00 | 16 | 68.00 | 2B | 112.00 | 23.00 | 4 | 17.50 | ISO529 | C = 2-3xTP |
| T300-XM101IF-7/8 | ● | ● | ● | UNF 7/8-14 | 22.23 | 16.00 | 14 | 72.00 | 2B | 118.00 | 29.00 | 4 | 20.40 | ISO529 | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
