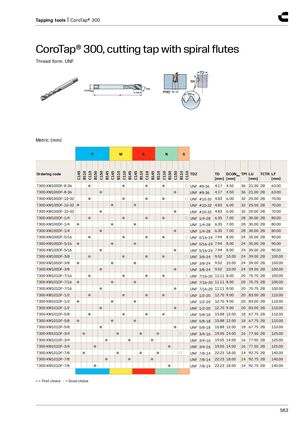

Инструмент для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик со спиральными канавками
Форма резьбы: UNF
Метрическая система (mm)
| Код заказа | Резьба | TDZ [mm] | TD [mm] | TPI | LU [mm] | TCTR | LF [mm] |
|---|---|---|---|---|---|---|---|
| T300-XM100DF-8-36 | UNF #8-36 | 4.17 | 4.50 | 36 | 21.00 | 2B | 63.00 |
| T300-XM100DF-8-36 | UNF #8-36 | 4.17 | 4.50 | 36 | 21.00 | 2B | 63.00 |
| T300-XM100DF-10-32 | UNF #10-32 | 4.83 | 6.00 | 32 | 25.00 | 2B | 70.00 |
| T300-XM100DF-10-32 | UNF #10-32 | 4.83 | 6.00 | 32 | 25.00 | 2B | 70.00 |
| T300-XM100DF-10-32 | UNF #10-32 | 4.83 | 6.00 | 32 | 25.00 | 2B | 70.00 |
| T300-XM100DF-1/4 | UNF 1/4-28 | 6.35 | 7.00 | 28 | 30.00 | 2B | 80.00 |
| T300-XM100DF-1/4 | UNF 1/4-28 | 6.35 | 7.00 | 28 | 30.00 | 2B | 80.00 |
| T300-XM100DF-1/4 | UNF 1/4-28 | 6.35 | 7.00 | 28 | 30.00 | 2B | 80.00 |
| T300-XM100DF-5/16 | UNF 5/16-24 | 7.94 | 8.00 | 24 | 35.00 | 2B | 90.00 |
| T300-XM100DF-5/16 | UNF 5/16-24 | 7.94 | 8.00 | 24 | 35.00 | 2B | 90.00 |
| T300-XM100DF-5/16 | UNF 5/16-24 | 7.94 | 8.00 | 24 | 35.00 | 2B | 90.00 |
| T300-XM100DF-3/8 | UNF 3/8-24 | 9.52 | 10.00 | 24 | 39.00 | 2B | 100.00 |
| T300-XM100DF-3/8 | UNF 3/8-24 | 9.52 | 10.00 | 24 | 39.00 | 2B | 100.00 |
| T300-XM100DF-3/8 | UNF 3/8-24 | 9.52 | 10.00 | 24 | 39.00 | 2B | 100.00 |
| T300-XM101DF-7/16 | UNF 7/16-20 | 11.11 | 8.00 | 20 | 75.75 | 2B | 100.00 |
| T300-XM101DF-7/16 | UNF 7/16-20 | 11.11 | 8.00 | 20 | 75.75 | 2B | 100.00 |
| T300-XM101DF-7/16 | UNF 7/16-20 | 11.11 | 8.00 | 20 | 75.75 | 2B | 100.00 |
| T300-XM101DF-1/2 | UNF 1/2-20 | 12.70 | 9.00 | 20 | 83.00 | 2B | 110.00 |
| T300-XM101DF-1/2 | UNF 1/2-20 | 12.70 | 9.00 | 20 | 83.00 | 2B | 110.00 |
| T300-XM101DF-1/2 | UNF 1/2-20 | 12.70 | 9.00 | 20 | 83.00 | 2B | 110.00 |
| T300-XM101DF-5/8 | UNF 5/8-18 | 15.88 | 12.00 | 18 | 67.75 | 2B | 110.00 |
| T300-XM101DF-5/8 | UNF 5/8-18 | 15.88 | 12.00 | 18 | 67.75 | 2B | 110.00 |
| T300-XM101DF-5/8 | UNF 5/8-18 | 15.88 | 12.00 | 18 | 67.75 | 2B | 110.00 |
| T300-XM101DF-3/4 | UNF 3/4-16 | 19.05 | 14.00 | 16 | 77.50 | 2B | 125.00 |
| T300-XM101DF-3/4 | UNF 3/4-16 | 19.05 | 14.00 | 16 | 77.50 | 2B | 125.00 |
| T300-XM101DF-3/4 | UNF 3/4-16 | 19.05 | 14.00 | 16 | 77.50 | 2B | 125.00 |
| T300-XM101DF-7/8 | UNF 7/8-14 | 22.23 | 18.00 | 14 | 92.75 | 2B | 140.00 |
| T300-XM101DF-7/8 | UNF 7/8-14 | 22.23 | 18.00 | 14 | 92.75 | 2B | 140.00 |
| T300-XM101DF-7/8 | UNF 7/8-14 | 22.23 | 18.00 | 14 | 92.75 | 2B | 140.00 |
● = Первый выбор ○ = Хороший выбор
