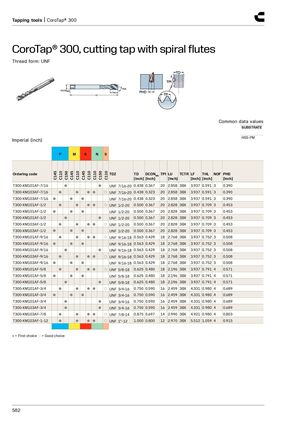

Инструмент для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик со спиральными канавками
Форма резьбы: UNF
Общие справочные значения
Материал: HSS-PM
Дюймовая система (inch)
| Код заказа | P (C145) | P (C110) | M (C150) | M (C145) | M (C110) | K (C145) | K (C110) | N (C110) | S (C150) | S (C110) | Резьба | TDZ [inch] | TD [inch] | TPI | LU [inch] | TCTR | LF [inch] | THL [inch] | NOF | PHD [inch] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM101AF-7/16 | ● | ● | UNF 7/16-20 | 0.438 | 0.367 | 20 | 2.858 | 3BX | 3.937 | 0.591 | 3 | 0.390 | ||||||||
| T300-XM103AF-7/16 | ● | ● | ●● | ○ | UNF 7/16-20 | 0.438 | 0.323 | 20 | 2.858 | 3BX | 3.937 | 0.591 | 3 | 0.390 | ||||||
| T300-XM103AF-7/16 | ● | ● | ● | UNF 7/16-20 | 0.438 | 0.323 | 20 | 2.858 | 3BX | 3.937 | 0.591 | 3 | 0.390 | |||||||
| T300-XM101AF-1/2 | ● | ● | ●● | ○ | UNF 1/2-20 | 0.500 | 0.367 | 20 | 2.828 | 3BX | 3.937 | 0.709 | 3 | 0.453 | ||||||
| T300-XM101AF-1/2 | ● | ● | ● | UNF 1/2-20 | 0.500 | 0.367 | 20 | 2.828 | 3BX | 3.937 | 0.709 | 3 | 0.453 | |||||||
| T300-XM101AF-1/2 | ● | ● | UNF 1/2-20 | 0.500 | 0.367 | 20 | 2.828 | 3BX | 3.937 | 0.709 | 3 | 0.453 | ||||||||
| T300-XM103AF-1/2 | ● | ● | ●● | ○ | UNF 1/2-20 | 0.500 | 0.367 | 20 | 2.828 | 3BX | 3.937 | 0.709 | 3 | 0.453 | ||||||
| T300-XM103AF-1/2 | ● | ● | ● | UNF 1/2-20 | 0.500 | 0.367 | 20 | 2.828 | 3BX | 3.937 | 0.709 | 3 | 0.453 | |||||||
| T300-XM101AF-9/16 | ● | ● | ●● | ○ | UNF 9/16-18 | 0.563 | 0.429 | 18 | 2.768 | 3BX | 3.937 | 0.752 | 3 | 0.508 | ||||||
| T300-XM101AF-9/16 | ● | ● | ● | UNF 9/16-18 | 0.563 | 0.429 | 18 | 2.768 | 3BX | 3.937 | 0.752 | 3 | 0.508 | |||||||
| T300-XM101AF-9/16 | ● | ● | UNF 9/16-18 | 0.563 | 0.429 | 18 | 2.768 | 3BX | 3.937 | 0.752 | 3 | 0.508 | ||||||||
| T300-XM103AF-9/16 | ● | ● | ●● | ○ | UNF 9/16-18 | 0.563 | 0.429 | 18 | 2.768 | 3BX | 3.937 | 0.752 | 3 | 0.508 | ||||||
| T300-XM103AF-9/16 | ● | ● | ● | UNF 9/16-18 | 0.563 | 0.429 | 18 | 2.768 | 3BX | 3.937 | 0.752 | 3 | 0.508 | |||||||
| T300-XM101AF-5/8 | ● | ● | ●● | ○ | UNF 5/8-18 | 0.625 | 0.480 | 18 | 2.196 | 3BX | 3.937 | 0.791 | 4 | 0.571 | ||||||
| T300-XM101AF-5/8 | ● | ● | ● | UNF 5/8-18 | 0.625 | 0.480 | 18 | 2.196 | 3BX | 3.937 | 0.791 | 4 | 0.571 | |||||||
| T300-XM101AF-5/8 | ● | ● | UNF 5/8-18 | 0.625 | 0.480 | 18 | 2.196 | 3BX | 3.937 | 0.791 | 4 | 0.571 | ||||||||
| T300-XM101AF-3/4 | ● | ● | ●● | ○ | UNF 3/4-16 | 0.750 | 0.590 | 16 | 2.459 | 3BX | 4.331 | 0.980 | 4 | 0.689 | ||||||
| T300-XM101AF-3/4 | ● | ● | ● | UNF 3/4-16 | 0.750 | 0.590 | 16 | 2.459 | 3BX | 4.331 | 0.980 | 4 | 0.689 | |||||||
| T300-XM101AF-3/4 | ● | ● | UNF 3/4-16 | 0.750 | 0.590 | 16 | 2.459 | 3BX | 4.331 | 0.980 | 4 | 0.689 | ||||||||
| T300-XM103AF-3/4 | ● | ● | UNF 3/4-16 | 0.750 | 0.590 | 16 | 2.459 | 3BX | 4.331 | 0.980 | 4 | 0.689 | ||||||||
| T300-XM103AF-7/8 | ● | ● | ●● | ○ | UNF 7/8-14 | 0.875 | 0.697 | 14 | 2.990 | 3BX | 4.921 | 0.980 | 4 | 0.803 | ||||||
| T300-XM103AF-1-12 | ● | ● | ●● | ○ | UNF 1"-12 | 1.000 | 0.800 | 12 | 2.970 | 3BX | 5.512 | 1.059 | 4 | 0.915 |
● = Первый выбор ○ = Хороший выбор
