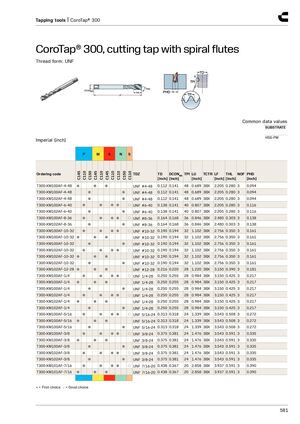

Инструмент для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик со спиральными канавками
Форма резьбы: UNF
Общие справочные значения
Материал: HSS-PM
Дюймовая система (inch)
| Код заказа | P (C145) | P (C110) | M (C150) | M (C145) | M (C110) | K (C145) | K (C110) | N (C110) | S (C150) | S (C110) | Резьба | TDZ [inch] | TD [inch] | TPI | LU [inch] | TCTR | LF [inch] | THL [inch] | NOF | PHD [inch] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM100AF-4-48 | ● | ● | ● | UNF #4-48 | 0.112 | 0.141 | 48 | 0.689 | 3BX | 2.205 | 0.280 | 3 | 0.094 | |||||||
| T300-XM100AF-4-48 | ● | ● | UNF #4-48 | 0.112 | 0.141 | 48 | 0.689 | 3BX | 2.205 | 0.280 | 3 | 0.094 | ||||||||
| T300-XM102AF-4-48 | ● | ● | UNF #4-48 | 0.112 | 0.141 | 48 | 0.689 | 3BX | 2.205 | 0.280 | 3 | 0.094 | ||||||||
| T300-XM100AF-6-40 | ● | ● | ●● | ○ | UNF #6-40 | 0.138 | 0.141 | 40 | 0.807 | 3BX | 2.205 | 0.280 | 3 | 0.116 | ||||||
| T300-XM102AF-6-40 | ● | ● | UNF #6-40 | 0.138 | 0.141 | 40 | 0.807 | 3BX | 2.205 | 0.280 | 3 | 0.116 | ||||||||
| T300-XM100AF-8-36 | ● | ● | ●● | ○ | UNF #8-36 | 0.164 | 0.168 | 36 | 0.846 | 3BX | 2.480 | 0.303 | 3 | 0.138 | ||||||
| T300-XM102AF-8-36 | ● | ● | UNF #8-36 | 0.164 | 0.168 | 36 | 0.846 | 3BX | 2.480 | 0.303 | 3 | 0.138 | ||||||||
| T300-XM100AF-10-32 | ● | ● | ●● | ○ | UNF #10-32 | 0.190 | 0.194 | 32 | 1.102 | 3BX | 2.756 | 0.350 | 3 | 0.161 | ||||||
| T300-XM100AF-10-32 | ● | ● | ● | UNF #10-32 | 0.190 | 0.194 | 32 | 1.102 | 3BX | 2.756 | 0.350 | 3 | 0.161 | |||||||
| T300-XM100AF-10-32 | ● | ● | UNF #10-32 | 0.190 | 0.194 | 32 | 1.102 | 3BX | 2.756 | 0.350 | 3 | 0.161 | ||||||||
| T300-XM102AF-10-32 | ● | ● | ●● | ○ | UNF #10-32 | 0.190 | 0.194 | 32 | 1.102 | 3BX | 2.756 | 0.350 | 3 | 0.161 | ||||||
| T300-XM102AF-10-32 | ● | ● | ● | UNF #10-32 | 0.190 | 0.194 | 32 | 1.102 | 3BX | 2.756 | 0.350 | 3 | 0.161 | |||||||
| T300-XM102AF-10-32 | ● | ● | UNF #10-32 | 0.190 | 0.194 | 32 | 1.102 | 3BX | 2.756 | 0.350 | 3 | 0.161 | ||||||||
| T300-XM102AF-12-28 | ● | ● | ● | UNF #12-28 | 0.216 | 0.220 | 28 | 1.220 | 3BX | 3.150 | 0.390 | 3 | 0.181 | |||||||
| T300-XM100AF-1/4 | ● | ● | ●● | ○ | UNF 1/4-28 | 0.250 | 0.255 | 28 | 0.984 | 3BX | 3.150 | 0.425 | 3 | 0.217 | ||||||
| T300-XM100AF-1/4 | ● | ● | ● | UNF 1/4-28 | 0.250 | 0.255 | 28 | 0.984 | 3BX | 3.150 | 0.425 | 3 | 0.217 | |||||||
| T300-XM100AF-1/4 | ● | ● | UNF 1/4-28 | 0.250 | 0.255 | 28 | 0.984 | 3BX | 3.150 | 0.425 | 3 | 0.217 | ||||||||
| T300-XM102AF-1/4 | ● | ● | ●● | ○ | UNF 1/4-28 | 0.250 | 0.255 | 28 | 0.984 | 3BX | 3.150 | 0.425 | 3 | 0.217 | ||||||
| T300-XM102AF-1/4 | ● | ● | ● | UNF 1/4-28 | 0.250 | 0.255 | 28 | 0.984 | 3BX | 3.150 | 0.425 | 3 | 0.217 | |||||||
| T300-XM102AF-1/4 | ● | ● | UNF 1/4-28 | 0.250 | 0.255 | 28 | 0.984 | 3BX | 3.150 | 0.425 | 3 | 0.217 | ||||||||
| T300-XM100AF-5/16 | ● | ● | ●● | ○ | UNF 5/16-24 | 0.313 | 0.318 | 24 | 1.339 | 3BX | 3.543 | 0.508 | 3 | 0.272 | ||||||
| T300-XM100AF-5/16 | ● | ● | ● | UNF 5/16-24 | 0.313 | 0.318 | 24 | 1.339 | 3BX | 3.543 | 0.508 | 3 | 0.272 | |||||||
| T300-XM100AF-5/16 | ● | ● | UNF 5/16-24 | 0.313 | 0.318 | 24 | 1.339 | 3BX | 3.543 | 0.508 | 3 | 0.272 | ||||||||
| T300-XM100AF-3/8 | ● | ● | ●● | ○ | UNF 3/8-24 | 0.375 | 0.381 | 24 | 1.476 | 3BX | 3.543 | 0.591 | 3 | 0.335 | ||||||
| T300-XM100AF-3/8 | ● | ● | ● | UNF 3/8-24 | 0.375 | 0.381 | 24 | 1.476 | 3BX | 3.543 | 0.591 | 3 | 0.335 | |||||||
| T300-XM100AF-3/8 | ● | ● | UNF 3/8-24 | 0.375 | 0.381 | 24 | 1.476 | 3BX | 3.543 | 0.591 | 3 | 0.335 | ||||||||
| T300-XM102AF-3/8 | ● | ● | ●● | ○ | UNF 3/8-24 | 0.375 | 0.381 | 24 | 1.476 | 3BX | 3.543 | 0.591 | 3 | 0.335 | ||||||
| T300-XM102AF-3/8 | ● | ● | UNF 3/8-24 | 0.375 | 0.381 | 24 | 1.476 | 3BX | 3.543 | 0.591 | 3 | 0.335 | ||||||||
| T300-XM101AF-7/16 | ● | ● | ●● | ○ | UNF 7/16-20 | 0.438 | 0.367 | 20 | 2.858 | 3BX | 3.937 | 0.591 | 3 | 0.390 | ||||||
| T300-XM101AF-7/16 | ● | ● | ● | UNF 7/16-20 | 0.438 | 0.367 | 20 | 2.858 | 3BX | 3.937 | 0.591 | 3 | 0.390 |
● = Первый выбор ○ = Хороший выбор
