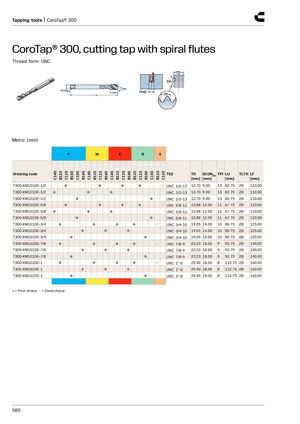

Инструмент для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик со спиральными канавками
Форма резьбы: UNC
Метрическая система (mm)
| Код заказа | Резьба | TDZ [mm] | TD [mm] | TPI | LU [mm] | TCTR | LF [mm] |
|---|---|---|---|---|---|---|---|
| T300-XM101DE-1/2 | UNC 1/2-13 | 12.70 | 9.00 | 13 | 82.75 | 2B | 110.00 |
| T300-XM101DE-1/2 | UNC 1/2-13 | 12.70 | 9.00 | 13 | 82.75 | 2B | 110.00 |
| T300-XM101DE-1/2 | UNC 1/2-13 | 12.70 | 9.00 | 13 | 82.75 | 2B | 110.00 |
| T300-XM101DE-5/8 | UNC 5/8-11 | 15.88 | 12.00 | 11 | 67.75 | 2B | 110.00 |
| T300-XM101DE-5/8 | UNC 5/8-11 | 15.88 | 12.00 | 11 | 67.75 | 2B | 110.00 |
| T300-XM101DE-5/8 | UNC 5/8-11 | 15.88 | 12.00 | 11 | 67.75 | 2B | 110.00 |
| T300-XM101DE-3/4 | UNC 3/4-10 | 19.05 | 14.00 | 10 | 80.75 | 2B | 125.00 |
| T300-XM101DE-3/4 | UNC 3/4-10 | 19.05 | 14.00 | 10 | 80.75 | 2B | 125.00 |
| T300-XM101DE-3/4 | UNC 3/4-10 | 19.05 | 14.00 | 10 | 80.75 | 2B | 125.00 |
| T300-XM101DE-7/8 | UNC 7/8-9 | 22.23 | 18.00 | 9 | 92.75 | 2B | 140.00 |
| T300-XM101DE-7/8 | UNC 7/8-9 | 22.23 | 18.00 | 9 | 92.75 | 2B | 140.00 |
| T300-XM101DE-7/8 | UNC 7/8-9 | 22.23 | 18.00 | 9 | 92.75 | 2B | 140.00 |
| T300-XM101DE-1 | UNC 1"-8 | 25.40 | 18.00 | 8 | 112.75 | 2B | 160.00 |
| T300-XM101DE-1 | UNC 1"-8 | 25.40 | 18.00 | 8 | 112.75 | 2B | 160.00 |
| T300-XM101DE-1 | UNC 1"-8 | 25.40 | 18.00 | 8 | 112.75 | 2B | 160.00 |
● = Первый выбор ○ = Хороший выбор
