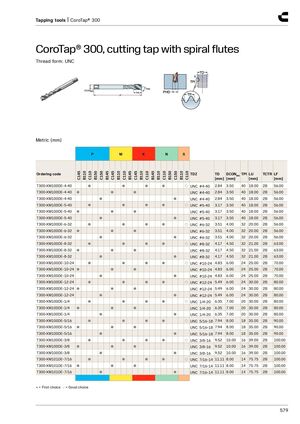

Инструмент для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик со спиральными канавками
Форма резьбы: UNC
Метрическая система (mm)
| Код заказа | Резьба | TDZ [mm] | TD [mm] | TPI | LU [mm] | TCTR | LF [mm] |
|---|---|---|---|---|---|---|---|
| T300-XM100DE-4-40 | UNC #4-40 | 2.84 | 3.50 | 40 | 18.00 | 2B | 56.00 |
| T300-XM100DE-4-40 | UNC #4-40 | 2.84 | 3.50 | 40 | 18.00 | 2B | 56.00 |
| T300-XM100DE-4-40 | UNC #4-40 | 2.84 | 3.50 | 40 | 18.00 | 2B | 56.00 |
| T300-XM100DE-5-40 | UNC #5-40 | 3.17 | 3.50 | 40 | 18.00 | 2B | 56.00 |
| T300-XM100DE-5-40 | UNC #5-40 | 3.17 | 3.50 | 40 | 18.00 | 2B | 56.00 |
| T300-XM100DE-5-40 | UNC #5-40 | 3.17 | 3.50 | 40 | 18.00 | 2B | 56.00 |
| T300-XM100DE-6-32 | UNC #6-32 | 3.51 | 4.00 | 32 | 20.00 | 2B | 56.00 |
| T300-XM100DE-6-32 | UNC #6-32 | 3.51 | 4.00 | 32 | 20.00 | 2B | 56.00 |
| T300-XM100DE-6-32 | UNC #6-32 | 3.51 | 4.00 | 32 | 20.00 | 2B | 56.00 |
| T300-XM100DE-8-32 | UNC #8-32 | 4.17 | 4.50 | 32 | 21.00 | 2B | 63.00 |
| T300-XM100DE-8-32 | UNC #8-32 | 4.17 | 4.50 | 32 | 21.00 | 2B | 63.00 |
| T300-XM100DE-8-32 | UNC #8-32 | 4.17 | 4.50 | 32 | 21.00 | 2B | 63.00 |
| T300-XM100DE-10-24 | UNC #10-24 | 4.83 | 6.00 | 24 | 25.00 | 2B | 70.00 |
| T300-XM100DE-10-24 | UNC #10-24 | 4.83 | 6.00 | 24 | 25.00 | 2B | 70.00 |
| T300-XM100DE-10-24 | UNC #10-24 | 4.83 | 6.00 | 24 | 25.00 | 2B | 70.00 |
| T300-XM100DE-12-24 | UNC #12-24 | 5.49 | 6.00 | 24 | 30.00 | 2B | 80.00 |
| T300-XM100DE-12-24 | UNC #12-24 | 5.49 | 6.00 | 24 | 30.00 | 2B | 80.00 |
| T300-XM100DE-12-24 | UNC #12-24 | 5.49 | 6.00 | 24 | 30.00 | 2B | 80.00 |
| T300-XM100DE-1/4 | UNC 1/4-20 | 6.35 | 7.00 | 20 | 30.00 | 2B | 80.00 |
| T300-XM100DE-1/4 | UNC 1/4-20 | 6.35 | 7.00 | 20 | 30.00 | 2B | 80.00 |
| T300-XM100DE-1/4 | UNC 1/4-20 | 6.35 | 7.00 | 20 | 30.00 | 2B | 80.00 |
| T300-XM100DE-5/16 | UNC 5/16-18 | 7.94 | 8.00 | 18 | 35.00 | 2B | 90.00 |
| T300-XM100DE-5/16 | UNC 5/16-18 | 7.94 | 8.00 | 18 | 35.00 | 2B | 90.00 |
| T300-XM100DE-5/16 | UNC 5/16-18 | 7.94 | 8.00 | 18 | 35.00 | 2B | 90.00 |
| T300-XM100DE-3/8 | UNC 3/8-16 | 9.52 | 10.00 | 16 | 39.00 | 2B | 100.00 |
| T300-XM100DE-3/8 | UNC 3/8-16 | 9.52 | 10.00 | 16 | 39.00 | 2B | 100.00 |
| T300-XM100DE-3/8 | UNC 3/8-16 | 9.52 | 10.00 | 16 | 39.00 | 2B | 100.00 |
| T300-XM101DE-7/16 | UNC 7/16-14 | 11.11 | 8.00 | 14 | 75.75 | 2B | 100.00 |
| T300-XM101DE-7/16 | UNC 7/16-14 | 11.11 | 8.00 | 14 | 75.75 | 2B | 100.00 |
| T300-XM101DE-7/16 | UNC 7/16-14 | 11.11 | 8.00 | 14 | 75.75 | 2B | 100.00 |
Отметки классов сплава по группам материалов (P/M/K/N/S) с покрытиями B110, B150, B145, C145, C110, C150 сохранены в исходной раскладке, приведены в PDF в виде маркеров выбора.
● = Первый выбор ○ = Хороший выбор
